ZZE112R-AGMDKW (1999)

Toyota Corolla Hb/Lb

Production Oct 1999 - Jul 2001
Engine 3ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9910- )3ZZFE,4ZZFE

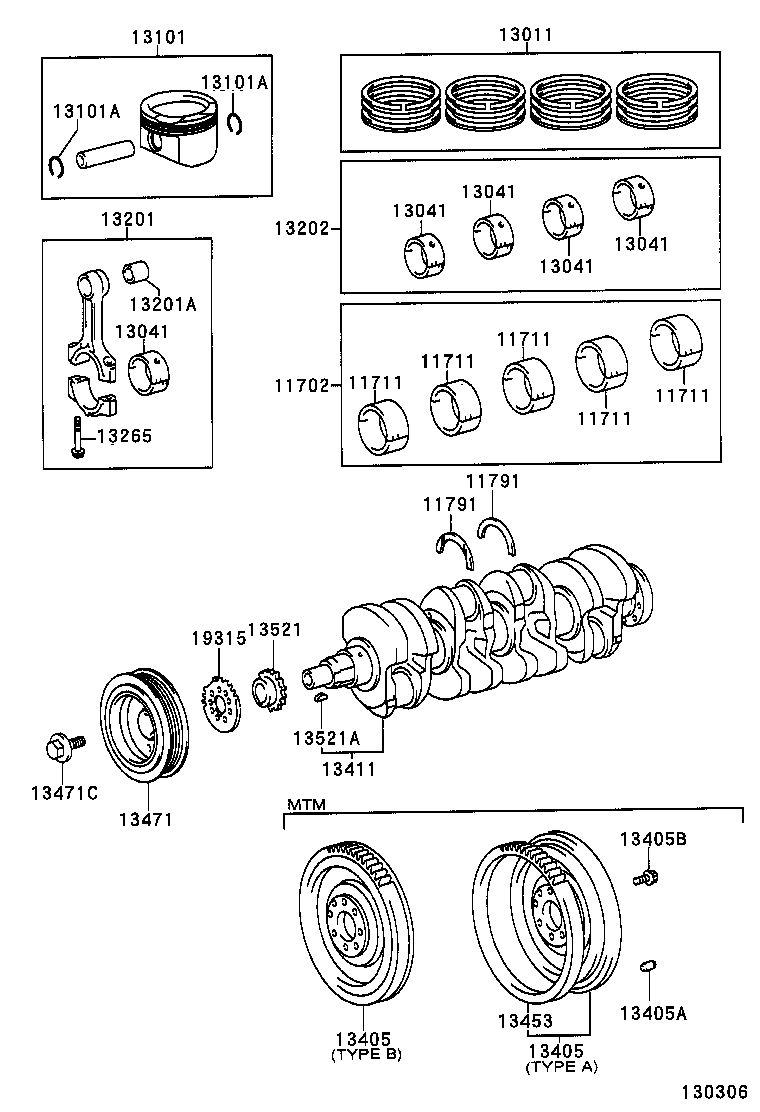

Click highlighted areas on diagram

diagram 11702 11711 11711 11711 11711 11711 11791 11791 13011 13041 13041 13041 13041 13041 13101 13101A 13101A 13201 13201A 13202 13265 13405 13405 13405A 13405B 13411 13453 13471 13471C 13521 13521A 19315
Part # Description Qty Price
13101 - PISTON SUB-ASSY, W/PIN
13101-22080

3ZZFE..ZZE112..JPP

STD

 4
13101-0D020

3ZZFE..ZZE112

STD

 4
