ZZE112L-DLMNKW (1999)

Toyota Corolla Hb/Lb

Production Nov 1999 - Nov 2001
Engine 3ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9911- )UKP..LHD

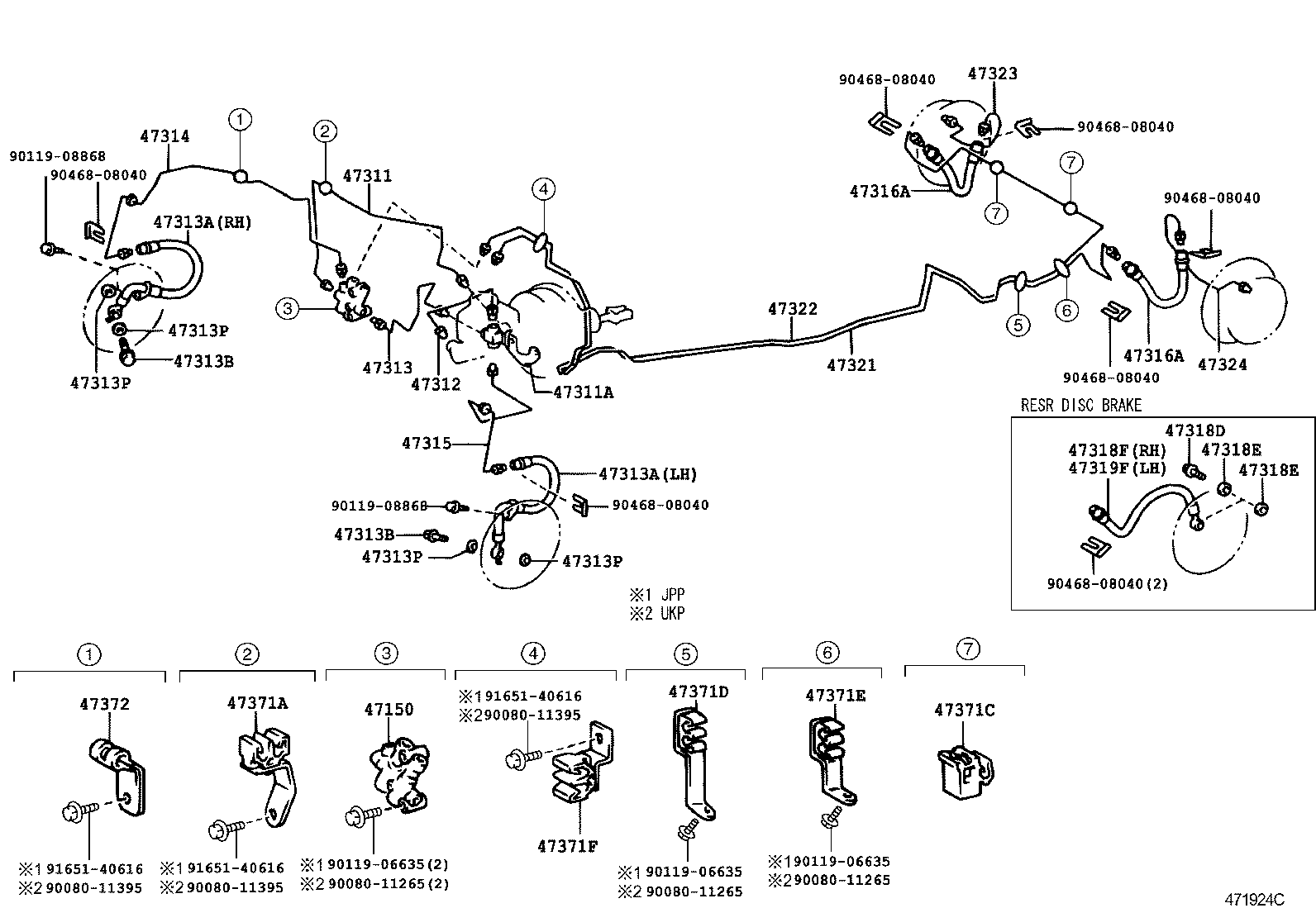

Click highlighted areas on diagram

diagram 47150 47311 47311A 47312 47313 47313A 47313A 47313B 47313B 47313P 47313P 47313P 47313P 47314 47315 47316A 47316A 47318D 47318E 47318E 47318F 47319F 47321 47322 47323 47324 47371A 47371C 47371D 47371E 47371F 47372 9008011265 9008011265 9008011265 9008011395 9008011395 9008011395 9011906635 9011906635 9011906635 9011908868 9011908868 9046808040 9046808040 9046808040 9046808040 9046808040 9046808040 9046808040 9165140616 9165140616 9165140616
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-42040

WZE110,ZZE11#..UKP..(4FC,5F)

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-02130

WZE110,ZZE11#..UKP..LHD..(4FC,5F)

 1
47311-02150

ZZE11#..UKP..LHD

W(ABS)

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
47391-02070

WZE110,ZZE11#..UKP..LHD..(4FC,5F)

 1
47391-02080

WZE110,ZZE11#..UKP..LHD

W(ABS)

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-02050

WZE110,ZZE11#..UKP..LHD..(4FC,5F)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-02130

ZZE11#..UKP..LHD

W(ABS)

 1
47313-02110

WZE110,ZZE11#..UKP..LHD..(4FC,5F)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90080-94A69

WZE110,ZZE11#..UKP

LH

 1
90080-94A68

WZE110,ZZE11#..UKP

RH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90080-94A69

WZE110,ZZE11#..UKP

LH

 1
90080-94A68

WZE110,ZZE11#..UKP

RH

 1
47314 - TUBE, FRONT BRAKE, NO.4
47314-02140

WZE110,ZZE11#..UKP..LHD..(4FC,5F)

 1
47314-02150

ZZE11#..UKP..LHD

W(ABS)

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-02120

WZE110,ZZE11#..UKP..LHD

W(ABS)

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90080-94A67

WZE110,ZZE11#..UKP..(4FC,5F)

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90080-94A67

WZE110,ZZE11#..UKP..(4FC,5F)

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10042

WZE110,ZZE11#..UKP

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-24010

WZE110,ZZE11#..UKP

 4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-24010

WZE110,ZZE11#..UKP

 4
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02B88

WZE110,ZZE11#..UKP

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02B89

WZE110,ZZE11#..UKP

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-02090

WZE110,ZZE11#..UKP..LHD

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-02090

WZE110,ZZE11#..UKP..LHD

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-02050

WZE110,ZZE11#..UKP..(4FC,5F)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-02050

WZE110,ZZE11#..UKP..(4FC,5F)

 1
Common parts
90080-11265
90080-11395
90119-06635
90119-08868
90468-08040
91651-40616

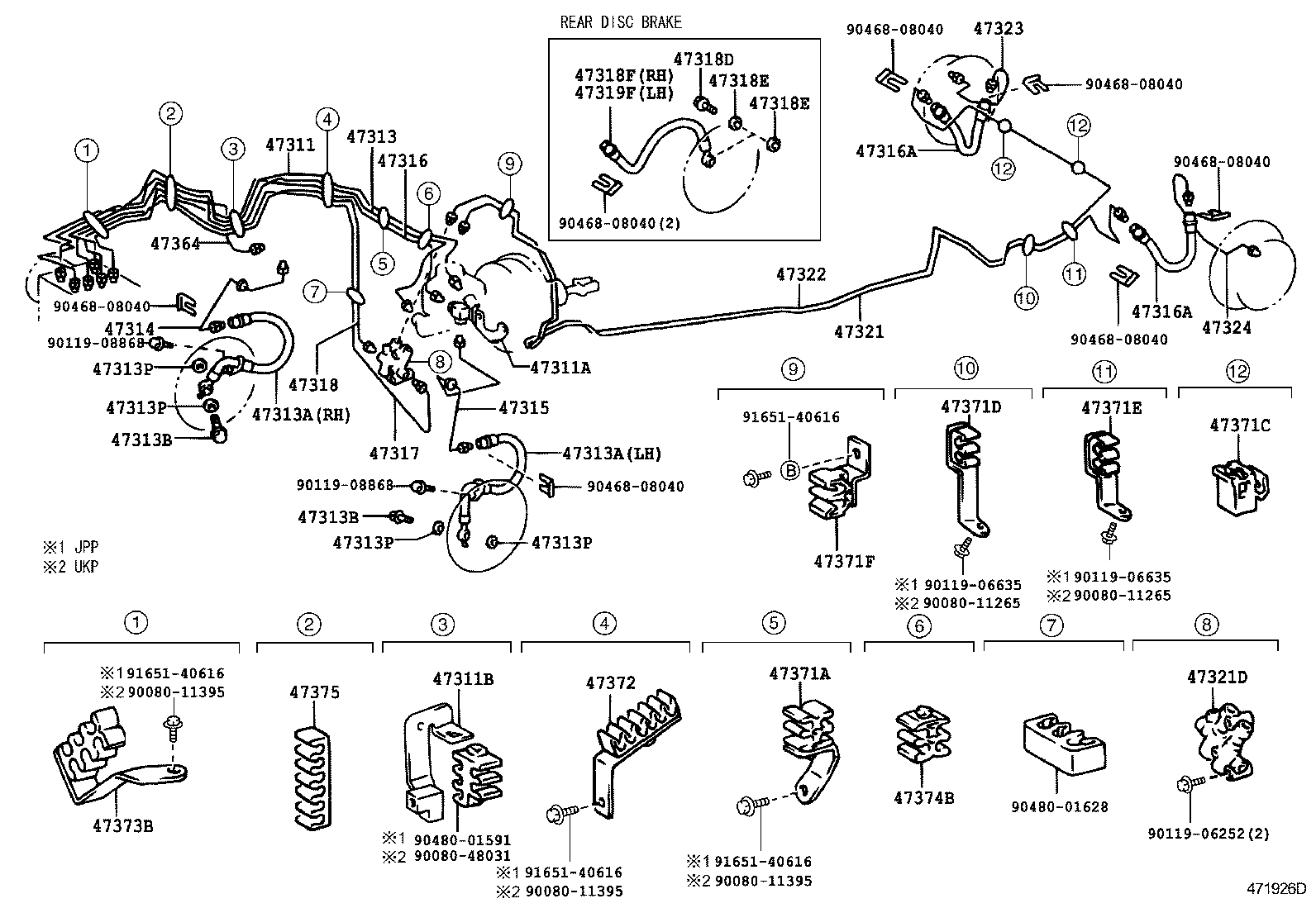

ILLUST NO. 1 OF 2(9911- )UKP..LHD

Click highlighted areas on diagram

W(ABS)

diagram 47311 47311A 47311B 47313 47313A 47313A 47313B 47313B 47313P 47313P 47313P 47313P 47314 47315 47316 47316A 47316A 47317 47318 47318D 47318E 47318E 47318F 47319F 47321 47321D 47322 47323 47324 47364 47371A 47371C 47371D 47371E 47371F 47372 47373B 47374B 47375 9008011265 9008011265 9008011395 9008011395 9008011395 9008048031 9011906252 9011906635 9011906635 9011908868 9011908868 9046808040 9046808040 9046808040 9046808040 9046808040 9046808040 9046808040 9048001591 9048001628 9165140616 9165140616 9165140616 9165140616
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-02130

WZE110,ZZE11#..UKP..LHD..(4FC,5F)

 1
47311-02150

ZZE11#..UKP..LHD

W(ABS)

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
47391-02070

WZE110,ZZE11#..UKP..LHD..(4FC,5F)

 1
47391-02080

WZE110,ZZE11#..UKP..LHD

W(ABS)

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10707

ZZE11#..UKP..LHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-02130

ZZE11#..UKP..LHD

W(ABS)

 1
47313-02110

WZE110,ZZE11#..UKP..LHD..(4FC,5F)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90080-94A69

WZE110,ZZE11#..UKP

LH

 1
90080-94A68

WZE110,ZZE11#..UKP

RH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90080-94A69

WZE110,ZZE11#..UKP

LH

 1
90080-94A68

WZE110,ZZE11#..UKP

RH

 1
47314 - TUBE, FRONT BRAKE, NO.4
47314-02140

WZE110,ZZE11#..UKP..LHD..(4FC,5F)

 1
47314-02150

ZZE11#..UKP..LHD

W(ABS)

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-02120

WZE110,ZZE11#..UKP..LHD

W(ABS)

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-02080

ZZE11#..UKP..LHD

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90080-94A67

WZE110,ZZE11#..UKP..(4FC,5F)

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90080-94A67

WZE110,ZZE11#..UKP..(4FC,5F)

 2
47317 - TUBE, FRONT BRAKE, NO.7
47317-02080

ZZE11#..UKP..LHD

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-02080

ZZE11#..UKP..LHD

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10042

WZE110,ZZE11#..UKP

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-24010

WZE110,ZZE11#..UKP

 4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-24010

WZE110,ZZE11#..UKP

 4
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02B88

WZE110,ZZE11#..UKP

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02B89

WZE110,ZZE11#..UKP

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-02090

WZE110,ZZE11#..UKP..LHD

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10640

WZE110,ZZE11#..UKP

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-02090

WZE110,ZZE11#..UKP..LHD

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-02050

WZE110,ZZE11#..UKP..(4FC,5F)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-02050

WZE110,ZZE11#..UKP..(4FC,5F)

 1
47364 - TUBE, FRONT BRAKE, NO.13
47364-02060

ZZE11#..UKP..LHD

 1
Common parts
90080-11265
90080-11395
90080-48031
90119-06252
90119-06635
90119-08868
90468-08040
90480-01591
90480-01628
91651-40616
