ZZE112L-ALPNKW (1999)

Toyota Corolla Hb/Lb

Production Oct 1999 - Sep 2001
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

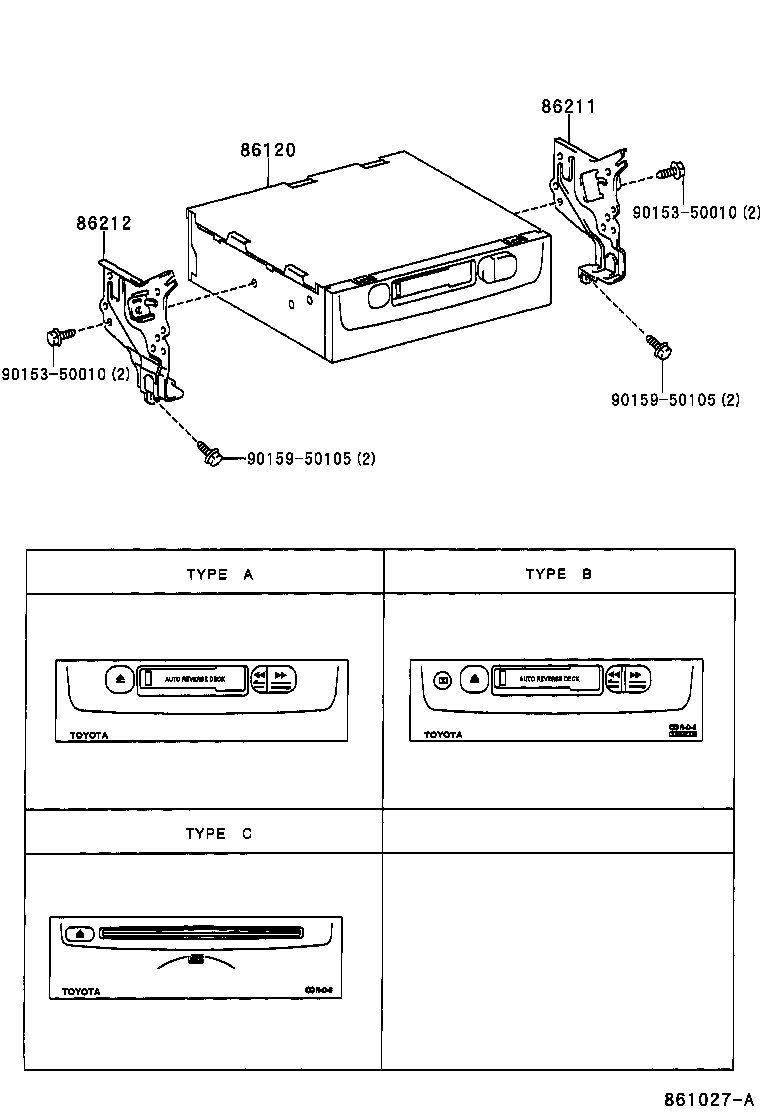

ILLUST NO. 1 OF 2(9910- )CDE110,ZZE11#..JPP ; (0001- )WZE110..HB

Click highlighted areas on diagram

diagram 86120 86211 86212 9015350010 9015350010 9015950105 9015950105
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-1A130

CDE110,WZE110,ZZE11#..JPP

MATSUSHITA,ID=53801,TYPE C:REFER TO ILLUSTRATION

 1
86211 - BRACKET, RADIO, NO.1
86211-12350

CDE110,WZE110,ZZE11#..JPP

 1
86212 - BRACKET, RADIO, NO.2
86212-12330

CDE110,WZE110,ZZE11#..JPP

 1
Common parts
90153-50010
90159-50105
