ZZE111R-DLMDKW (1999)

Toyota Corolla Hb/Lb

Production Nov 1999 - Nov 2001
Engine 4ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

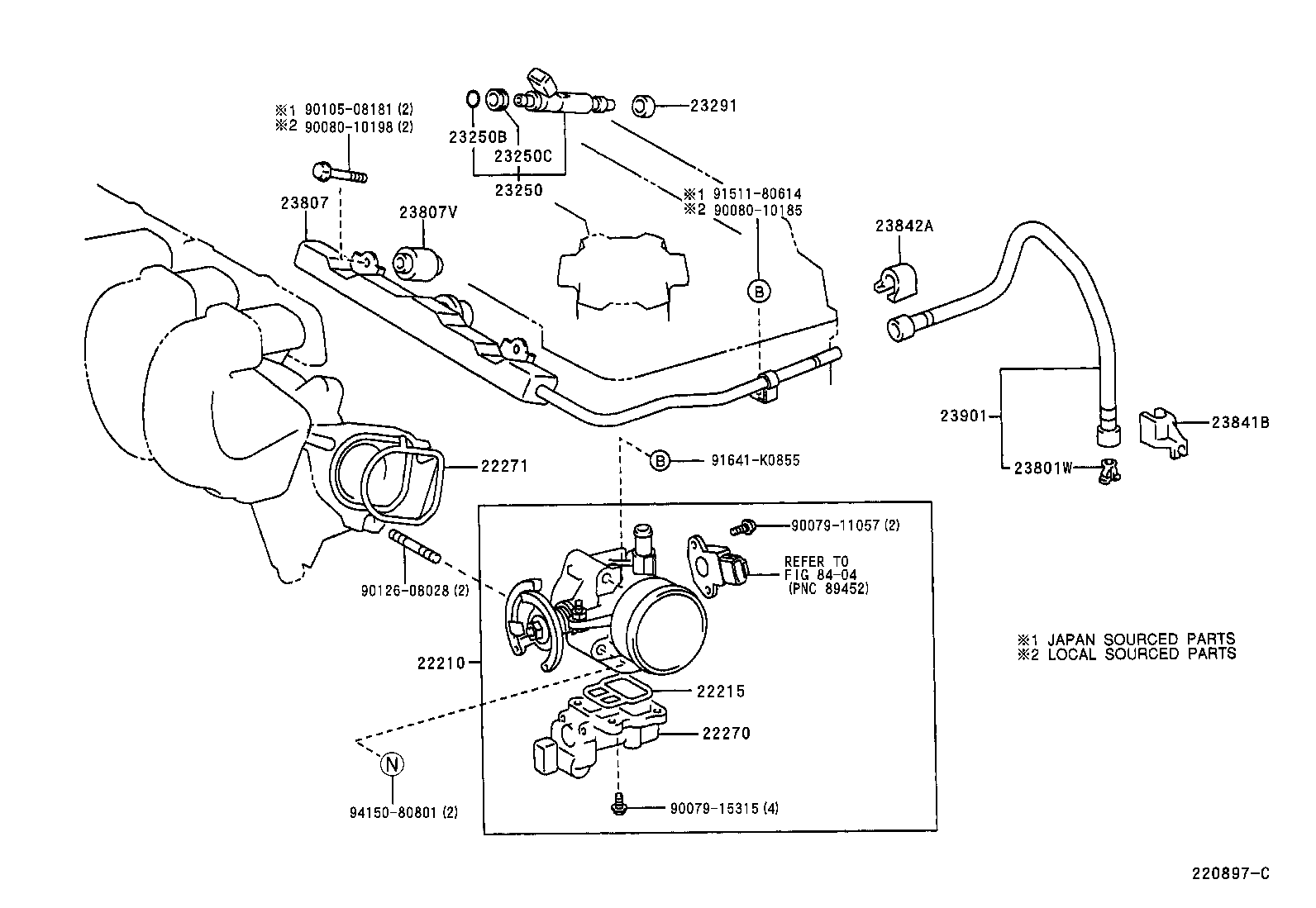

ILLUST NO. 1 OF 2(9911- )3ZZFE,4ZZFE..UKP

Click highlighted areas on diagram

diagram 22210 22215 22270 22271 23250 23250B 23250C 23291 23801W 23807 23807V 23841B 23842A 23901 8404 9007911057 9007915315 9008010185 9008010198 9010508181 9012608028 9151180614 91641K0855 9415080801
Part # Description Qty Price
22210 - BODY ASSY, THROTTLE
22210-22050

4ZZFE..ZZE111..UKP

(J)

 1
22210-0D020

4ZZFE..ZZE111..UKP

(L)

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-22010

3ZZFE,4ZZFE..ZZE11#..UKP

(J)

 4
23291-0D010

3ZZFE,4ZZFE..ZZE11#..UKP

(L)

 4
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90080-56052

3ZZFE,4ZZFE..ZZE11#..UKP

(L)

 2
90561-08055

3ZZFE,4ZZFE..ZZE11#..UKP

(J)

 2
Common parts
90079-11057
90079-15315
90080-10185
90080-10198
90105-08181
90126-08028
91511-80614
91641-K0855
94150-80801
Linked diagrams
8404

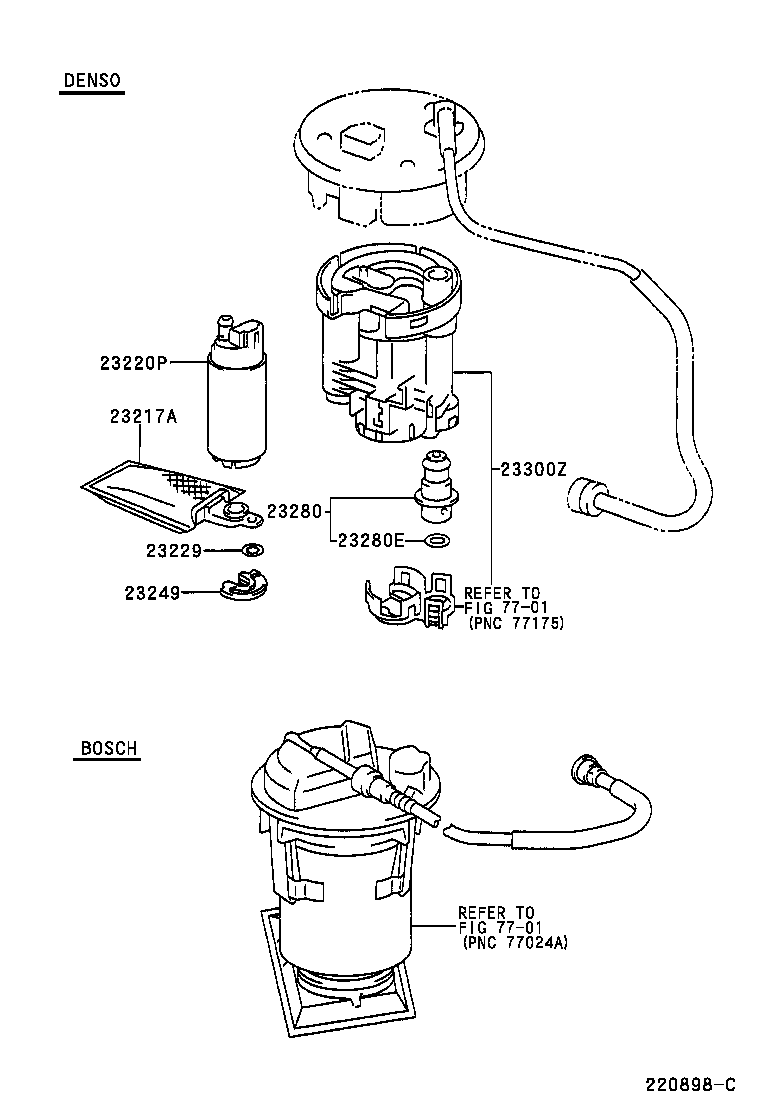

ILLUST NO. 2 OF 2(9911- )3ZZFE,4ZZFE..UKP

Click highlighted areas on diagram

diagram 23217A 23220P 23229 23249 23280 23280E 23300Z 7701 7701
Part # Description Qty Price
Linked diagrams
7701
