ZZE111L-DLMDKW (1999)

Toyota Corolla Hb/Lb

Production Nov 1999 - Nov 2001
Engine 4ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9911- )ZZE11#..UKP

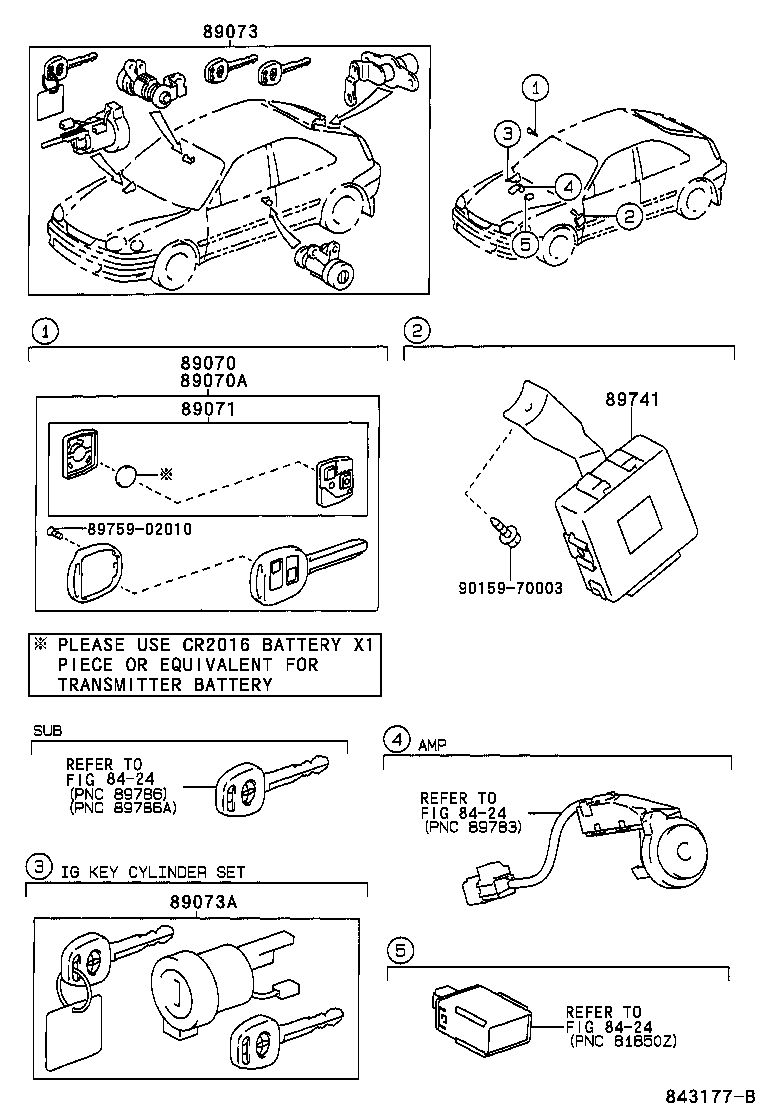

Click highlighted areas on diagram

diagram 8424 8424 8424 89070 89070A 89071 89073 89073A 89741 8975902010 9015970003
Part # Description Qty Price
89070 - TRANSMITTER ASSY, DOOR CONTROL
89070-02020

ZZE11#..UKP

 1
89070-0D020

ZZE11#..UKP

 1
89070A - TRANSMITTER, DOOR CONTROL (CUT KEY)
89070-0D030

ZZE11#..UKP

 1
89070-02030

ZZE11#..UKP

 1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-0D010

ZZE11#..UKP

 2
89071-02010

ZZE11#..UKP

 2
89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
89073-02020

ZZE11#..UKP

 1
89073-02021

ZZE11#..UKP

 1
89073A - IGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY)
89073-02010

WZE110,ZZE11#..UKP

 1
89073-02011

WZE110,ZZE11#..UKP

 1
89741 - RECEIVER, DOOR CONTROL
89741-02041

WZE110,ZZE11#..UKP..LHD

 1
89741-02040

WZE110,ZZE11#..UKP..LHD

 1
Common parts
89759-02010
90159-70003
Linked diagrams
8424
