ZZE111L-AGMDKW (1999)

Toyota Corolla Hb/Lb

Production Oct 1999 - Jul 2001

Engine 4ZZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9910- )HB

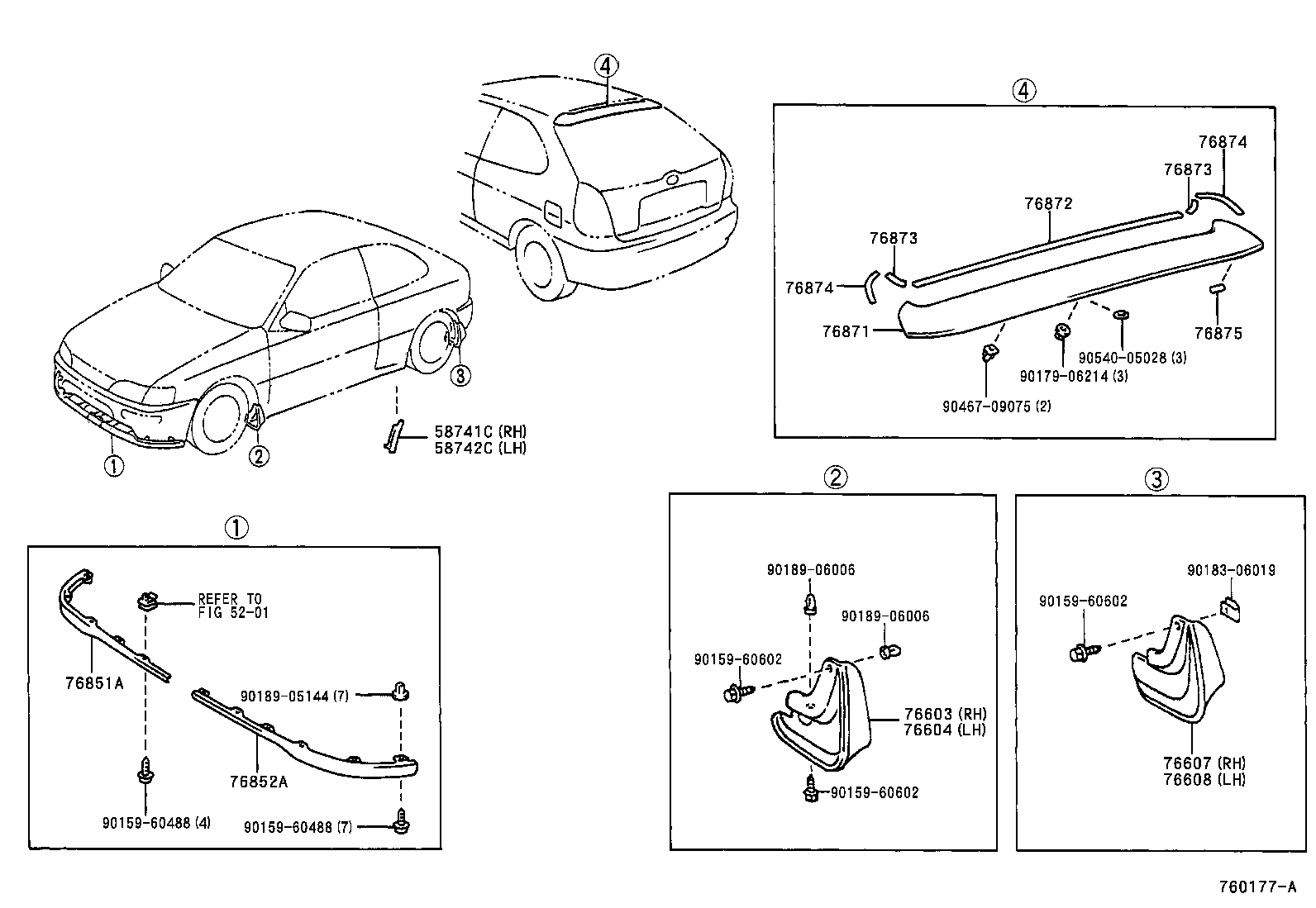

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
58741C - PROTECTOR, QUARTER PANEL, RH
58741-12120	CDE110,WZE110,ZZE11#..HB	10/1999 - 07/2001	1
58742C - PROTECTOR, QUARTER PANEL, LH
58742-12110	CDE110,WZE110,ZZE11#..HB	10/1999 - 07/2001	1
76871 - SPOILER, REAR
76871-12260	CDE110,WZE110,ZZE11#..HB	10/1999 - 07/2001	1
76872 - PROTECTOR, REAR SPOILER, NO.1
76872-12160	CDE110,WZE110,ZZE11#..HB	10/1999 - 07/2001	1
76873 - PROTECTOR, REAR SPOILER, NO.2
76873-12110	CDE110,WZE110,ZZE11#..HB	10/1999 - 07/2001	2
76873 - PROTECTOR, REAR SPOILER, NO.2
76873-12110	CDE110,WZE110,ZZE11#..HB	10/1999 - 07/2001	2
76874 - PROTECTOR, REAR SPOILER, NO.3
76874-12120	CDE110,WZE110,ZZE11#..HB..(STD,TERRA)	10/1999 - 07/2001	2
76874 - PROTECTOR, REAR SPOILER, NO.3
76874-12120	CDE110,WZE110,ZZE11#..HB..(STD,TERRA)	10/1999 - 07/2001	2
76875 - PROTECTOR, REAR SPOILER, NO.4
76875-12100	CDE110,WZE110,ZZE11#..HB	10/1999 - 07/2001	6
Common parts
90159-60488
90159-60602
90179-06214
90183-06019
90189-05144
90189-06006
90467-09075
90540-05028
Linked diagrams
5201
