WZE110R-DLMDSW (1999)

Toyota Corolla Hb/Lb

Production Dec 1999 - Nov 2001
Engine 1WZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

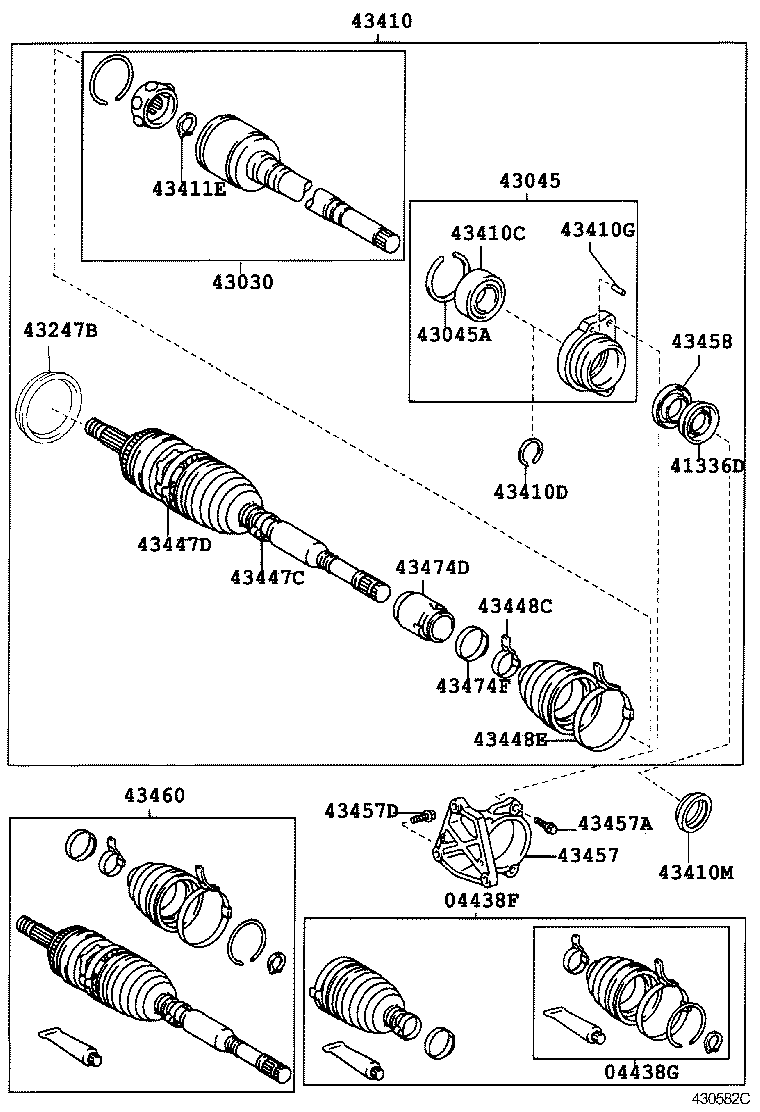

(9912- )WZE110

Click highlighted areas on diagram

RH

diagram 04438F 04438G 41336D 43030 43045 43045A 43247B 43410 43410C 43410D 43410G 43410M 43411E 43447C 43447D 43448C 43448E 43457 43457A 43457D 43458 43460 43474D 43474F
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04438-12440

WZE110

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438-12430

WZE110

 1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-12050

WZE110

 1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43030-12050

WZE110

 1
43045 - CASE SUB ASSY, DRIVE SHAFT BEARING
43045-20010

WZE110

 1
43045A - RING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)
96153-00680

WZE110

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-12460

WZE110..LB

 1
43410-12470

WZE110..LB

W(ABS)

 1
43410C - BEARING (FOR FRONT DRIVE SHAFT)
90363-36004

WZE110

 1
43410D - RING, SHAFT SNAP (FOR FRONT DRIVE SHAFT)
90520-33008

WZE110

 1
43410G - PIN, STRAIGHT (FOR FRONT DRIVE SHAFT)
90250-06003

CDE110,WZE110

 1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
SU001-00426

WZE110

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-12020

WZE110

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-22030

WZE110

ID=32.1

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12010

WZE110

ID=88.5

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
90949-01804

WZE110

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42346-12010

WZE110

 1
43457 - BRACKET, DRIVE SHAFT BEARING
43457-12040

WZE110

 1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90105-10285

WZE110

*10-1.25PX22-19.5

 2
43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
90080-10235

WZE110

 3
43458 - COVER, FRONT DRIVE SHAFT DUST
43458-20011

WZE110

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43470-19895

WZE110..LB

 1
43470-80001

WZE110..LB

W(ABS)

 1
43474D - DAMPER, FRONT DRIVE SHAFT, RH
43474-12060

WZE110

 1
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-12020

WZE110

 1

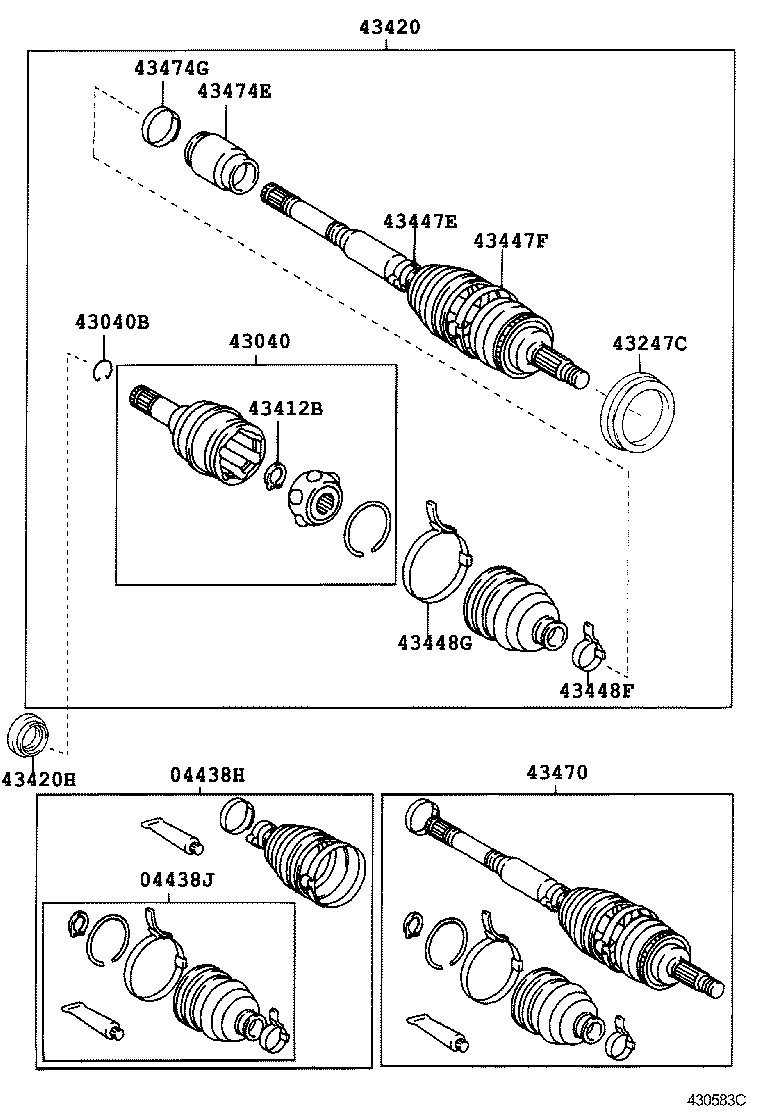

(9912- )WZE110

Click highlighted areas on diagram

LH

diagram 04438H 04438J 43040 43040B 43247C 43412B 43420 43420H 43447E 43447F 43448F 43448G 43470 43474E 43474G
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04438-12440

WZE110

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-12430

WZE110

 1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-12040

WZE110

 1
43040B - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT LH)
90521-27005

WZE110

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-12020

WZE110

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-12300

WZE110..LB

 1
43420-12400

WZE110..LB

W(ABS)

 1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
SU001-00425

WZE110

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-22030

WZE110

ID=32.1

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-12010

WZE110

ID=88.5

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01804

WZE110

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42346-12010

WZE110

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-80001

WZE110..LB

W(ABS)

 1
43470-19895

WZE110..LB

 1
43474E - DAMPER, FRONT DRIVE SHAFT, LH
43474-12060

WZE110

 1
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-12020

WZE110

 1
