WZE110R-DLMDSW (1999)
Toyota Corolla Hb/Lb
Production
Dec 1999
-
Nov 2001
Engine
1WZ
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

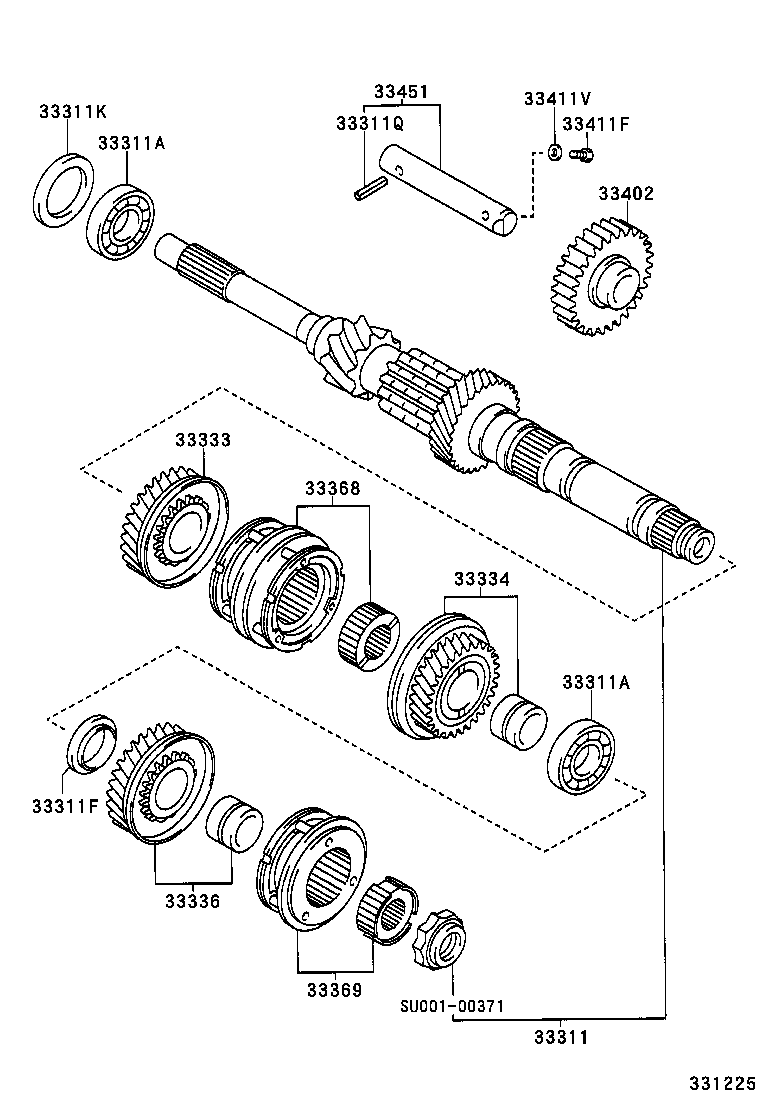

ILLUST NO. 1 OF 2(9912- )WZE110
Click highlighted areas on diagram
BE-3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33311 - SHAFT, INPUT | ||||
| SU001-00362 |
WZE110 |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| SU001-00363 |
WZE110 |
2 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| SU001-00363 |
WZE110 |
2 | ||
| 33311F - SPACER (FOR INPUT SHAFT) | ||||
| SU001-00368 |
WZE110 |
1 | ||
| 33311K - SHIM (FOR INPUT SHAFT REAR BEARING) | ||||
| SU001-00364 |
WZE110 T=0.7 |
1 | ||
| 33311Q - PIN, SLOTTED SPRING (FOR INPUT SHAFT) | ||||
| SU001-00376 |
WZE110 |
1 | ||
| 33333 - GEAR, 3RD | ||||
| SU001-00365 |
WZE110 |
1 | ||
| 33334 - GEAR, 4TH | ||||
| SU001-00367 |
WZE110 |
1 | ||
| 33336 - GEAR, 5TH | ||||
| SU001-00369 |
WZE110 |
1 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| SU001-00366 |
WZE110 |
1 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| SU001-00370 |
WZE110 |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| SU001-00372 |
WZE110 |
1 | ||
| 33411F - BOLT(FOR COUNTER GEAR SHAFT SETTING) | ||||
| SU001-00375 |
WZE110 |
1 | ||
| 33411V - WASHER, PLATE(FOR COUNTER GEAR SHAFT) | ||||
| SU001-00374 |
WZE110 |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| SU001-00373 |
WZE110 |
1 | ||
| Common parts | ||||
| SU001-00371 | ||||

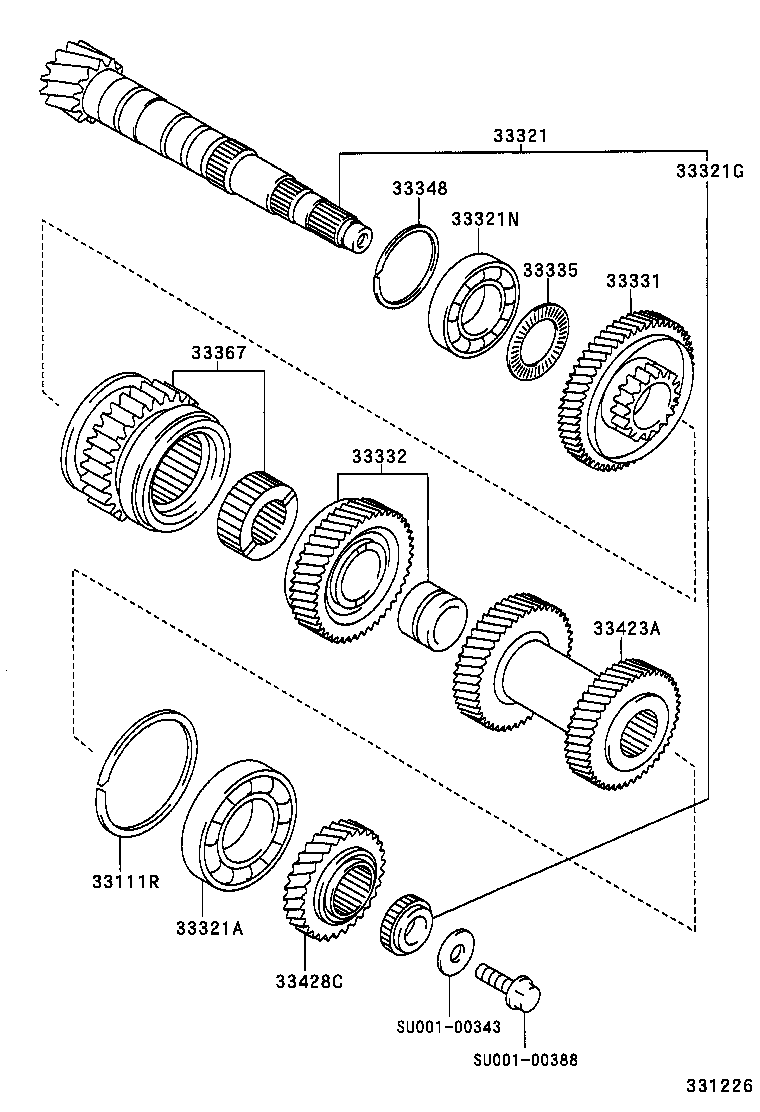

ILLUST NO. 2 OF 2(9912- )WZE110
Click highlighted areas on diagram
BE-3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111R - RING, HOLE SNAP(FOR OUTPUT SHAFT REAR BEARING) | ||||
| SU001-00386 |
WZE110 |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| SU001-00487 |
WZE110 |
1 | ||
| SU001-00377 |
WZE110 |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| SU001-00385 |
WZE110 |
1 | ||
| 33321N - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| SU001-00378 |
WZE110 |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| SU001-00381 |
WZE110 |
1 | ||
| 33332 - GEAR, 2ND | ||||
| SU001-00476 |
WZE110 |
1 | ||
| 33335 - GEAR, 1ST | ||||
| SU001-00380 |
WZE110 |
1 | ||
| 33348 - WASHER, 1ST GEAR THRUST | ||||
| SU001-00379 |
WZE110 |
1 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| SU001-00382 |
WZE110 |
1 | ||
| 33423A - GEAR, 3RD DRIVEN | ||||
| SU001-00488 |
WZE110 |
1 | ||
| SU001-00384 |
WZE110 |
1 | ||
| 33428C - GEAR, 5TH DRIVEN | ||||
| SU001-00387 |
WZE110 |
1 | ||
| Common parts | ||||
| SU001-00343 | ||||
| SU001-00388 | ||||
