WZE110R-DLMDSW (1999)

Toyota Corolla Hb/Lb

Production Dec 1999 - Nov 2001
Engine 1WZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9912- )1WZ

Click highlighted areas on diagram

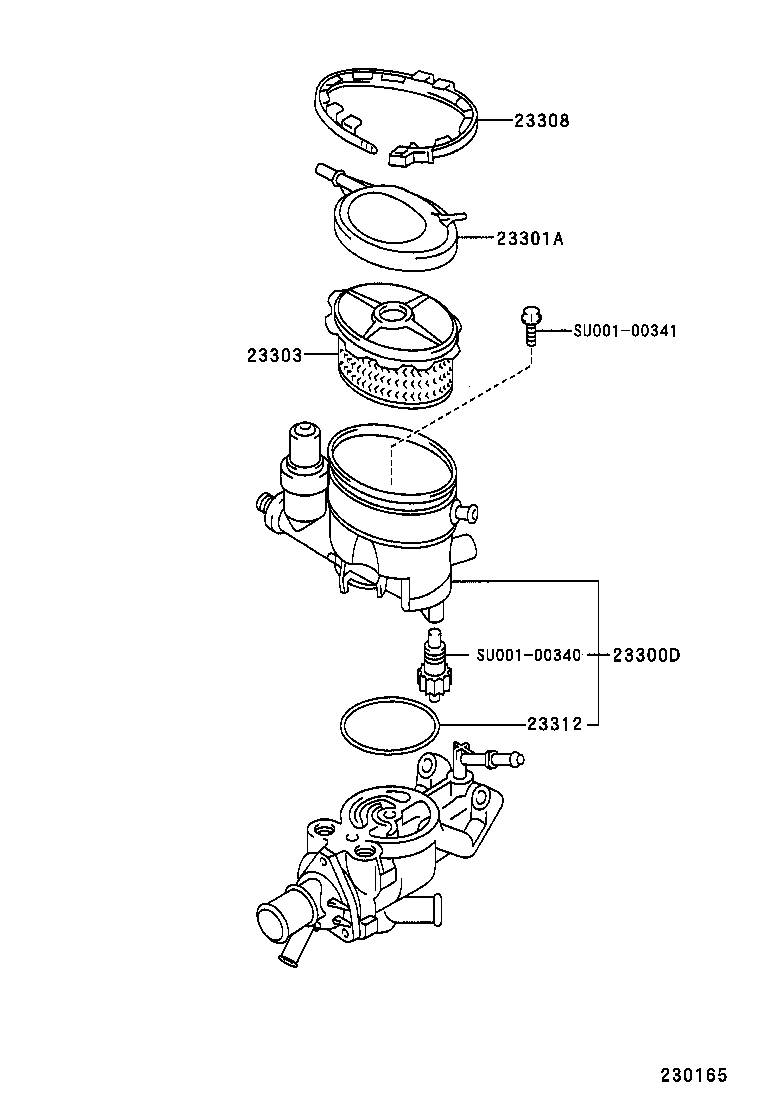

diagram 23300D 23301A 23303 23308 23312 SU00100340 SU00100341
Part # Description Qty Price
23300D - FILTER ASSY, FUEL(FOR DIESEL)
SU001-00335

1WZ..WZE110

 1
23301A - CAP ASSY, FUEL FILTER
SU001-00339

1WZ..WZE110

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
SU001-00468

1WZ..WZE110

 1
23308 - RING SUB-ASSY, CLAMPING
SU001-00338

1WZ..WZE110

 1
23312 - GASKET, FILTER BOWL
SU001-00337

1WZ..WZE110

 1
Common parts
SU001-00340
SU001-00341
