WZE110R-DLMDSW (1999)
Toyota Corolla Hb/Lb
Production
Dec 1999
-
Nov 2001
Engine
1WZ
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9912- )1WZ

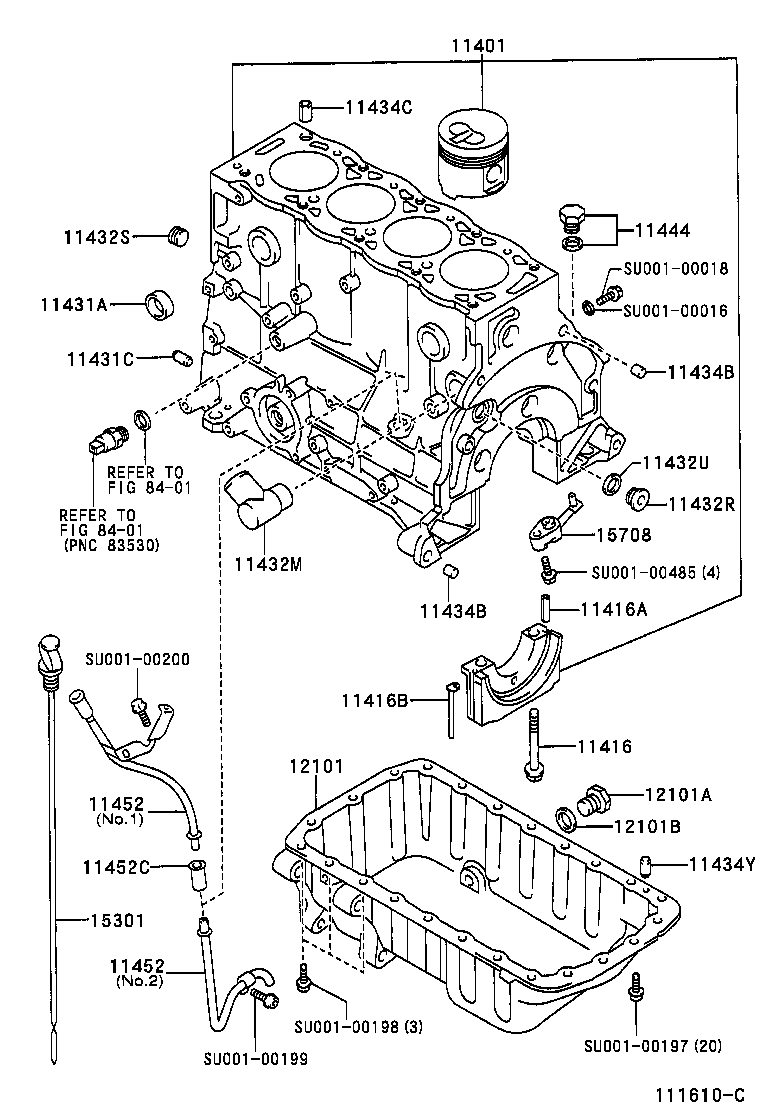

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| SU001-00002 |
1WZ..WZE110 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| SU001-00011 |
1WZ..WZE110 |
10 | ||
| 11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET) | ||||
| SU001-00009 |
1WZ..WZE110 |
2 | ||
| 11416B - SEAL, BEARING CAP | ||||
| SU001-00010 |
1WZ..WZE110 |
2 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| SU001-00006 |
1WZ..WZE110 OD=28.5 |
11 | ||
| SU001-00004 |
1WZ..WZE110 OD=27.0 |
11 | ||
| SU001-00005 |
1WZ..WZE110 OD=27.5 |
11 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| SU001-00007 |
1WZ..WZE110 |
4 | ||
| 11432M - UNION(FOR CYLINDER BLOCK) | ||||
| SU001-00008 |
1WZ..WZE110 |
1 | ||
| 11432R - PLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK) | ||||
| SU001-00013 |
1WZ..WZE110 |
2 | ||
| 11432S - PLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR CYLINDER BLOCK) | ||||
| SU001-00015 |
1WZ..WZE110 |
1 | ||
| 11432U - GASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK) | ||||
| SU001-00014 |
1WZ..WZE110 |
1 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| SU001-00465 |
1WZ..WZE110 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| SU001-00465 |
1WZ..WZE110 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| SU001-00019 |
1WZ..WZE110 |
1 | ||
| 11434Y - PIN, STRAIGHT(FOR OIL PAN) | ||||
| SU001-00189 |
1WZ..WZE110 |
1 | ||
| 11444 - PLUG, HOLE | ||||
| SU001-00483 |
1WZ..WZE110 |
1 | ||
| SU001-00477 |
1WZ..WZE110 |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| SU001-00190 |
1WZ..WZE110 NO.1 |
1 | ||
| 12142-0X010 |
1WZ..WZE110 NO.2 |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| SU001-00190 |
1WZ..WZE110 NO.1 |
1 | ||
| 12142-0X010 |
1WZ..WZE110 NO.2 |
1 | ||
| 11452C - UNION(FOR OIL LEVEL GAGE GUIDE) | ||||
| SU001-00012 |
1WZ..WZE110 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12111-0X010 |
1WZ..WZE110 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| SU001-00187 |
1WZ..WZE110 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| SU001-00188 |
1WZ..WZE110 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-0X010 |
1WZ..WZE110 |
1 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| SU001-00456 |
1WZ..WZE110 |
4 | ||
| Common parts | ||||
| SU001-00016 | ||||
| SU001-00018 | ||||
| SU001-00197 | ||||
| SU001-00198 | ||||
| SU001-00199 | ||||
| SU001-00200 | ||||
| SU001-00485 | ||||
| Linked diagrams | ||||
| 8401 | ||||
