WZE110L-DLMNSW (1999)

Toyota Corolla Hb/Lb

Production Dec 1999 - Nov 2001
Engine 1WZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9912- )1WZ

Click highlighted areas on diagram

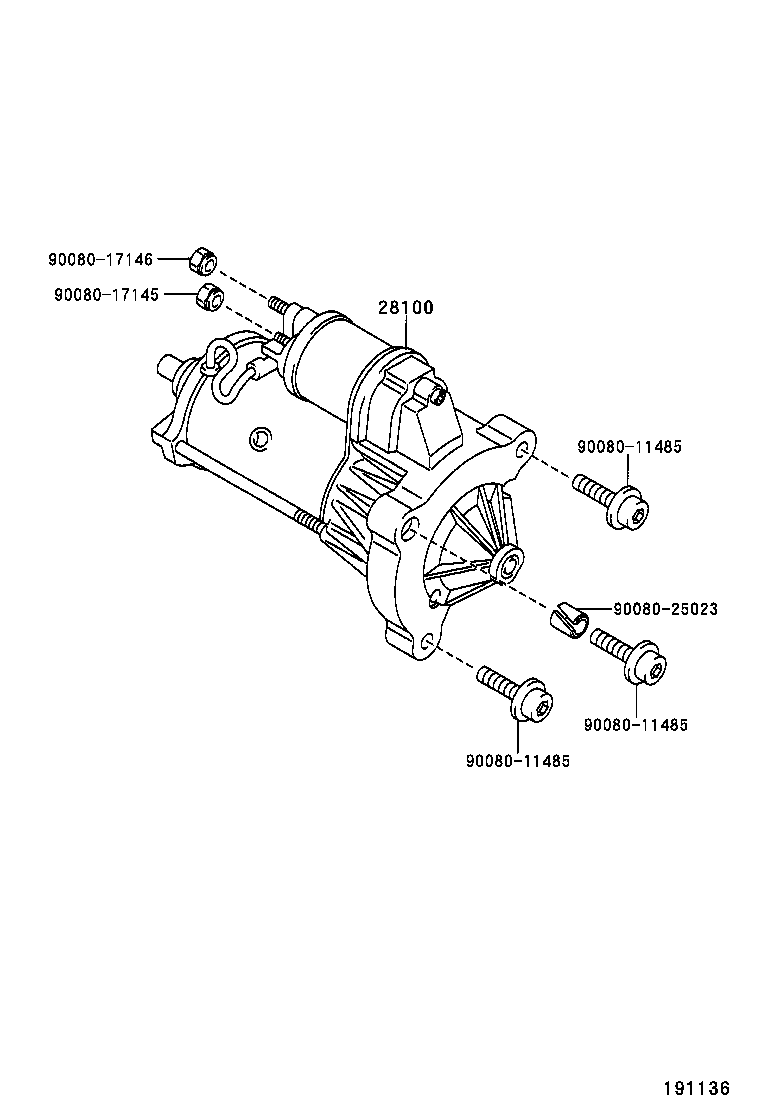

diagram 28100 9008011485 9008011485 9008011485 9008017145 9008017146 9008025023
Part # Description Qty Price
28100 - STARTER ASSY
28100-0X010

1WZ..WZE110

 1
Common parts
90080-11485
90080-17145
90080-17146
90080-25023
