WZE110L-AGMNSW (2000)

Toyota Corolla Hb/Lb

Production Jan 2000 - Jul 2001
Engine 1WZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0001- )1WZ..HB

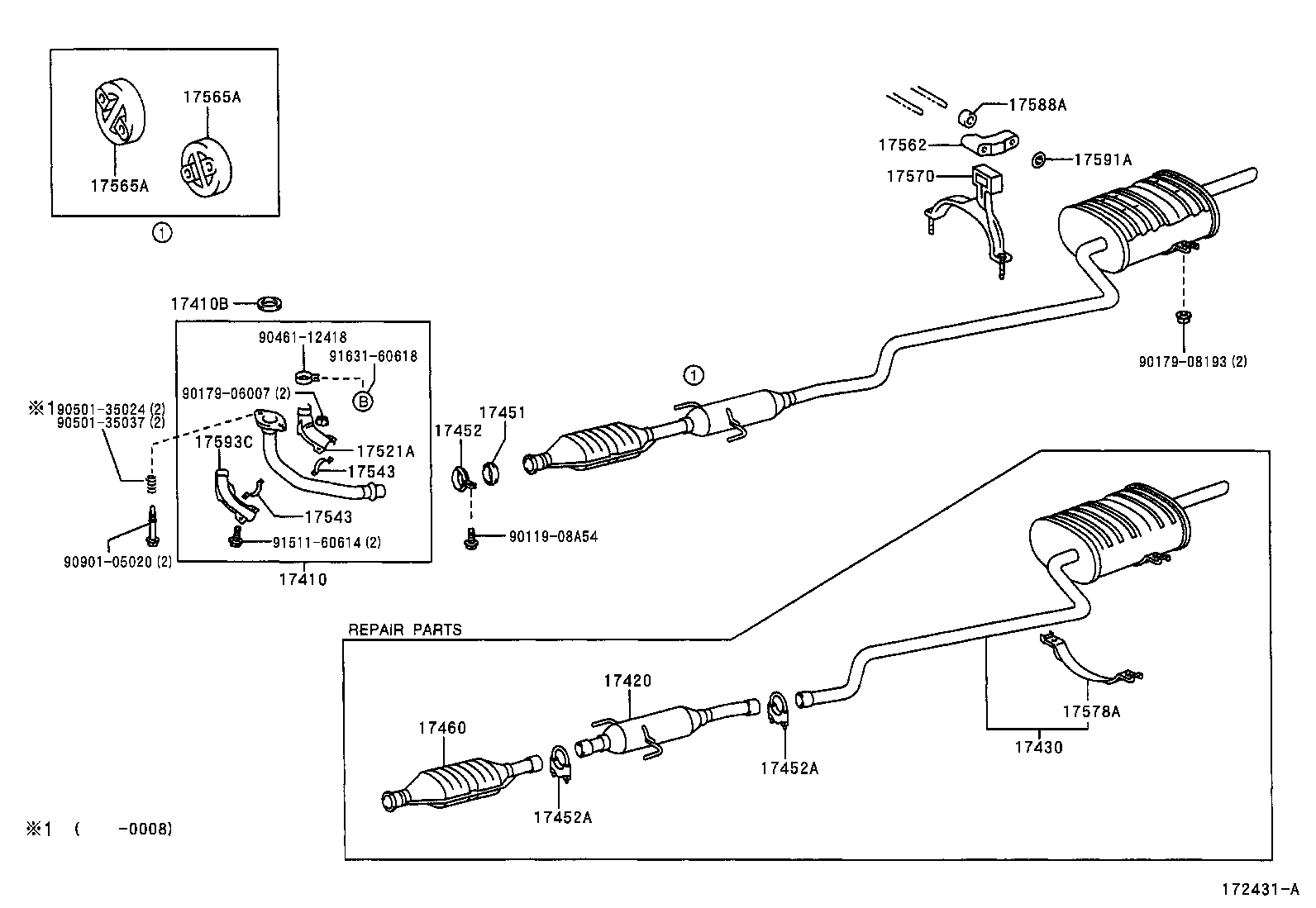

Click highlighted areas on diagram

diagram 17410 17410B 17420 17430 17451 17452 17452A 17452A 17460 17521A 17543 17543 17562 17565A 17565A 17570 17578A 17588A 17591A 17593C 9011908A54 9017906007 9017908193 9046112418 9050135024 9050135037 9090105020 9151160614 9163160618
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-53010

1WZ..WZE110..HB

 1
17410B - GASKET, EXHAUST PIPE
90917-06080

1WZ..WZE110..HB

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-53010

1WZ..WZE110..HB

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-6A220

1WZ..WZE110..HB

 1
17451 - GASKET, EXHAUST PIPE
90917-06082

1WZ..WZE110..HB

 1
17452 - CLAMP, EXHAUST PIPE
90461-15013

1WZ..WZE110..HB

 1
17460 - CONVERTER ASSY, CATALYTIC W/PIPE
17460-53010

1WZ..WZE110..HB

 1
17521A - PROTECTOR, EXHAUST PIPE, UPPER NO.1
17521-64180

1WZ..WZE110..HB

 1
17543 - STAY, EXHAUST PIPE PROTECTOR, NO.3
17543-26010

1WZ..WZE110..HB

 2
17543 - STAY, EXHAUST PIPE PROTECTOR, NO.3
17543-26010

1WZ..WZE110..HB

 2
17593C - PROTECTOR, EXHAUST PIPE, LOWER NO.1
17593-64150

1WZ..WZE110..HB

 1
Common parts
90119-08A54
90179-06007
90179-08193
90461-12418
90501-35024
90501-35037
90901-05020
91511-60614
91631-60618
