EE111R-DLMNKW (1998)

Toyota Corolla Hb/Lb

Production Sep 1998 - Nov 1999
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )UKP

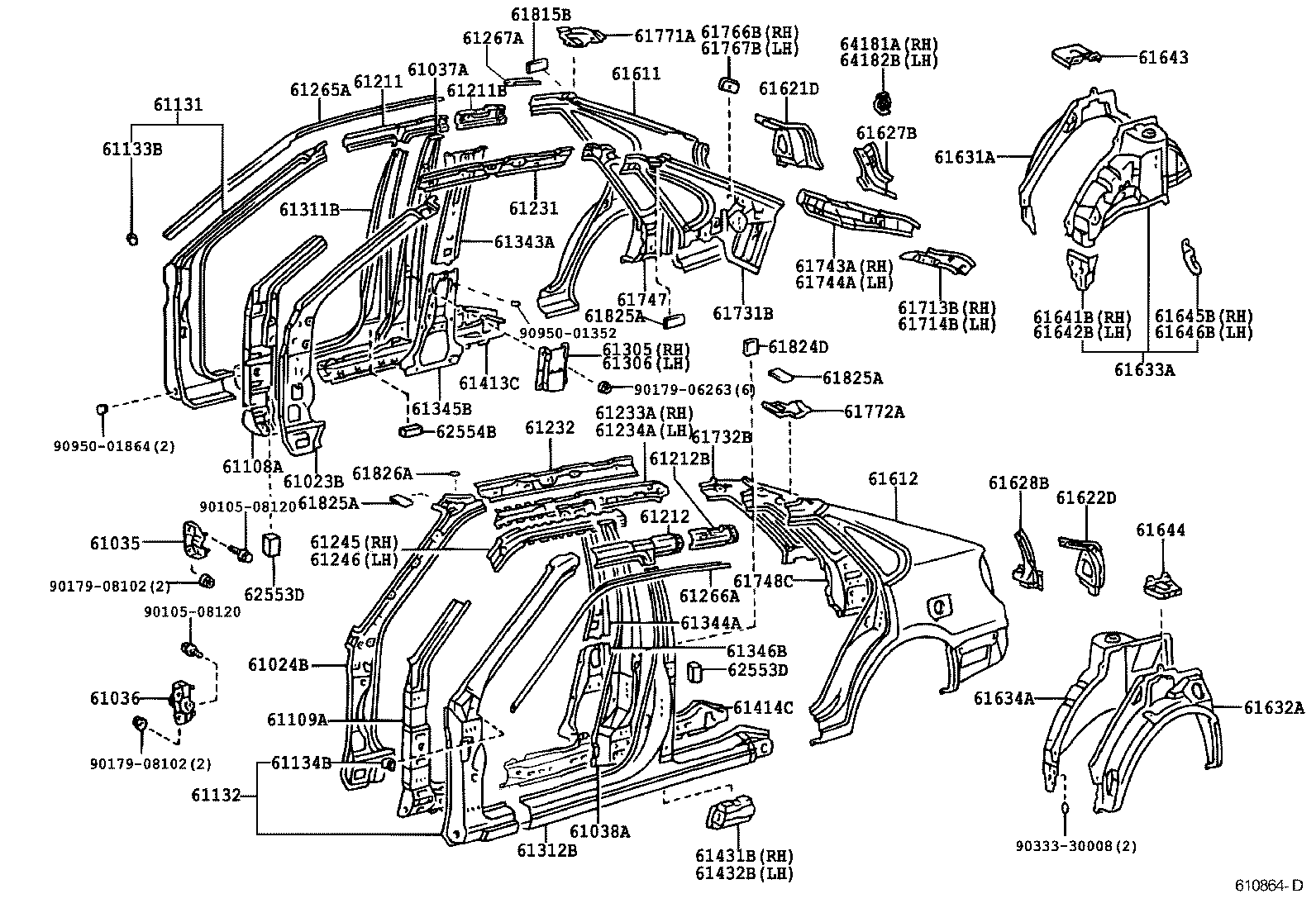

Click highlighted areas on diagram

diagram 61023B 61024B 61035 61036 61037A 61038A 61108A 61109A 61131 61132 61133B 61134B 61211 61211B 61212 61212B 61231 61232 61233A 61234A 61245 61246 61265A 61266A 61267A 61305 61306 61311B 61312B 61343A 61344A 61345B 61346B 61413C 61414C 61431B 61432B 61611 61612 61621D 61622D 61627B 61628B 61631A 61632A 61633A 61634A 61641B 61642B 61643 61644 61645B 61646B 61713B 61714B 61731B 61732B 61743A 61744A 61747 61748C 61766B 61767B 61771A 61772A 61815B 61824D 61825A 61825A 61825A 61826A 62553D 62553D 62554B 64181A 64182B 9010508120 9010508120 9017906263 9017908102 9017908102 9033330008 9095001352 9095001864
Part # Description Qty Price
61265A - CHANNEL, ROOF DRIP SIDE, CENTER RH
61265-02020

AE111,EE111..UKP

 1
61265-02020

AE111,EE111..UKP

NO.1

 1
61265-12240

AE111,EE111..UKP

 1
61266A - CHANNEL, ROOF DRIP SIDE, CENTER LH
61266-12240

AE111,EE111..UKP

NO.2

 1
61266-02020

AE111,EE111..UKP

NO.1

 1
61824D - PLATE, NOISE CONTROL, NO.1
61824-02030

AE111,EE111..UKP

 2
Common parts
90105-08120
90179-06263
90179-08102
90333-30008
90950-01352
90950-01864
