EE111R-DLMDKW (1998)

Toyota Corolla Hb/Lb

Production Sep 1998 - Nov 1999
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

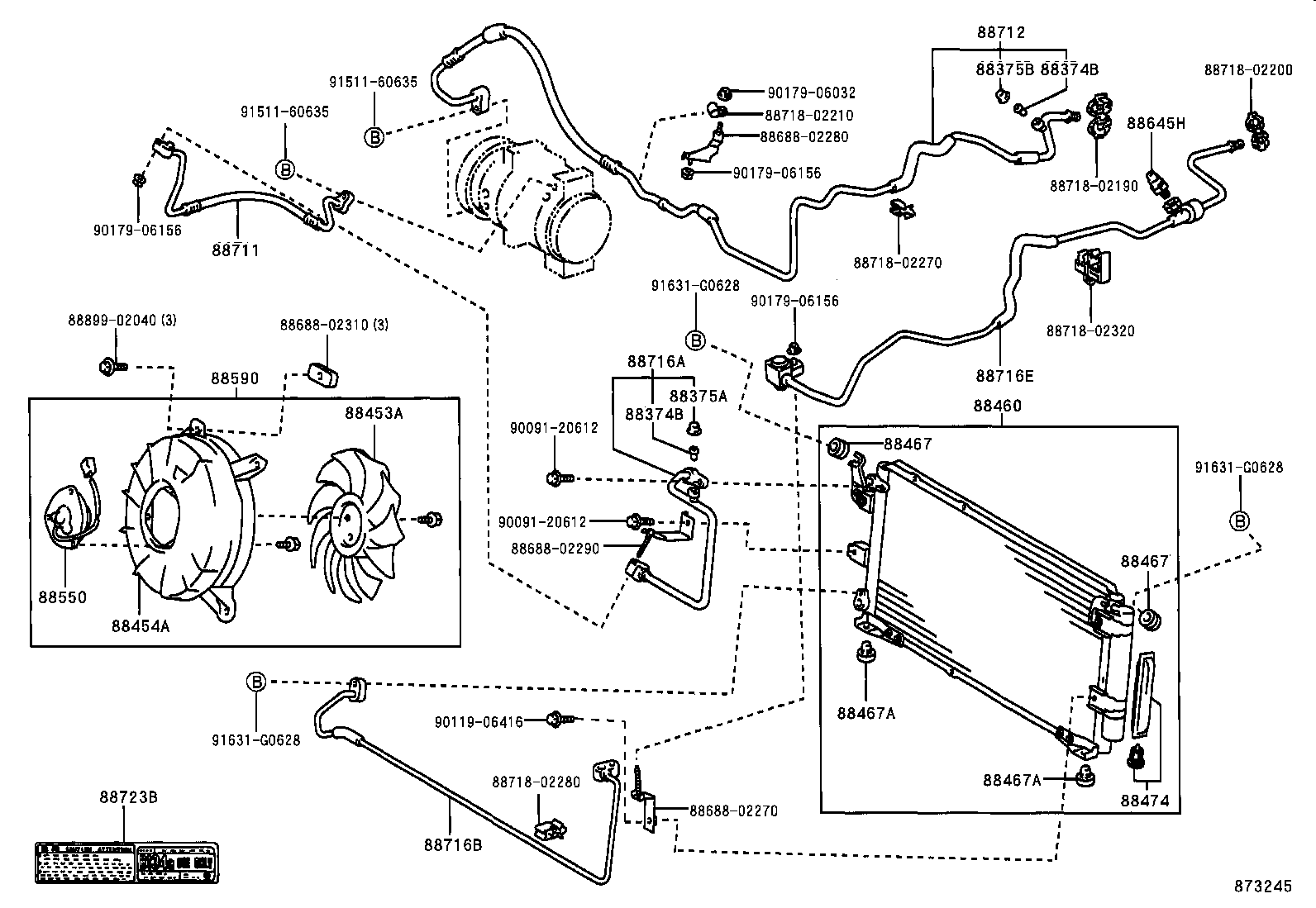

ILLUST NO. 1 OF 2(9809- )EE111..UKP..RHD

Click highlighted areas on diagram

MAKER OPTION

diagram 88374B 88374B 88375A 88375B 88453A 88454A 88460 88467 88467 88467A 88467A 88474 88550 88590 88645H 8868802270 8868802280 8868802290 8868802310 88711 88712 88716A 88716B 88716E 8871802190 8871802200 8871802210 8871802270 8871802280 8871802320 88723B 8889902040 9009120612 9009120612 9011906416 9017906032 9017906156 9017906156 9017906156 9151160635 9151160635 91631G0628 91631G0628 91631G0628
Part # Description Qty Price
88453A - FAN, COOLING
88453-02040

AE111,EE111..UKP

 1
88454A - SHROUD, FAN
88454-02040

AE111,EE111..UKP

 1
88460 - CONDENSER ASSY, COOLER
88460-02080

AE111,EE111..UKP

DEALER OPTION

 1
88460-02060

AE111,EE111..UKP

MAKER OPTION

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-16020

AE111,EE111..UKP

MAKER OPTION

 2
88467-02080

AE111,EE111..UKP

DEALER OPTION

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-16020

AE111,EE111..UKP

MAKER OPTION

 2
88467-02080

AE111,EE111..UKP

DEALER OPTION

 2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-02040

AE111,EE111..UKP

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-02070

EE111..UKP

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-02120

EE111..UKP..RHD

DEALER OPTION

 1
88712-02070

EE111..UKP..RHD

MAKER OPTION

 1
Common parts
88688-02270
88688-02280
88688-02290
88688-02310
88718-02190
88718-02200
88718-02210
88718-02270
88718-02280
88718-02320
88899-02040
90091-20612
90119-06416
90179-06032
90179-06156
91511-60635
91631-G0628

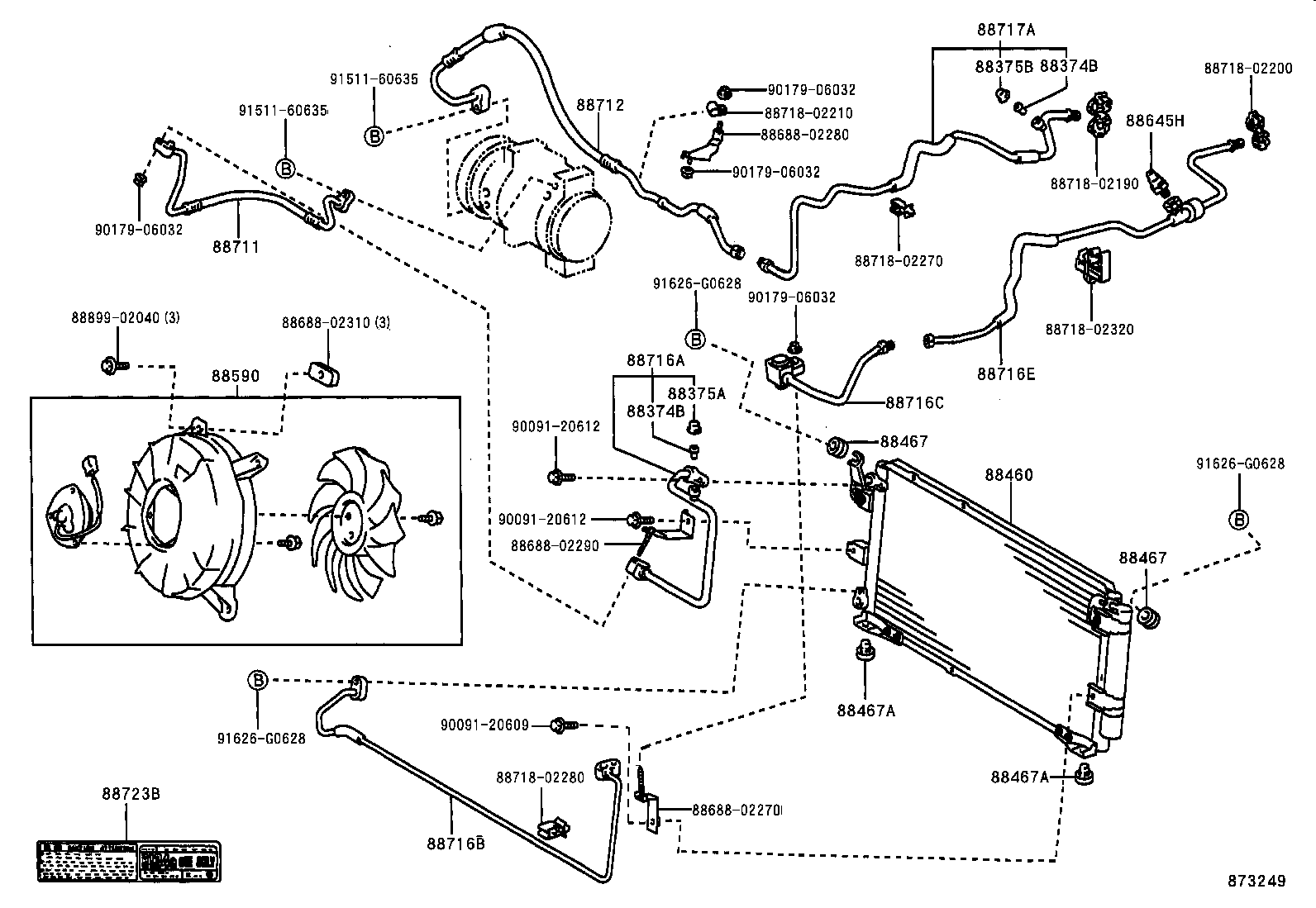

ILLUST NO. 1 OF 2(9809- )EE111..UKP..RHD

Click highlighted areas on diagram

DEALER OPTION

diagram 88374B 88374B 88375A 88375B 88460 88467 88467 88467A 88467A 88590 88645H 8868802270 8868802280 8868802290 8868802310 88711 88712 88716A 88716B 88716C 88716E 88717A 8871802190 8871802200 8871802210 8871802270 8871802280 8871802320 88723B 8889902040 9009120609 9009120612 9009120612 9017906032 9017906032 9017906032 9017906032 9151160635 9151160635 91626G0628 91626G0628 91626G0628
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-02080

AE111,EE111..UKP

DEALER OPTION

 1
88460-02060

AE111,EE111..UKP

MAKER OPTION

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-16020

AE111,EE111..UKP

MAKER OPTION

 2
88467-02080

AE111,EE111..UKP

DEALER OPTION

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-16020

AE111,EE111..UKP

MAKER OPTION

 2
88467-02080

AE111,EE111..UKP

DEALER OPTION

 2
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-02070

EE111..UKP

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-02120

EE111..UKP..RHD

DEALER OPTION

 1
88712-02070

EE111..UKP..RHD

MAKER OPTION

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-02090

AE111,EE111..UKP..RHD

 1
Common parts
88688-02270
88688-02280
88688-02290
88688-02310
88718-02190
88718-02200
88718-02210
88718-02270
88718-02280
88718-02320
88899-02040
90091-20609
90091-20612
90179-06032
91511-60635
91626-G0628
