EE111R-DLHNKW (1998)
Toyota Corolla Hb/Lb

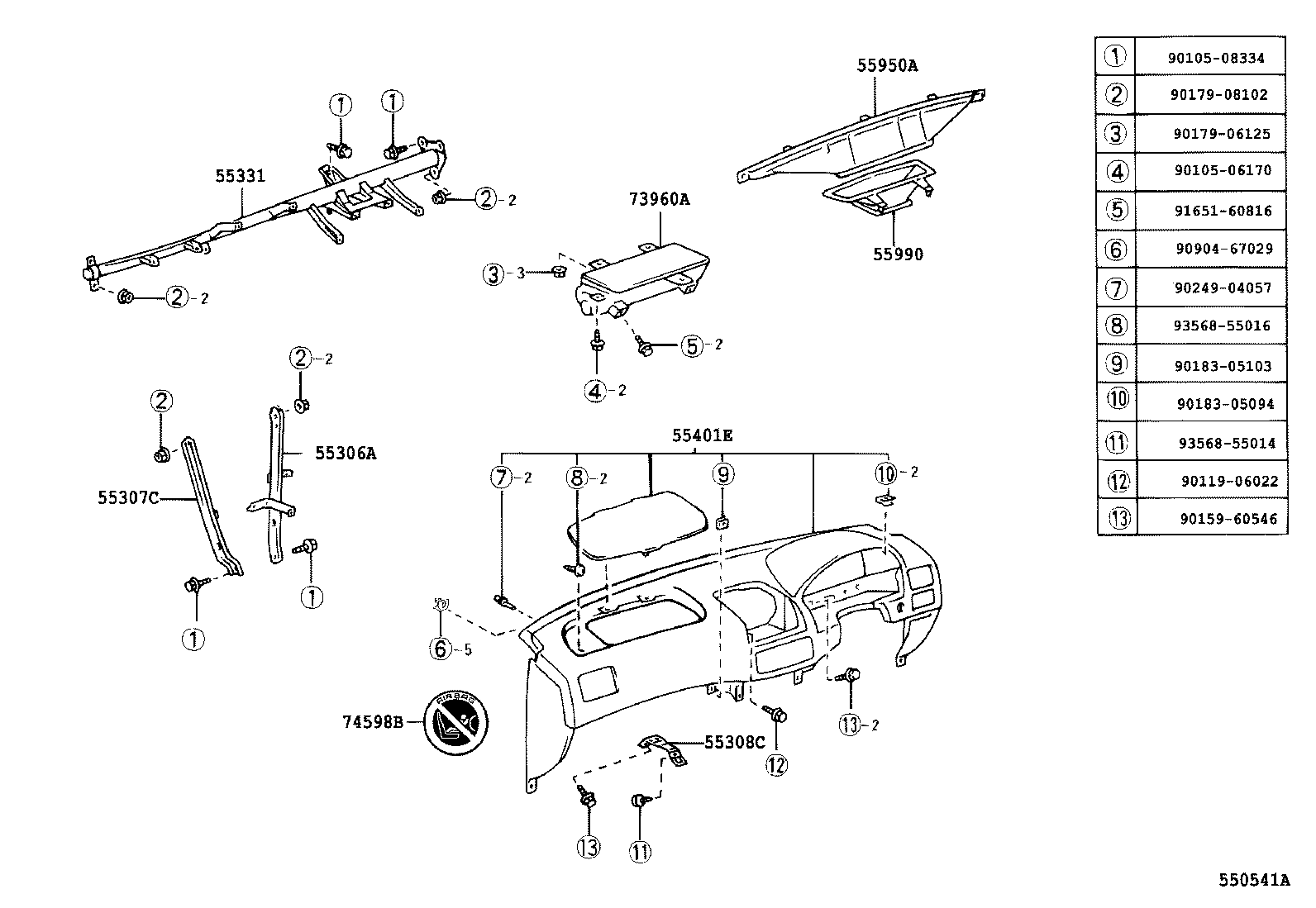

ILLUST NO. 1 OF 2(9809- )UKP..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-02070B1 |
AE111,EE111..UKP..RHD DK.CHARCOAL,TRIM0#,1# |
1 | ||
| Common parts | ||||
| 90105-06170 | ||||
| 90105-08334 | ||||
| 90119-06022 | ||||
| 90159-60546 | ||||
| 90179-06125 | ||||
| 90179-08102 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90249-04057 | ||||
| 90904-67029 | ||||
| 91651-60816 | ||||
| 93568-55014 | ||||
| 93568-55016 | ||||

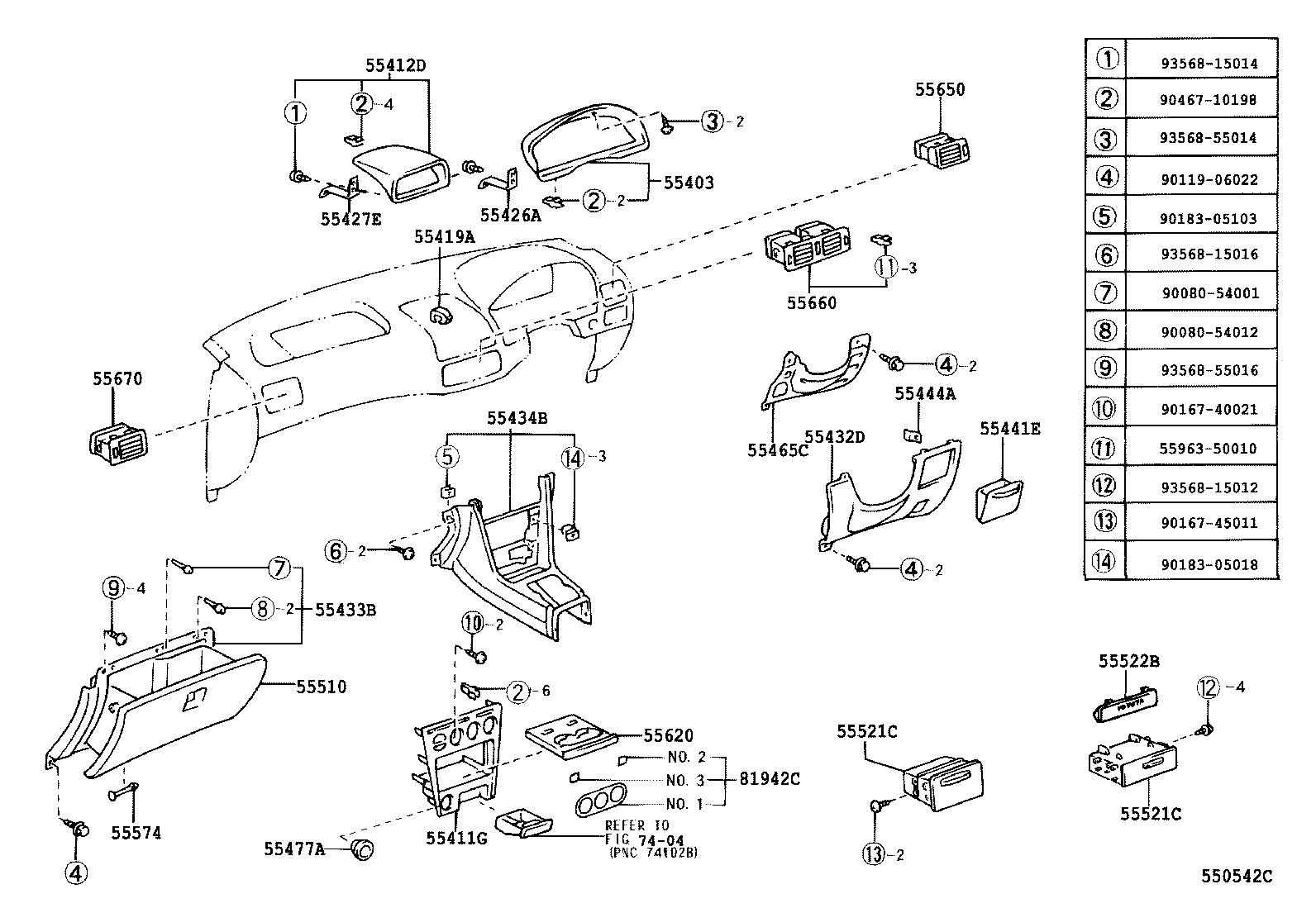

ILLUST NO. 2 OF 2(9809- )UKP..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-02901G0 |
AE111,EE111..UKP..RHD..LUNA GREEN,TRIM0# |
1 | ||
| 55411-02906B2 |
AE111,EE111..UKP..RHD..LUNA LIGHT SILVER,TRIM12 |
1 | ||
| 55411-02900B1 |
AE111,EE111..UKP..RHD DK.CHARCOAL,TRIM0#,1# |
1 | ||
| 55411-02900B0 |
AE111,EE111..UKP..RHD..LUNA G6 GRADE PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 55411-12907J0 |
AE111,CE110,EE111..RHD..(LUNA,TERRA) BLUE,TRIM10 |
1 | ||
| 55411-02901J0 |
AE111,EE111..UKP..RHD..LUNA BLUE,TRIM10 |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-02070B0 |
AE111,EE111..UKP..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55405-02070B1 |
AE111,EE111..UKP..RHD DK.CHARCOAL,TRIM0#,1# |
1 | ||
| 55419A - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-02070 |
AE111,EE111..UKP |
2 | ||
| 55426A - BRACKET, CLUSTER FINISH PANEL, NO.1 | ||||
| 55426-02010 |
AE111,EE111..UKP |
1 | ||
| 55427E - BRACKET, CLUSTER FINISH PANEL, NO.2 | ||||
| 55427-02060 |
AE111,EE111..UKP |
1 | ||
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-02030B0 |
AE111,EE111..UKP..RHD SHADOW GRAY,TRIM12 |
1 | ||
| 55432-02030A0 |
AE111,EE111..UKP..RHD IVORY,TRIM0# |
1 | ||
| 55432-02030B1 |
AE111,EE111..UKP..RHD MD.CHARCOAL,TRIM10 |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-02040A0 |
AE111,EE111..UKP..RHD IVORY,TRIM0# |
1 | ||
| 55433-02040B1 |
AE111,EE111..UKP..RHD MD.CHARCOAL,TRIM10 |
1 | ||
| 55433-02040B0 |
AE111,EE111..UKP..RHD SHADOW GRAY,TRIM12 |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-02040B0 |
AE111,EE111..UKP..RHD SHADOW GRAY,TRIM12 |
1 | ||
| 55434-02040A0 |
AE111,EE111..UKP..RHD IVORY,TRIM0# |
1 | ||
| 55434-02040B1 |
AE111,EE111..UKP..RHD MD.CHARCOAL,TRIM10 |
1 | ||
| 55441E - BOX, INSTRUMENT PANEL | ||||
| 55441-02020A0 |
AE111,EE111..UKP IVORY,TRIM0# |
1 | ||
| 55441-02020B0 |
AE111,EE111..UKP SHADOW GRAY,TRIM12 |
1 | ||
| 55441-02020B1 |
AE111,EE111..UKP MD.CHARCOAL,TRIM10 |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-02050A0 |
AE111,EE111..UKP..RHD IVORY,TRIM0# |
1 | ||
| 55550-02050B1 |
AE111,EE111..UKP..RHD MD.CHARCOAL,TRIM10 |
1 | ||
| 55550-02050B0 |
AE111,EE111..UKP..RHD SHADOW GRAY,TRIM12 |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55520-02020B0 |
AE111,EE111..UKP SHADOW GRAY,TRIM1# |
1 | ||
| 55520-02030B0 |
AE111,EE111..UKP..LUNA SHADOW GRAY,TRIM12 |
1 | ||
| 55520-02020B1 |
AE111,EE111..UKP DK.CHARCOAL,TRIM0#,1# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55520-02020B0 |
AE111,EE111..UKP SHADOW GRAY,TRIM1# |
1 | ||
| 55520-02030B0 |
AE111,EE111..UKP..LUNA SHADOW GRAY,TRIM12 |
1 | ||
| 55520-02020B1 |
AE111,EE111..UKP DK.CHARCOAL,TRIM0#,1# |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-02040 |
AE111,EE111..UKP |
1 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55604-02011B0 |
AE111,EE111..UKP SHADOW GRAY,TRIM12 |
1 | ||
| 55604-02011B1 |
AE111,EE111..UKP DK.CHARCOAL,TRIM0#,10 |
1 | ||
| 55604-02010B0 |
AE111,EE111..UKP..LUNA WOOD GRAIN,SHADOW GRAY,TRIM1# |
1 | ||
| 55604-02040B0 |
AE111,EE111..UKP..LUNA SHADOW GRAY,TRIM1# |
1 | ||
| 55604-02010B1 |
AE111,EE111..UKP DK.CHARCOAL,TRIM0#,1# |
1 | ||
| 55604-02041B0 |
AE111,EE111..UKP..LUNA SHADOW GRAY,TRIM1# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-02040B1 |
AE111,EE111..UKP..RHD DK.CHARCOAL,TRIM0#,1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-02020B0 |
AE111,EE111..UKP SHADOW GRAY,TRIM1# |
1 | ||
| 55660-02020B1 |
AE111,EE111..UKP DK.CHARCOAL,TRIM0#,1# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-02040B1 |
AE111,EE111..UKP..RHD DK.CHARCOAL,TRIM0#,1# |
1 | ||
| 81942C - SHEET, HEATER CONTROL NAME | ||||
| 81942-02070B1 |
AE111,EE111..UKP DK.CHARCOAL,TRIM0#,1#,NO.2 |
1 | ||
| 81942-02060B2 |
AE111,EE111..UKP..RHD SHADOW GRAY,TRIM12,NO.1 |
1 | ||
| 81942-02070B2 |
AE111,EE111..UKP SHADOW GRAY,TRIM12,NO.2 |
1 | ||
| 81942-02080B2 |
AE111,EE111..UKP SHADOW GRAY,TRIM12,NO.3 |
1 | ||
| 81942-02080B1 |
AE111,EE111..UKP DK.CHARCOAL,TRIM0#,1#,NO.3 |
1 | ||
| 81942-02130B0 |
AE111,EE111..LUNA CENTER CLUSTER PANEL = WOOD GRAIN OR PAINT,LIGHT SILVER,TRIM1#,NO.3 |
1 | ||
| 81942-02060B1 |
AE111,EE111..UKP..RHD DK.CHARCOAL,TRIM0#,1#,NO.1 |
1 | ||
| 81942-02120B0 |
AE111,EE111..LUNA CENTER CLUSTER PANEL = WOOD GRAIN OR PAINT,LIGHT SILVER,TRIM1#,NO.2 |
1 | ||
| 81942-02100B0 |
AE111,EE111..RHD..LUNA CENTER CLUSTER PANEL = WOOD GRAIN OR PAINT,LIGHT SILVER,TRIM1#,NO.1 |
1 | ||
| Common parts | ||||
| 55963-50010 | ||||
| 90080-54001 | ||||
| 90080-54012 | ||||
| 90119-06022 | ||||
| 90167-40021 | ||||
| 90167-45011 | ||||
| 90183-05018 | ||||
| 90183-05103 | ||||
| 90467-10198 | ||||
| 93568-15012 | ||||
| 93568-15014 | ||||
| 93568-15016 | ||||
| 93568-55014 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7404 | ||||
