EE111R-DLHNKW (1998)

Toyota Corolla Hb/Lb

Production Sep 1998 - Nov 1999
Engine 4EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809-9911)EE111..UKP..RHD

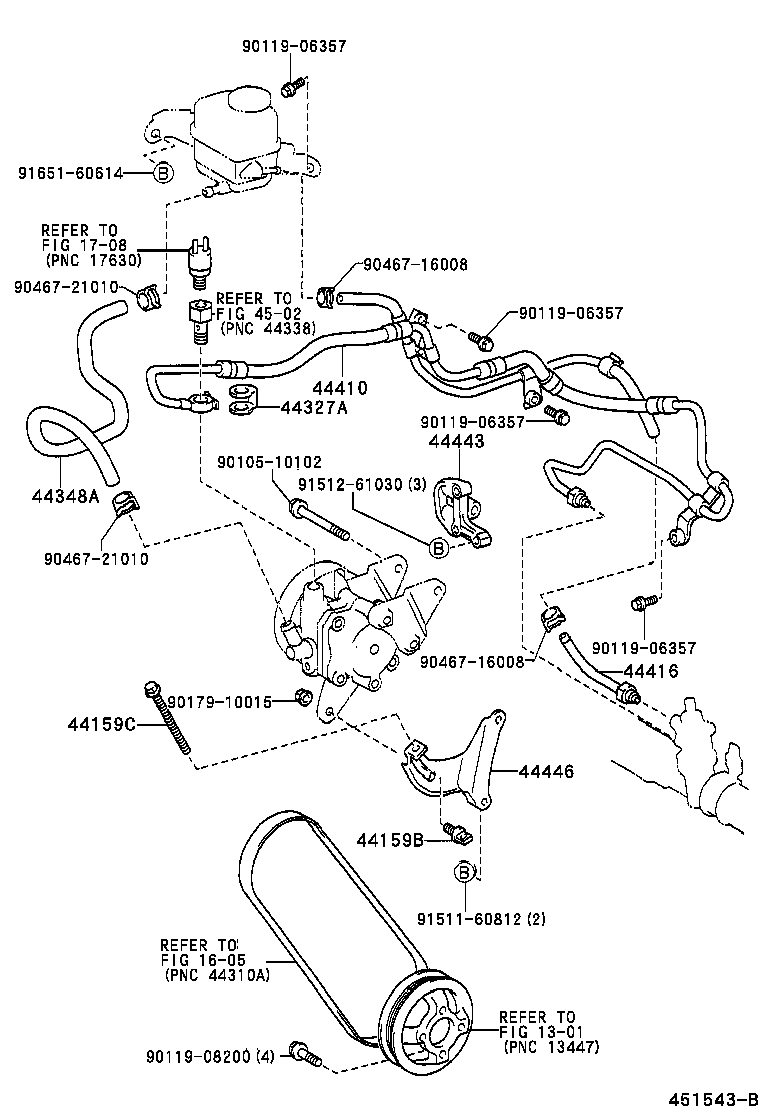

Click highlighted areas on diagram

diagram 1301 1605 1708 44159B 44159C 44327A 44348A 44410 44416 44443 44446 4502 9010510102 9011906357 9011906357 9011906357 9011906357 9011908200 9017910015 9046716008 9046716008 9046721010 9046721010 9151160812 9151261030 9165160614
Part # Description Qty Price
44159B - BOLT, ADJUST, NO.1(FOR PUMP BRACKET ASSY)
44159-16010

EE111..UKP

 1
44159C - BOLT, ADJUST, NO.2(FOR PUMP BRACKET ASSY)
44159-16020

EE111..UKP

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-02020

EE111..UKP

 1
44410 - TUBE ASSY, PRESSURE FEED
44040-12200

EE111..UKP..RHD

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-12230

AE111,EE111..UKP..RHD

 1
44443 - BRACKET, PUMP
44443-16020

EE111..UKP

 1
44446 - STRUT, ADJUSTING
44446-02030

EE111..UKP

 1
Common parts
90105-10102
90119-06357
90119-08200
90179-10015
90467-16008
90467-21010
91511-60812
91512-61030
91651-60614
Linked diagrams
1301
1605
1708
4502
