EE111R-ALMDKW (1997)

Toyota Corolla Hb/Lb

Production Apr 1997 - Oct 1999
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9704-9910)AE111,EE111..JPP..RHD

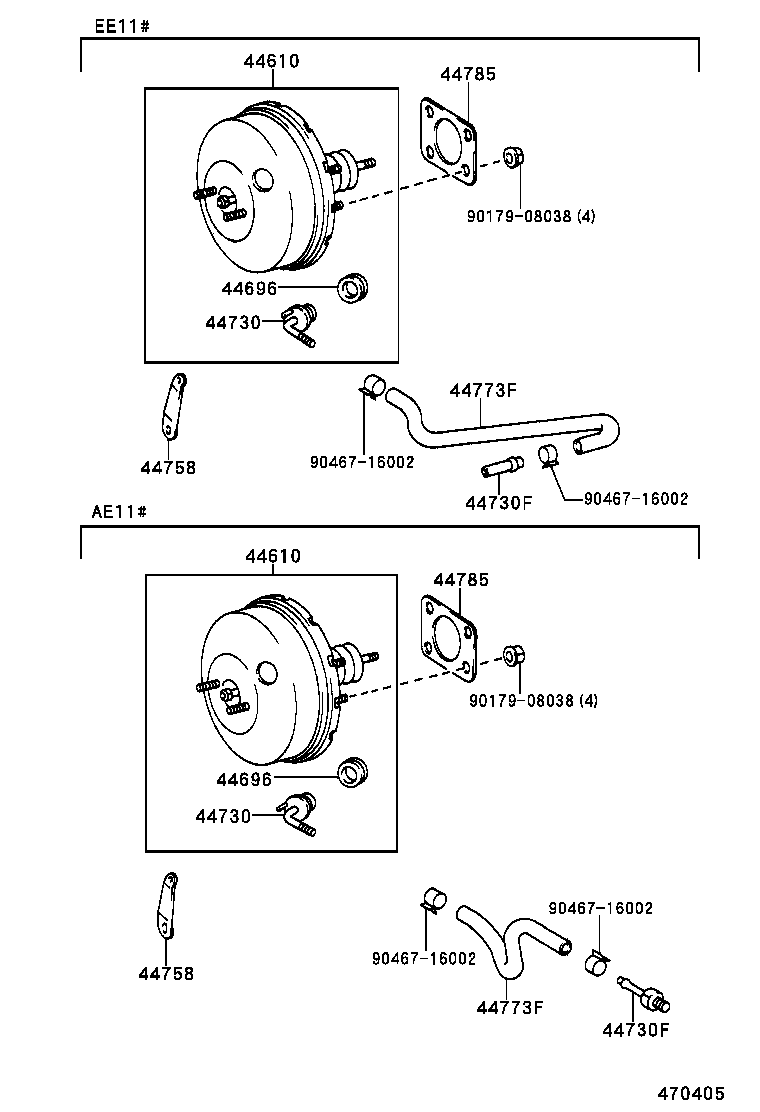

Click highlighted areas on diagram

diagram 44610 44610 44696 44696 44730 44730 44730F 44730F 44758 44758 44773F 44773F 44785 44785 9017908038 9017908038 9046716002 9046716002 9046716002 9046716002
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-1E220

AE111,EE111..JPP..RHD

 1
44610 - BOOSTER ASSY, BRAKE
44610-1E220

AE111,EE111..JPP..RHD

 1
44696 - GROMMET, CHECK VALVE
90480-24439

AE111,EE111..JPP..RHD

 1
44696 - GROMMET, CHECK VALVE
90480-24439

AE111,EE111..JPP..RHD

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-12040

AE111,EE111..JPP..RHD

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-12040

AE111,EE111..JPP..RHD

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-12300

AE111,EE111..JPP..RHD

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-12300

AE111,EE111..JPP..RHD

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-12530

EE111..JPP..RHD

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-12530

EE111..JPP..RHD

 1
44785 - GASKET, BRAKE BOOSTER
44785-20020

AE111,CE110,EE111..JPP

 1
44785 - GASKET, BRAKE BOOSTER
44785-20020

AE111,CE110,EE111..JPP

 1
Common parts
90179-08038
90467-16002
