EE111R-ALHDKW (1997)

Toyota Corolla Hb/Lb

Production Apr 1997 - Oct 1999
Engine 4EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )ZZE112..LB ; (9704- )ZZE112..HB..MTM ; (9704- )AE111,EE111,ZZE111

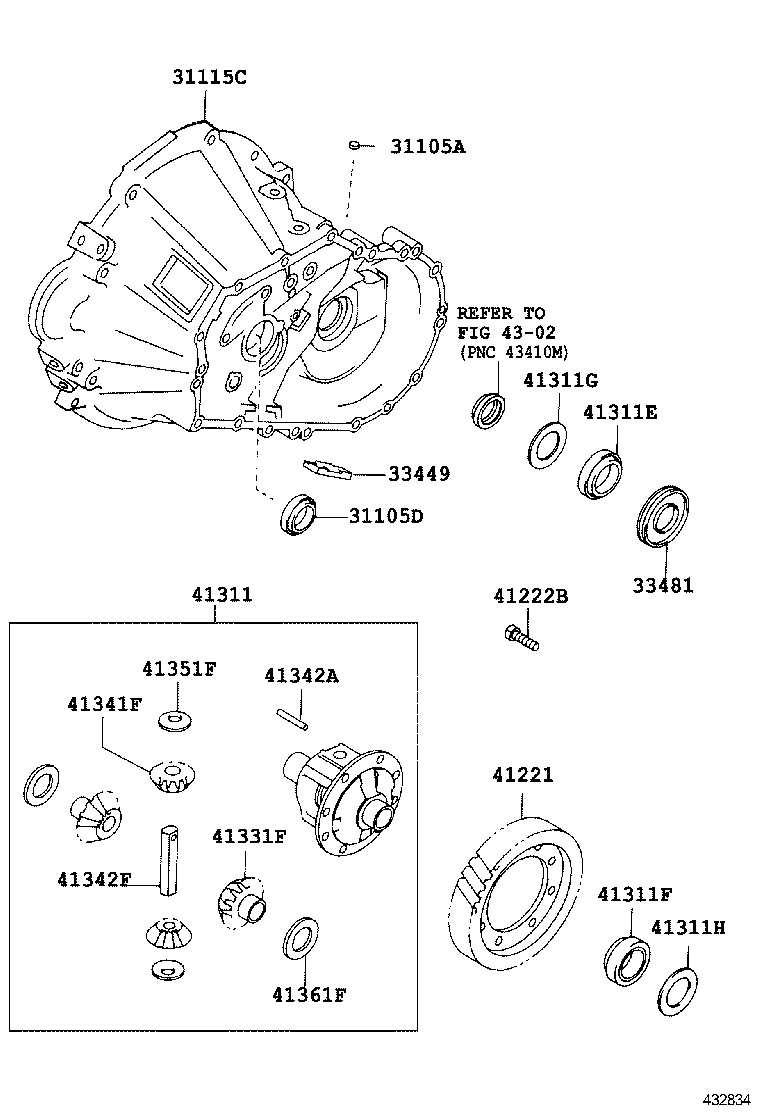

Click highlighted areas on diagram

C52,C150,C161

diagram 31105A 31105D 31115C 33449 33481 41221 41222B 41311 41311E 41311F 41311G 41311H 41331F 41341F 41342A 41342F 41351F 41361F 4302
Part # Description Qty Price
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-12160

EE111..JPP..3FC

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90101-11353

AE111,EE111..JPP..ATM

 8
41311 - CASE, FRONT DIFFERENTIAL
41301-12051

EE111..JPP..3FC

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-38014

EE111..JPP..3FC

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-38014

EE111..JPP..3FC

 1
41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
90201-41004

EE111..JPP..3FC

T=1.70

 1
90201-41005

EE111..JPP..3FC

T=1.75

 1
90201-41009

EE111..JPP..3FC

T=1.95

 1
90201-41013

EE111..JPP..3FC

T=2.15

 1
90201-41011

EE111..JPP..3FC

T=2.05

 1
90201-41002

EE111..JPP..3FC

T=1.60

 1
90201-41008

EE111..JPP..3FC

T=1.90

 1
90201-41010

AE111,EE111..JPP..ATM

T=2.00

 1
90201-41012

AE111,EE111..JPP..(3FC,5F,6F)

T=2.10

 1
90201-41018

EE111..JPP..3FC

T=2.40

 1
90201-41022

EE111..JPP..3FC

T=2.60

 1
90201-41003

EE111..JPP..3FC

T=1.65

 1
90201-41017

EE111..JPP..3FC

T=2.35

 1
90201-41006

EE111..JPP..3FC

T=1.80

 1
90201-41007

EE111..JPP..3FC

T=1.85

 1
90201-41014

EE111..JPP..3FC

T=2.20

 1
90201-41021

EE111..JPP..3FC

T=2.55

 1
90201-41020

EE111..JPP..3FC

T=2.50

 1
90201-41023

EE111..JPP..3FC

T=2.65

 1
90201-41019

EE111..JPP..3FC

T=2.45

 1
90201-41015

EE111..JPP..3FC

T=2.25

 1
90201-41016

EE111..JPP..3FC

T=2.30

 1
90201-41012

EE111..JPP..3FC

T=2.10

 1
41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
90201-41012

EE111..JPP..3FC

T=2.10

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-12011

AE111..JPP;EE111..JPP..(3FC,6F)

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-12030

AE111..JPP;EE111..JPP..(3FC,6F)

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

AE111,CE110..JPP;EE111..JPP..(3FC,6F)

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-12140

AE111..JPP;EE111..JPP..(3FC,6F)

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-12020

AE111..JPP;EE111..JPP..(3FC,6F)

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22040

EE111..3FC,6F;AE111,CE110..5F

T=1.20,MARK 04

 2
41361-17030

AE111,EE111..JPP..ATM

T=1.05

 2
41361-22150

EE111..3FC,6F;AE111,CE110..5F

T=1.05,MARK 15

 2
41361-22160

EE111..3FC,6F;AE111,CE110..5F

T=1.15,MARK 16

 2
41361-17010

AE111,EE111..JPP..ATM

T=0.95

 2
41361-17020

AE111,EE111..JPP..ATM

T=1.00

 2
41361-22020

EE111..3FC,6F;AE111,CE110..5F

T=1.00,MARK 02

 2
41361-17040

AE111,EE111..JPP..ATM

T=1.10

 2
41361-22140

EE111..3FC,6F;AE111,CE110..5F

T=0.95,MARK 14

 2
41361-22030

EE111..3FC,6F;AE111,CE110..5F

T=1.10,MARK 03

 2
41361-17050

AE111,EE111..JPP..ATM

T=1.15

 2
41361-17060

AE111,EE111..JPP..ATM

T=1.20

 2
Linked diagrams
4302
