Toyota Corolla hb/lb EE111 WIRING & CLAMP

EE111R-ALFNKW (1997)

Toyota Corolla Hb/Lb

Production Apr 1997 - Oct 1999

Engine 4EFE

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 7 OF 7(9704- )AE111,CDE110,CE110,EE111,ZZE11# ; (9912- )WZE110..LB ; (0001- )WZE

Click highlighted areas on diagram

FUSIBLE LINK REPAIR

Part #	Description	Period	Qty	Price
82991 - WIRE, FUSIBLE LINK REPAIR
82991-12070	AE111,EE111..JPP	04/1997 - 10/1999	1

Part #

Description

Qty

Price

82991 - WIRE, FUSIBLE LINK REPAIR

82991-12070

AE111,EE111..JPP

ILLUST NO. 4 OF 7(9704- )RHD..LB

Click highlighted areas on diagram

ROOF,DOOR,FLOOR

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-1A660	AE111,CE110,EE111..JPP..RHD..LB W(POWER DOOR LOCK & POWER WINDOW---FRONT ONLY)	04/1997 - 10/1999	1
82152 - WIRE, FRONT DOOR, LH
82152-1A380	AE111,CE110,EE111..JPP..RHD..LB W(POWER DOOR LOCK & ELECTRIC REMOTE CONTROL MIRROR W/HEATER)	04/1997 - 10/1999	1
82153 - WIRE, REAR DOOR, NO.1
82153-12310	AE111,CE110,EE111..JPP..LB	04/1997 - 10/1999	1
82154 - WIRE, REAR DOOR, NO.2
82153-12310	AE111,CE110,EE111..JPP..LB	04/1997 - 10/1999	1
82161 - WIRE, FLOOR
82161-1L840	AE111,CE110,EE111..RHD..LB W(ABS)	04/1997 - 08/1998	1
82161-1L841	AE111,CE110,EE111..JPP..RHD..LB W(ABS)	08/1998 - 10/1999	1
82171 - WIRE, ROOF, NO.1
82171-12710	AE111,CE110,EE111..JPP..RHD W(MOON ROOF)	04/1997 - 10/1999	1
82171-12590	AE111,CE110,EE111..JPP..RHD	04/1997 - 10/1999	1
82184 - WIRE, BACK DOOR, NO.1
82184-12480	AE111,CE110,EE111..JPP..LB	04/1997 - 10/1999	1
82185 - WIRE, BACK DOOR, NO.2
82185-12600	AE111,CE110,EE111..JPP..LB	04/1997 - 10/1999	1
82824J - CONNECTOR, WIRING HARNESS
82824-30130	EE111..LHD..HB;EE111..JPP..RHD;AE111,CE110..LHD..HB..(4FC,5F);AE111,CE110..JPP..RHD..(LUNA,TERRA) W(POWER DOOR LOCK)	04/1997 - 10/1999	2
82824W - CONNECTOR, WIRING HARNESS
82824-30130	AE111,CE110,EE111..JPP..RHD..LB NO.1	04/1997 - 10/1999	1
Common parts
90119-06390
90159-60545
90159-70003
Linked diagrams
8401

ILLUST NO. 5 OF 7(9704- )JPP

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-1A750
82711-1E300
82711-24420
82711-3H630
82715-10010
82715-12020
82715-12261
82715-12380
82715-16440
91611-60612
91611-60812
91611-60816

ILLUST NO. 5 OF 7(9704- )JPP

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82710-12010
82711-10370
82711-16790
82711-1A760
82711-1E350
82711-1E440
82715-02100
82715-10130
82715-12140
82715-12350
82715-12420
82715-12500
82715-12510
82715-12550
82715-12730
82715-12740
82715-12750
82715-20430
82715-32390
82715-33140
90080-11479
90119-06539
90119-06801
91621-40608
91621-60612
91651-B0614

ILLUST NO. 6 OF 7(9704- )AE111,CDE110,CE110,EE111,ZZE11# ; (9912- )WZE110..LB ; (0001- )WZE

Click highlighted areas on diagram

CABLE BOND

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07351	AE111,EE111..JPP NO.3	04/1997 - 10/1999	1
90980-07341	EE111..JPP NO.1	04/1997 - 10/1999	1
82001 - CABLE, BOND, NO.1
90980-07351	AE111,EE111..JPP NO.3	04/1997 - 10/1999	1
90980-07341	EE111..JPP NO.1	04/1997 - 10/1999	1
82001 - CABLE, BOND, NO.1
90980-07351	AE111,EE111..JPP NO.3	04/1997 - 10/1999	1
90980-07341	EE111..JPP NO.1	04/1997 - 10/1999	1
82001 - CABLE, BOND, NO.1
90980-07351	AE111,EE111..JPP NO.3	04/1997 - 10/1999	1
90980-07341	EE111..JPP NO.1	04/1997 - 10/1999	1
82001 - CABLE, BOND, NO.1
90980-07351	AE111,EE111..JPP NO.3	04/1997 - 10/1999	1
90980-07341	EE111..JPP NO.1	04/1997 - 10/1999	1
Common parts
90119-06067
90119-06316
90119-06375
90119-06390

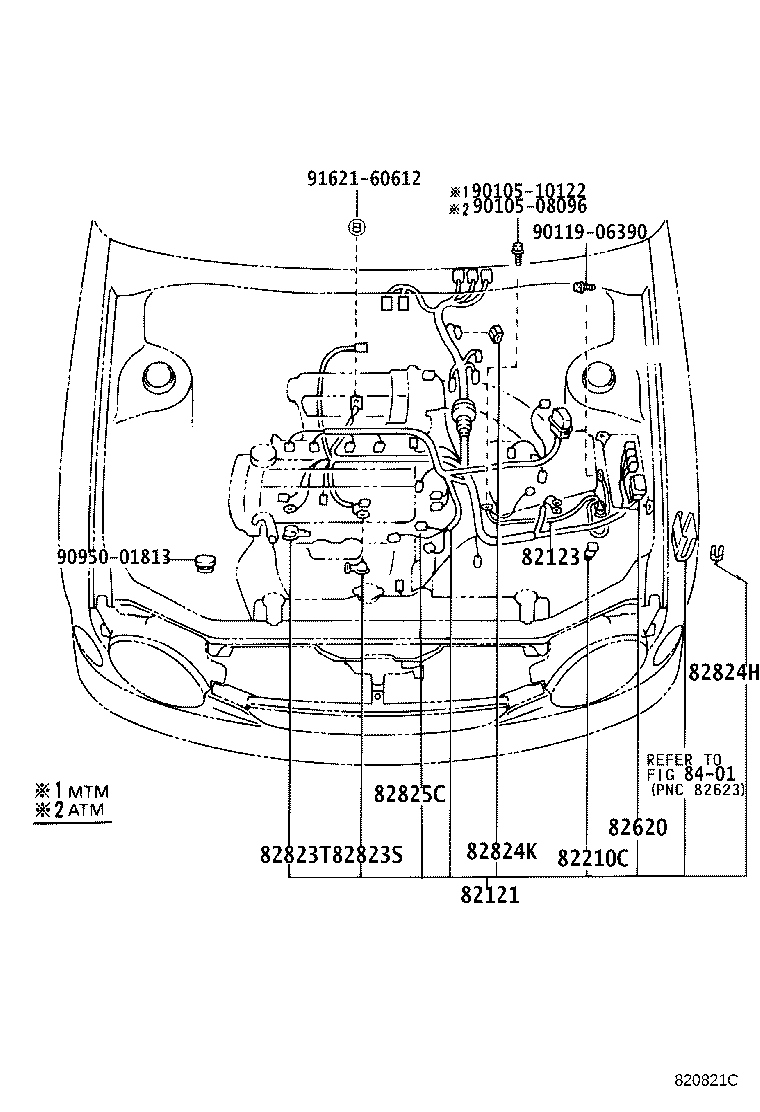

ILLUST NO. 1 OF 7(9704- )EE111

Click highlighted areas on diagram

ENGINE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-1N410	EE111..RHD..MTM	04/1997 - 04/1998	1
82121-1T131	EE111..JPP..RHD..MTM	12/1998 - 10/1999	1
82121-1T130	EE111..JPP..RHD..MTM	04/1998 - 12/1998	1
82123 - WIRE, ENGINE, NO.3
82123-12310	AE111,EE111..JPP..(4FC,5F,6F)	04/1997 - 10/1999	1
82210C - FUSIBLE LINK
90982-08282	AE111,CE110,EE111..JPP 50A,TERM.:FEMALE,RED	04/1997 - 10/1999	1
90982-08228	AE111,CE110,EE111..JPP 50A,TERM.:MALE,RED	04/1997 - 10/1999	1
90982-08246	AE111,CE110,EE111..JPP 100A,TERM.:MALE,BLUE	04/1997 - 10/1999	1
90982-08280	AE111,CE110,EE111..JPP..RHD 30A,TERM.:FEMALE,PNK	04/1997 - 10/1999	1
90982-08281	AE111,CE110,EE111..JPP 40A,TERM.:FEMALE,GRN	04/1997 - 10/1999	1
82620 - BLOCK ASSY, FUSIBLE LINK
82620-13020	AE111,CE110,EE111..JPP	04/1997 - 10/1999	1
82823S - CAP, STARTER TERMINAL
82823-12090	EE111..JPP	04/1997 - 10/1999	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22060	CE110,EE111..JPP	04/1997 - 10/1999	1
82824H - CONNECTOR, WIRING HARNESS
82824-30130	CE110..RHD..HB;CE110..RHD..LB..LUNA;AE111..JPP..RHD..LUNA;EE111..JPP..RHD..(G6,LUNA);AE111,EE111..RHD..HB..TERRA W(POWER DOOR LOCK)	04/1997 - 10/1999	2
82824K - CONNECTOR, WIRING HARNESS
82824-12210	AE111,CE110,EE111..JPP	04/1997 - 10/1999	1
82824-30130	AE111,CE110,EE111..JPP..RHD	04/1997 - 10/1999	1
Common parts
90105-08096
90105-10122
90119-06390
90950-01813
91621-60612
Linked diagrams
8401

ILLUST NO. 3 OF 7(9704- )RHD

Click highlighted areas on diagram

COWL,INSTRUMENT

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-1L610	AE111,CE110,EE111..RHD..LB	04/1997 - 08/1998	1
82131-1L630	AE111,CE110,EE111..RHD..LB W(AIR CONDITIONER)	04/1997 - 08/1998	1
82131-1L631	AE111,CE110,EE111..JPP..RHD..LB W(AIR CONDITIONER)	08/1998 - 10/1999	1
82131-1L611	AE111,CE110,EE111..JPP..RHD..LB	08/1998 - 10/1999	1
82141 - WIRE, INSTRUMENT PANEL
82141-1N190	AE111,CE110,EE111..RHD..LB W(*80, SIDE)	04/1997 - 08/1998	1
82141-1N210	AE111,CE110,EE111..RHD..LB W(*80, SIDE & AIR CONDITIONER) OR W(AIR CONDITIONER)	04/1997 - 08/1998	1
82141-1N191	AE111,CE110,EE111..JPP..RHD..LB W(*80, SIDE)	08/1998 - 10/1999	1
82141-1N211	AE111,CE110,EE111..JPP..RHD..LB W(*80, SIDE & AIR CONDITIONER) OR W(AIR CONDITIONER)	08/1998 - 10/1999	1
82143 - WIRE, INSTRUMENT PANEL, NO.3
82143-12021	AE111,CE110,EE111..JPP..LB W(*80, SIDE)	08/1997 - 10/1999	1
82143-12010	AE111,CE110,EE111..JPP..LB	04/1997 - 10/1999	1
82285E - WIRE, ILLUMINATION
82285-12020	AE111,CE110,EE111..JPP	04/1997 - 10/1999	1
82666B - HOLDER, CONNECTOR NO.3
82666-12230	AE111,CE110,EE111..JPP..RHD	04/1997 - 10/1999	1
82666C - HOLDER, CONNECTOR NO.4
82666-12190	AE111,CE110,EE111..JPP..RHD	04/1997 - 10/1999	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-1A620	AE111,CE110,EE111..JPP	04/1997 - 10/1999	1
82824D - CONNECTOR, WIRING HARNESS
82824-12190	EE111..JPP NO.2	04/1997 - 10/1999	1
82824-20050	AE111,CE110,EE111..JPP NO.1	04/1997 - 10/1999	1
82824D - CONNECTOR, WIRING HARNESS
82824-12190	EE111..JPP NO.2	04/1997 - 10/1999	1
82824-20050	AE111,CE110,EE111..JPP NO.1	04/1997 - 10/1999	1
82824E - CONNECTOR, WIRING HARNESS
82824-12200	AE111,CE110,EE111..JPP	04/1997 - 10/1999	1
82824-12210	CE110,EE111..JPP;AE111..JPP..(LUNA,TERRA) BLACK	04/1997 - 10/1999	3
82824-12220	AE111,CE110,EE111..JPP..LB NATURAL	04/1997 - 10/1999	3
82824-30180	AE111,CE110,EE111..JPP..RHD..LB NO.1	04/1997 - 10/1999	1
82824E - CONNECTOR, WIRING HARNESS
82824-12200	AE111,CE110,EE111..JPP	04/1997 - 10/1999	1
82824-12210	CE110,EE111..JPP;AE111..JPP..(LUNA,TERRA) BLACK	04/1997 - 10/1999	3
82824-12220	AE111,CE110,EE111..JPP..LB NATURAL	04/1997 - 10/1999	3
82824-30180	AE111,CE110,EE111..JPP..RHD..LB NO.1	04/1997 - 10/1999	1
Common parts
90159-70003
Linked diagrams
8121
8401

ILLUST NO. 5 OF 7(9704- )JPP

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82715-12760
82715-12780
82715-12790
82715-32470
82715-34430
82715-67020
90119-08848
91651-B0614

ILLUST NO. 2 OF 7(9704- )

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-1H680	AE111,EE111..RHD PART NUMBER LABEL=82111-1H680	04/1997 - 12/1997	1
82111-1H660	AE111,CE110,EE111..RHD PART NUMBER LABEL=82111-1H660	04/1997 - 12/1997	1
82111-1H661	AE111,CE110,EE111..RHD PART NUMBER LABEL=82111-1H661	12/1997 - 05/1998	1
82111-1H681	AE111,EE111..RHD PART NUMBER LABEL=82111-1H681	12/1997 - 05/1998	1
82111-1K230	AE111,CE110,EE111..JPP..RHD PART NUMBER LABEL=82111-1K230	05/1998 - 10/1999	1
82111-1K240	AE111,EE111..JPP..RHD PART NUMBER LABEL=82111-1K240	05/1998 - 10/1999	1
82210C - FUSIBLE LINK
90982-08282	AE111,CE110,EE111..JPP 50A,TERM.:FEMALE,RED	04/1997 - 10/1999	1
90982-08228	AE111,CE110,EE111..JPP 50A,TERM.:MALE,RED	04/1997 - 10/1999	1
90982-08246	AE111,CE110,EE111..JPP 100A,TERM.:MALE,BLUE	04/1997 - 10/1999	1
90982-08280	AE111,CE110,EE111..JPP..RHD 30A,TERM.:FEMALE,PNK	04/1997 - 10/1999	1
90982-08281	AE111,CE110,EE111..JPP 40A,TERM.:FEMALE,GRN	04/1997 - 10/1999	1
82210C - FUSIBLE LINK
90982-08282	AE111,CE110,EE111..JPP 50A,TERM.:FEMALE,RED	04/1997 - 10/1999	1
90982-08228	AE111,CE110,EE111..JPP 50A,TERM.:MALE,RED	04/1997 - 10/1999	1
90982-08246	AE111,CE110,EE111..JPP 100A,TERM.:MALE,BLUE	04/1997 - 10/1999	1
90982-08280	AE111,CE110,EE111..JPP..RHD 30A,TERM.:FEMALE,PNK	04/1997 - 10/1999	1
90982-08281	AE111,CE110,EE111..JPP 40A,TERM.:FEMALE,GRN	04/1997 - 10/1999	1
Common parts
90099-04337
90119-06390
90119-06539
91515-G0616
Linked diagrams
8401

EE111R-ALFNKW (1997)

ILLUST NO. 7 OF 7(9704- )AE111,CDE110,CE110,EE111,ZZE11# ; (9912- )WZE110..LB ; (0001- )WZE

ILLUST NO. 4 OF 7(9704- )RHD..LB

ILLUST NO. 5 OF 7(9704- )JPP

ILLUST NO. 5 OF 7(9704- )JPP

ILLUST NO. 6 OF 7(9704- )AE111,CDE110,CE110,EE111,ZZE11# ; (9912- )WZE110..LB ; (0001- )WZE

ILLUST NO. 1 OF 7(9704- )EE111

ILLUST NO. 3 OF 7(9704- )RHD

ILLUST NO. 5 OF 7(9704- )JPP

ILLUST NO. 2 OF 7(9704- )
