EE111R-AGHNKW (1997)

Toyota Corolla Hb/Lb

Production Apr 1997 - Oct 1999
Engine 4EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )HB

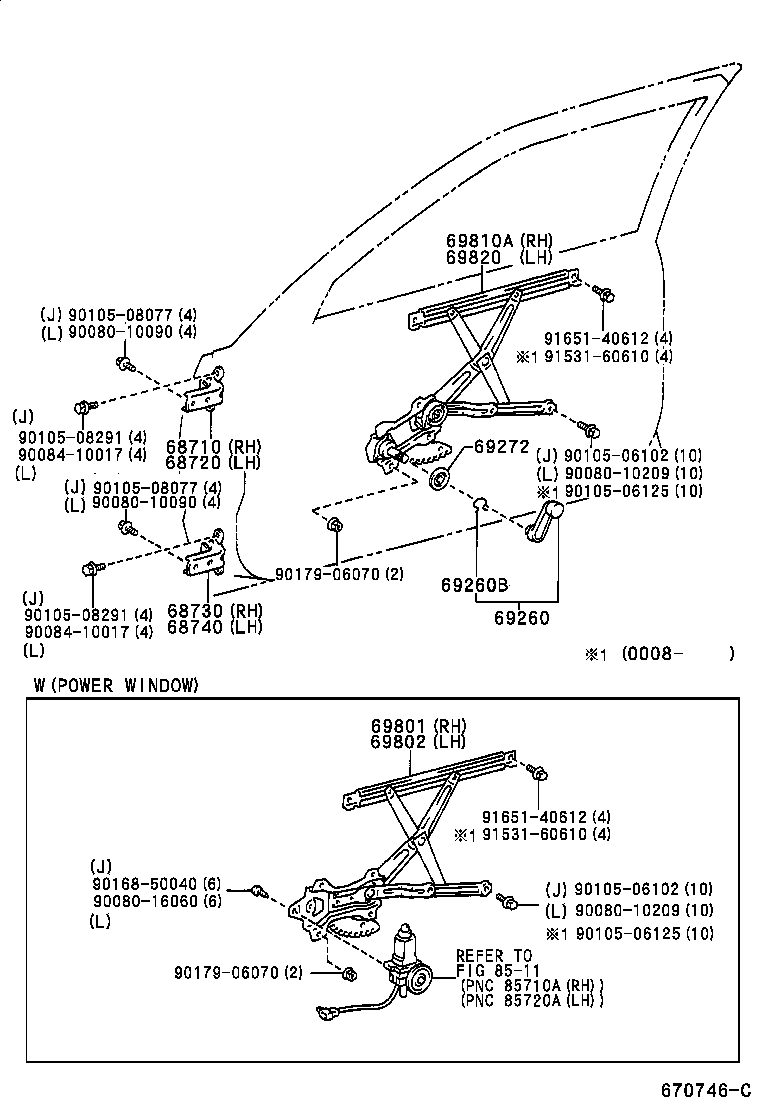

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260B 69272 69801 69802 69810A 69820 8511 9008010090 9008010090 9008010209 9008010209 9008016060 9008410017 9008410017 9010506102 9010506102 9010506125 9010506125 9010508077 9010508077 9010508291 9010508291 9016850040 9017906070 9017906070 9153160610 9153160610 9165140612 9165140612
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-12150

AE111,CE110,EE111..JPP

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-12150

AE111,CE110,EE111..JPP

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68720-12150

AE111,CE110,EE111..JPP

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68710-12150

AE111,CE110,EE111..JPP

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-12170

AE111,CE110,EE111..JPP..(G6,LUNA,TERRA)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-12170

AE111,CE110,EE111..JPP..(G6,LUNA,TERRA)

 1
Common parts
90080-10090
90080-10209
90080-16060
90084-10017
90105-06102
90105-06125
90105-08077
90105-08291
90168-50040
90179-06070
91531-60610
91651-40612
Linked diagrams
8511
