EE111L-ALMDKW (1997)
Toyota Corolla Hb/Lb
Production
Apr 1997
-
Oct 1999
Engine
4EFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9704- )4EFE

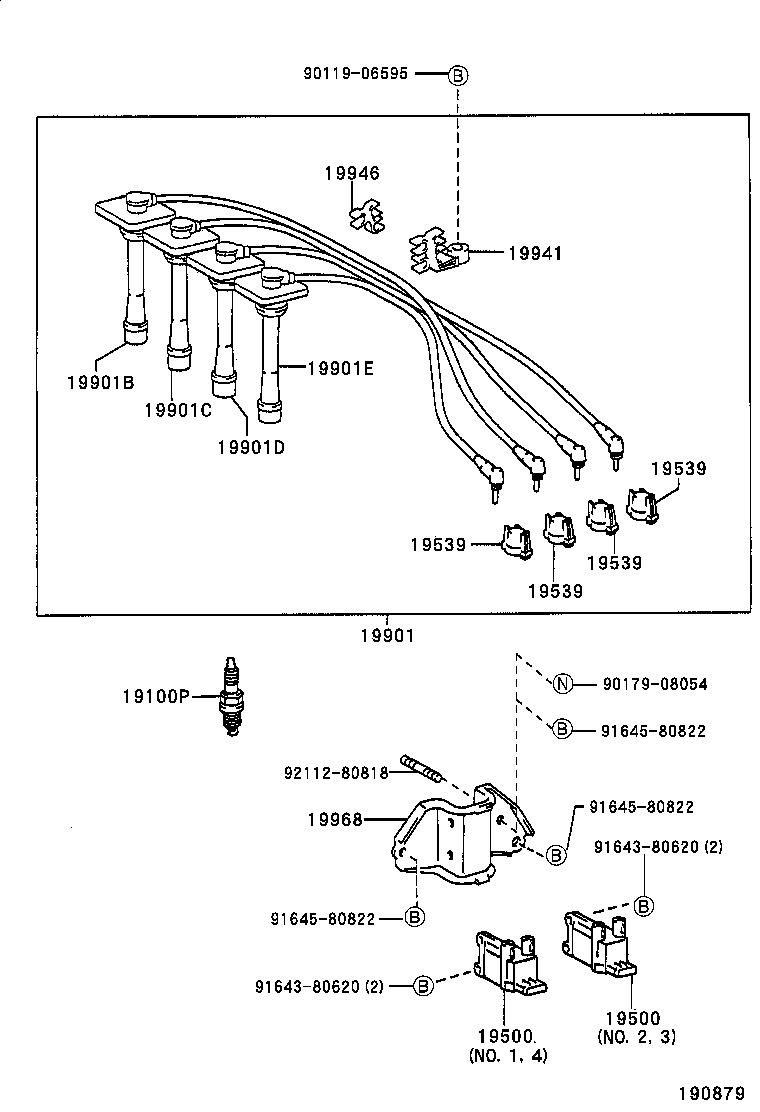

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01192 |
4EFE..EE111..JPP K16TR11 |
4 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02226 |
4EFE..EE111..JPP NO.1,4 |
1 | ||
| 90919-02220 |
4EFE..EE111..JPP NO.2,3 |
1 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02226 |
4EFE..EE111..JPP NO.1,4 |
1 | ||
| 90919-02220 |
4EFE..EE111..JPP NO.2,3 |
1 | ||
| 19539 - HOLDER, RESISTIVE CODE, NO.4 | ||||
| 19539-11020 |
4EFE..EE111..JPP |
4 | ||
| 19539 - HOLDER, RESISTIVE CODE, NO.4 | ||||
| 19539-11020 |
4EFE..EE111..JPP |
4 | ||
| 19539 - HOLDER, RESISTIVE CODE, NO.4 | ||||
| 19539-11020 |
4EFE..EE111..JPP |
4 | ||
| 19539 - HOLDER, RESISTIVE CODE, NO.4 | ||||
| 19539-11020 |
4EFE..EE111..JPP |
4 | ||
| 19901 - CORD SET, COIL & SPARK, W/RESISTIVE | ||||
| 90919-22395 |
4EFE..EE111..JPP |
1 | ||
| 19901B - CORD, SPARK PLUG RESISTIVE, NO.1 | ||||
| 90919-15510 |
4EFE..EE111..JPP |
1 | ||
| 19901C - CORD, SPARK PLUG RESISTIVE, NO.2 | ||||
| 90919-15511 |
4EFE..EE111..JPP |
1 | ||
| 19901D - CORD, SPARK PLUG RESISTIVE, NO.3 | ||||
| 90919-15512 |
4EFE..EE111..JPP |
1 | ||
| 19901E - CORD, SPARK PLUG RESISTIVE, NO.4 | ||||
| 90919-15513 |
4EFE..EE111..JPP |
1 | ||
| 19941 - CLAMP, RESISTIVE CORD, NO.1 | ||||
| 90929-01258 |
4EFE..EE111..JPP |
1 | ||
| 19946 - CLAMP, RESISTIVE CORD, NO.3 | ||||
| 90464-00561 |
4EFE..EE111..JPP |
1 | ||
| 19968 - BRACKET, IGNITION COIL | ||||
| 19968-11030 |
4EFE..EE111..JPP |
1 | ||
| Common parts | ||||
| 90119-06595 | ||||
| 90179-08054 | ||||
| 91643-80620 | ||||
| 91645-80822 | ||||
| 92112-80818 | ||||
