EE111L-ALFNKW (1997)

Toyota Corolla Hb/Lb

Production Apr 1997 - Oct 1999
Engine 4EFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9704-9910)EE111..JPP..LHD

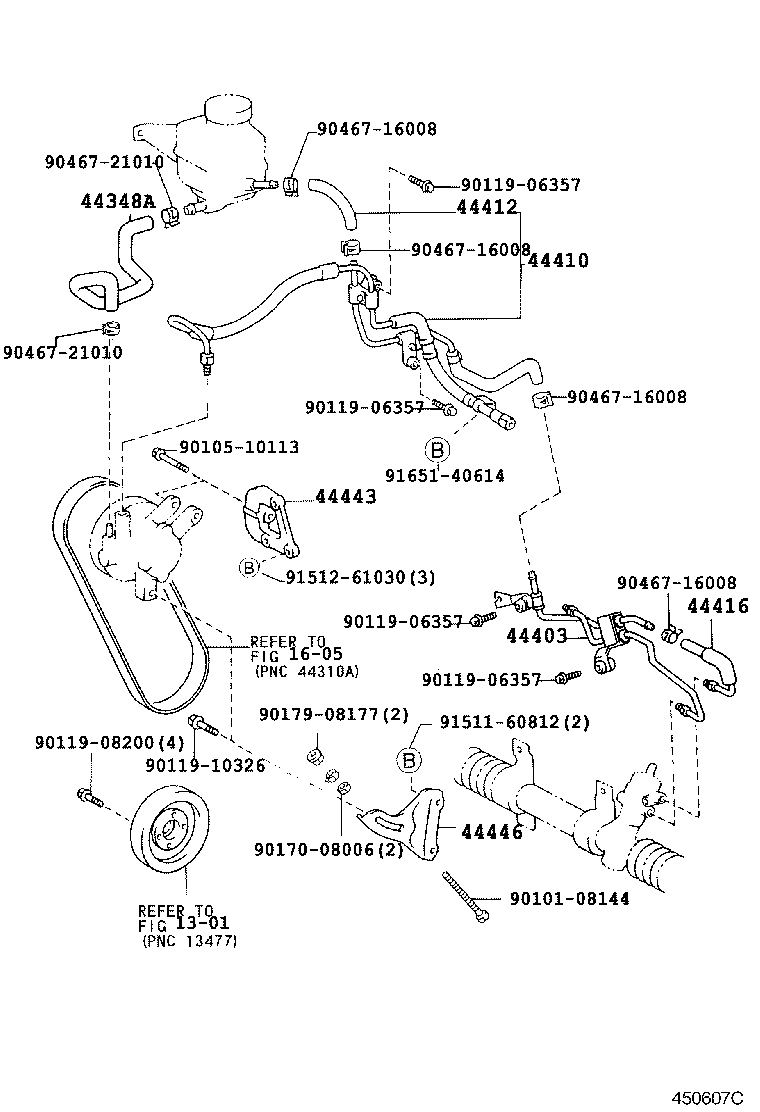

Click highlighted areas on diagram

diagram 1301 1605 44348A 44403 44410 44412 44416 44443 44446 9010108144 9010510113 9011906357 9011906357 9011906357 9011906357 9011908200 9011910326 9017008006 9017908177 9046716008 9046716008 9046716008 9046716008 9046721010 9046721010 9151160812 9151261030 9165140614
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-12070

EE111..JPP

 1
44403 - TUBE SUB-ASSY, PRESSURE FEED, NO.1
44403-12061

EE111..JPP..LHD

 1
44410 - TUBE ASSY, PRESSURE FEED
44040-12121

EE111..JPP..LHD

 1
44412 - HOSE, RETURN
44412-12200

CE110,EE111..JPP

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44406-12160

AE111,CE110,EE111..JPP..LHD

 1
44443 - BRACKET, PUMP
44443-10030

EE111..JPP

 1
44446 - STRUT, ADJUSTING
44446-10050

EE111..JPP

 1
Common parts
90101-08144
90105-10113
90119-06357
90119-08200
90119-10326
90170-08006
90179-08177
90467-16008
90467-21010
91511-60812
91512-61030
91651-40614
Linked diagrams
1301
1605
