EE111L-ALFNKW (1997)

Toyota Corolla Hb/Lb

Production Apr 1997 - Oct 1999
Engine 4EFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )4EFE

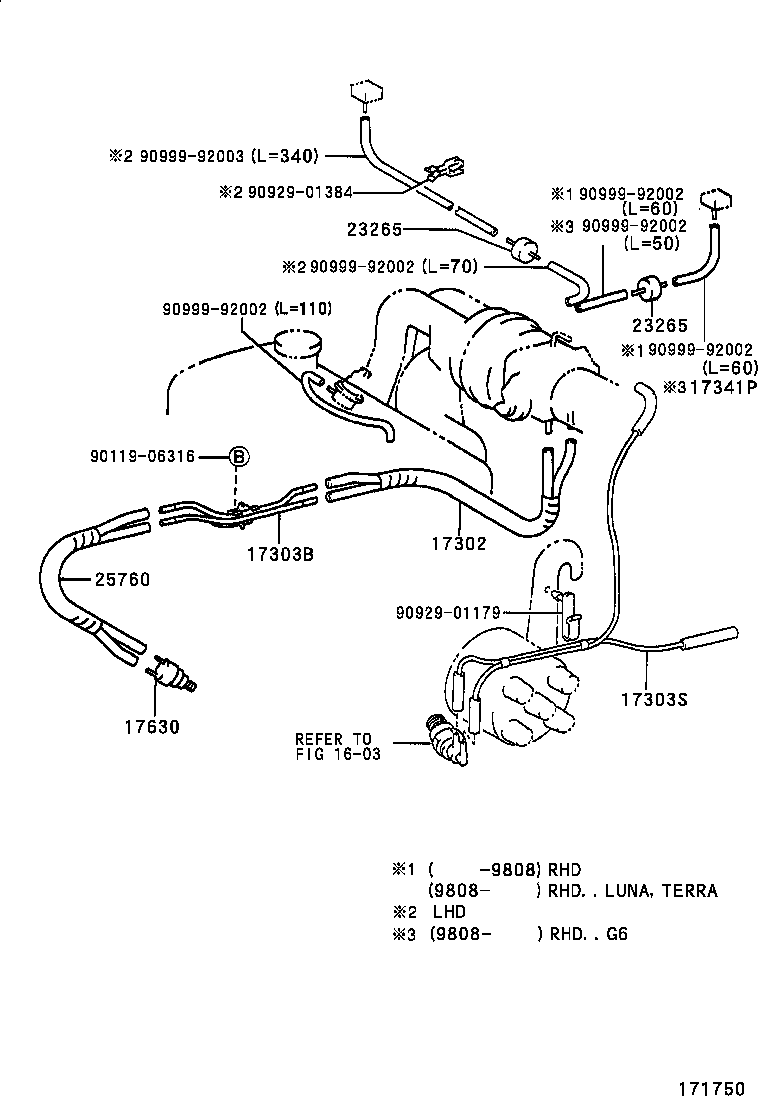

Click highlighted areas on diagram

diagram 1603 17302 17303B 17303S 17341P 17630 23265 23265 25760 9011906316 9092901179 9092901384 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003
Part # Description Qty Price
17302 - HOSE SUB-ASSY, AIR
17302-11100

4EFE..EE111..JPP

 1
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-11880

4EFE..EE111..JPP

 1
17303S - PIPE SUB-ASSY, AIR, NO.3
17303-11800

4EFE..EE111..JPP

 1
17630 - VALVE ASSY, AIR CONTROL
17630-11060

4EFE..EE111..JPP

 1
23265 - FILTER, GAS, NO.1
90917-11030

4EFE..EE111..JPP

 1
23265 - FILTER, GAS, NO.1
90917-11030

4EFE..EE111..JPP

 1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-11260

4EFE..EE111..JPP

 1
Common parts
90119-06316
90929-01179
90929-01384
90999-92002
90999-92003
Linked diagrams
1603
