EE111L-AGMDKW (1997)
Toyota Corolla Hb/Lb

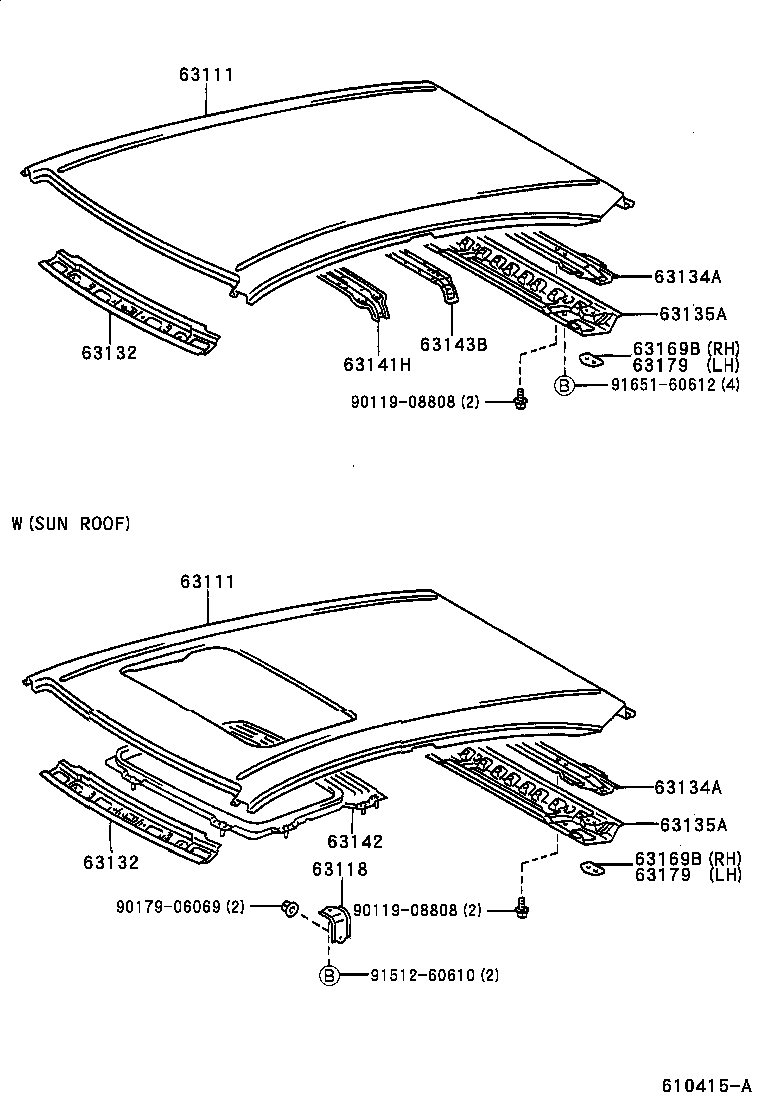

ILLUST NO. 1 OF 2(9704- )HB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63111 - PANEL, ROOF | ||||
| 63111-12750 |
AE111,CE110,EE111..HB..(G6,LUNA,TERRA) W(MOON ROOF) |
1 | ||
| 63111-12740 |
AE111,CE110,EE111..HB |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-12750 |
AE111,CE110,EE111..HB..(G6,LUNA,TERRA) W(MOON ROOF) |
1 | ||
| 63111-12740 |
AE111,CE110,EE111..HB |
1 | ||
| 63118 - SUPPORT, ROOF PANEL, RH | ||||
| 63118-12090 |
AE111,CE110,EE111..HB..(G6,LUNA,TERRA) |
2 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-12210 |
AE111,CE110,EE111..JPP |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-12210 |
AE111,CE110,EE111..JPP |
1 | ||
| 63134A - FRAME, BACK DOOR OPENING, UPPER | ||||
| 63134-12190 |
AE111,CE110,EE111..HB |
1 | ||
| 63134A - FRAME, BACK DOOR OPENING, UPPER | ||||
| 63134-12190 |
AE111,CE110,EE111..HB |
1 | ||
| 63135A - FRAME, BACK DOOR OPENING, LOWER | ||||
| 63135-12130 |
AE111,CE110,EE111..HB |
1 | ||
| 63135A - FRAME, BACK DOOR OPENING, LOWER | ||||
| 63135-12130 |
AE111,CE110,EE111..HB |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-12240 |
AE111,CE110,EE111..HB |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-12080 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-12080 |
AE111,CE110,EE111..HB |
1 | ||
| 63169B - PLATE, ROOF PANEL REINFORCEMENT, RH | ||||
| 63169-35010 |
AE111,CE110,EE111..JPP |
1 | ||
| 63169B - PLATE, ROOF PANEL REINFORCEMENT, RH | ||||
| 63169-35010 |
AE111,CE110,EE111..JPP |
1 | ||
| 63179 - PLATE, ROOF PANEL REINFORCEMENT, LH | ||||
| 63179-35010 |
AE111,CE110,EE111..JPP |
1 | ||
| 63179 - PLATE, ROOF PANEL REINFORCEMENT, LH | ||||
| 63179-35010 |
AE111,CE110,EE111..JPP |
1 | ||
| Common parts | ||||
| 90119-08808 | ||||
| 90179-06069 | ||||
| 91512-60610 | ||||
| 91651-60612 | ||||
ILLUST NO. 2 OF 2(9704- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63204-12080 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) *TT,T=4.0,GRAY |
1 | ||
| 63202H - RAIL SUB-ASSY, SLIDE ROOF | ||||
| 63202-12030 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-12130 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-12060 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) |
1 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-12280 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) FRONT |
2 | ||
| 63249-12310 |
AE111,CE110,EE111..HB..(G6,LUNA,TERRA) REAR |
2 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-12280 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) FRONT |
2 | ||
| 63249-12310 |
AE111,CE110,EE111..HB..(G6,LUNA,TERRA) REAR |
2 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-12080 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-12130 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-12120 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) |
1 | ||
| 63233C - PANEL, SLIDING ROOF HOUSING | ||||
| 63233-12080 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) |
1 | ||
| 63239 - STOPPER, SLIDING ROOF PANEL | ||||
| 63239-12030 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) |
2 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-12100 |
AE111,CE110,EE111..HB..(G6,LUNA,TERRA) |
1 | ||
| 63242A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH | ||||
| 63241-12100 |
AE111,CE110,EE111..HB..(G6,LUNA,TERRA) |
1 | ||
| 63245D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH | ||||
| 63245-12080 |
AE111,CE110,EE111..HB..(G6,LUNA,TERRA) |
1 | ||
| 63246D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH | ||||
| 63245-12080 |
AE111,CE110,EE111..HB..(G6,LUNA,TERRA) |
1 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-12160 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-12100 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) |
1 | ||
| 63265B - GEAR, SLIDING ROOF DRIVE | ||||
| 63265-12040 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) |
1 | ||
| 63267A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, RH | ||||
| 63267-12040 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) |
1 | ||
| 63268A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, LH | ||||
| 63268-12040 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) |
1 | ||
| 63279D - STOPPER, SLIDING ROOF GUIDE RAIL | ||||
| 63279-12030 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) |
2 | ||
| 63625 - BLOCK, SLIDING ROOF GUIDE, RH | ||||
| 63625-12040 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) |
1 | ||
| 63626 - BLOCK, SLIDING ROOF GUIDE, LH | ||||
| 63626-12040 |
AE111,CE110,EE111..JPP..(G6,LUNA,TERRA) |
1 | ||
| Common parts | ||||
| 90080-10095 | ||||
| 90119-06357 | ||||
| 90148-60021 | ||||
| 90148-60024 | ||||
| 90149-40031 | ||||
| 90149-40032 | ||||
| 90154-30003 | ||||
| 90155-40001 | ||||
| 90155-40002 | ||||
| 90159-50336 | ||||
| 90168-40027 | ||||
| 90179-06083 | ||||
| 90179-06216 | ||||
| 90464-00161 | ||||
| 90467-06077 | ||||
| 90467-14001 | ||||
| 90480-26020 | ||||
| 90950-01866 | ||||
| 91511-G0614 | ||||
| 96160-00400 | ||||
