EE111L-AGHDKW (1997)

Toyota Corolla Hb/Lb

Production Apr 1997 - Oct 1999
Engine 4EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )HB

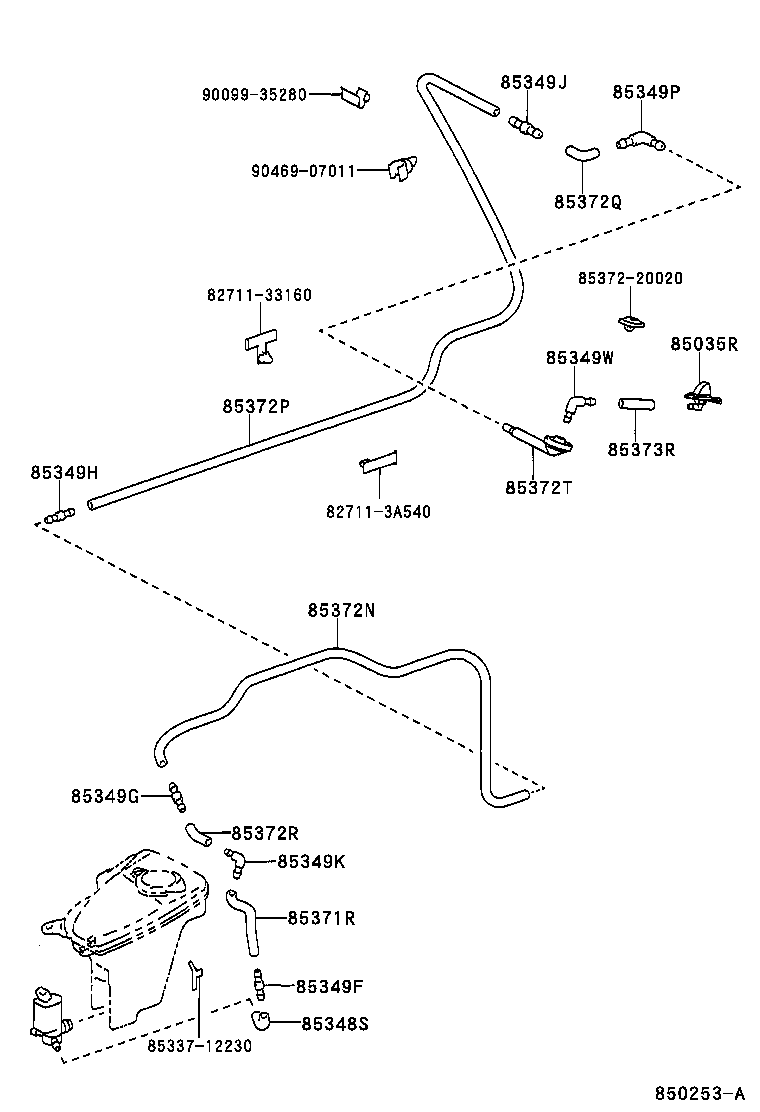

Click highlighted areas on diagram

diagram 8271133160 827113A540 85035R 8533712230 85348S 85349F 85349G 85349H 85349J 85349K 85349P 85349W 85371R 8537220020 85372N 85372P 85372Q 85372R 85372T 85373R 9009935280 9046907011
Part # Description Qty Price
85035R - NOZZLE SUB-ASSY, REAR WASHER
85395-12040

AE111,CE110,EE111..HB

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85336-12230

AE111,CE110,EE111..JPP

 1
85349F - JOINT, REAR WASHER HOSE, NO.1
85375-10260

AE111,CE110,EE111..JPP

 1
85349G - JOINT, REAR WASHER HOSE, NO.2
85349-89122

AE111,CE110,EE111..JPP

 1
85349H - JOINT, REAR WASHER HOSE, NO.3
85349-89122

AE111,CE110,EE111..JPP

 1
85349J - JOINT, REAR WASHER HOSE, NO.4
85349-89122

AE111,CE110,EE111..JPP

 1
85349K - JOINT, REAR WASHER ELBOW, NO.2
85317-12230

AE111,CE110,EE111..JPP

 1
85349P - JOINT, REAR WASHER ELBOW, NO.3
85355-20200

AE111,CE110,EE111..HB

 1
85349W - JOINT, REAR WASHER ELBOW, NO.4
85355-20200

AE111,CE110,EE111..JPP

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-07001

AE111,CE110,EE111..JPP

*H,L=130

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90446-07001

AE111,CE110,EE111..HB

*H,L=1440

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90099-33589

AE111,CE110,EE111..HB

*H,L=2950

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90099-33299

AE111,CE110,EE111..HB

*H,L=70

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33080

AE111,CE110,EE111..JPP

*H,L=70

 1
85372T - GROMMET, WASHER
85372-20040

AE111,CE110,EE111..HB

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33299

AE111,CE110,EE111..HB

*H,L=140

 1
Common parts
82711-33160
82711-3A540
85337-12230
85372-20020
90099-35280
90469-07011
