EE111L-AGFNKW (1997)

Toyota Corolla Hb/Lb

Production Apr 1997 - Oct 1999
Engine 4EFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )HB

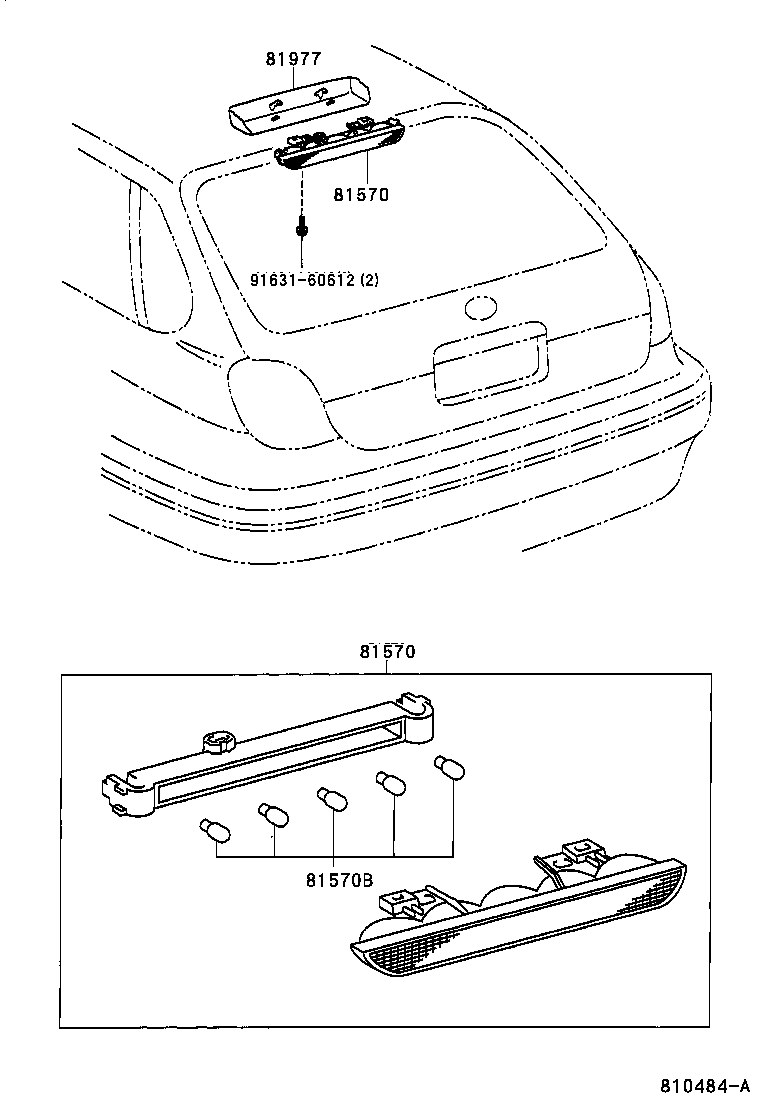

Click highlighted areas on diagram

diagram 81570 81570 81570B 81977 9163160612
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-12320

AE111,CE110,EE111..HB

 1
81570 - LAMP ASSY, CENTER STOP
81570-12320

AE111,CE110,EE111..HB

 1
81570B - BULB (FOR CENTER STOP LAMP)
99132-12050

AE111,CE110,EE111..HB

12V 5W

 5
81977 - COVER, CENTER STOP LAMP
81977-12170C0

AE111,CE110,EE111..HB..(G6,STD)

BLACK,TRIM1#

 1
Common parts
91631-60612
