EE111L-AGFNKW (1997)
Toyota Corolla Hb/Lb
Production
Apr 1997
-
Oct 1999
Engine
4EFE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9704- )6F

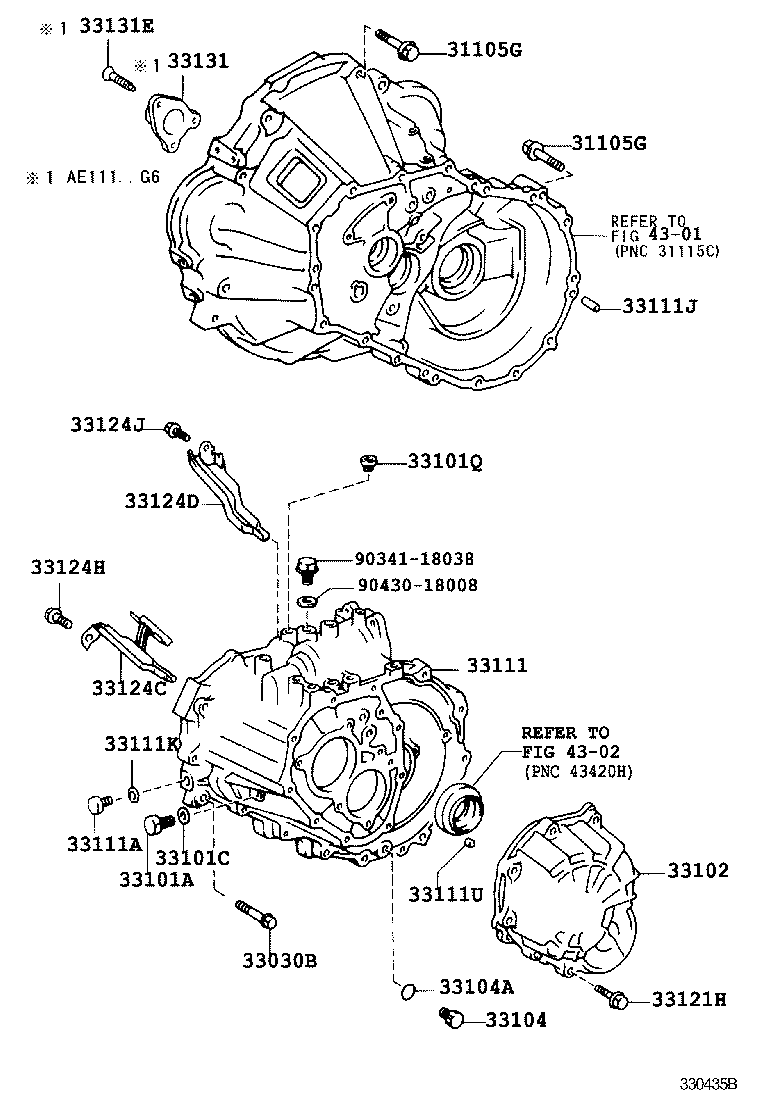

Click highlighted areas on diagram
C161,C162
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90105-10097 |
EE111..JPP..MTM *10-1.25PX60-22 |
1 | ||
| 91619-61260 |
EE111..JPP..MTM *12-1.25PX60-30 |
3 | ||
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90105-10097 |
EE111..JPP..MTM *10-1.25PX60-22 |
1 | ||
| 91619-61260 |
EE111..JPP..MTM *12-1.25PX60-30 |
3 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08086 |
AE111..G6;EE111..JPP..MTM *8-1.25PX45-27.5 |
16 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18038 |
AE111,EE111..G6 |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
AE111,CE110,EE111..JPP..MTM |
1 | ||
| 33101Q - PLUG, NO.1(FOR TRANSMISSION CASE) | ||||
| 90341-14008 |
AE111,EE111..G6 |
1 | ||
| 33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE | ||||
| 33102-12050 |
AE111,EE111..G6 |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
AE111,CE110,EE111..JPP..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
AE111,CE110,EE111..JPP..MTM |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-12220 |
AE111,EE111..G6 |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18023 |
AE111,EE111..G6 |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
AE111,EE111..JPP..MTM L=23,OD=8 |
4 | ||
| 33111K - GASKET(FOR TRANSMISSION CASE) | ||||
| 90430-18008 |
AE111,EE111..G6 |
1 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
EE111..G6;AE111..JPP..MTM L=11,OD=11 |
2 | ||
| 33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER) | ||||
| 91611-60835 |
EE111..G6;AE111..JPP..MTM |
9 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-10012 |
AE111..G6;EE111..JPP..MTM |
1 | ||
| 33124D - PIPE, OIL RECEIVER, NO.2(MTM) | ||||
| 33124-12050 |
AE111,EE111..G6 |
1 | ||
| 33124H - BOLT(FOR OIL RECEIVER PIPE) | ||||
| 91611-60820 |
AE111,EE111..JPP..MTM |
1 | ||
| 33124J - BOLT, W/WASHER | ||||
| 91611-60820 |
AE111,EE111..JPP..MTM |
1 | ||
| Common parts | ||||
| 90341-18038 | ||||
| 90430-18008 | ||||
| Linked diagrams | ||||
| 4301 | ||||
| 4302 | ||||
