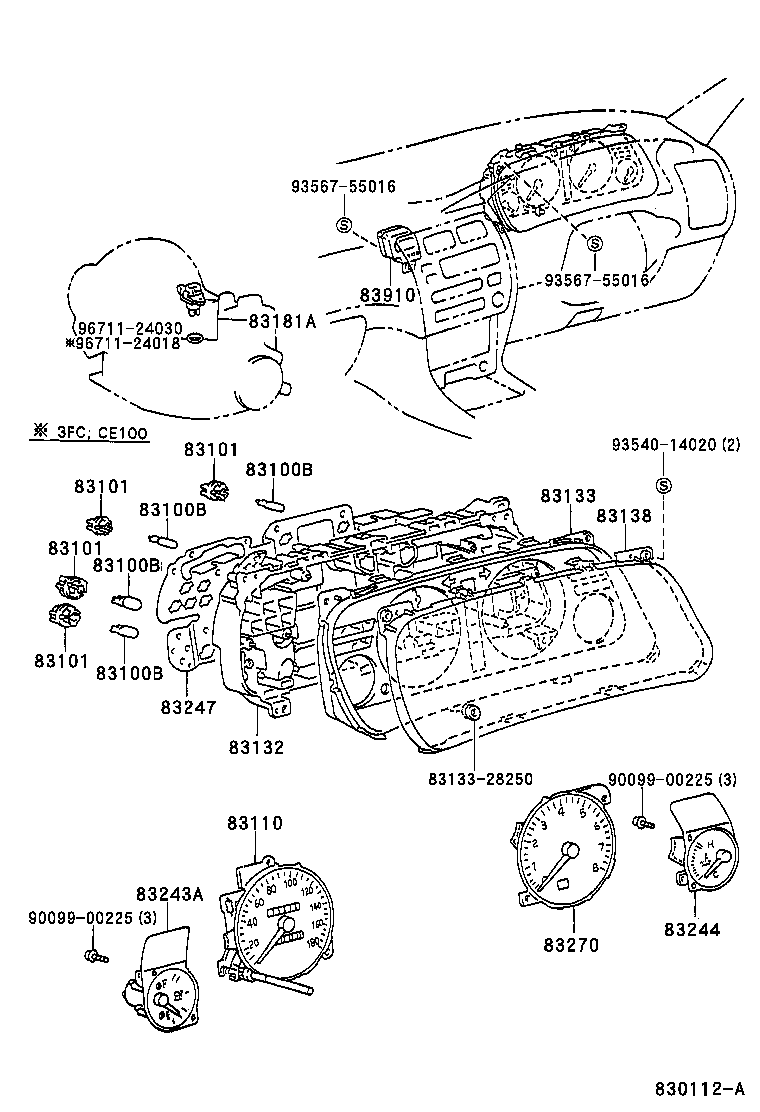

Toyota Corolla hb/lb EE101 METER

Part #	Description	Period	Qty
83100B - BULB, COMBINATION METER, NO.1
83109-12030	AE10#,CE100,EE10# 12V 3.4W,BLUE CAP	05/1992 - 12/2999	1
90981-11018	AE10#,CE100,EE10# 12V 1.2W W/O SOCKET	05/1992 - 12/2999	1
99132-12034	AE10#,CE100,EE10# 12V 3.4W	05/1992 - 12/2999	1
83119-24430	AE102;AE101,EE101..RHD 12V 1.4W BLUE CAP	05/1992 - 05/1995	1
83100B - BULB, COMBINATION METER, NO.1
83109-12030	AE10#,CE100,EE10# 12V 3.4W,BLUE CAP	05/1992 - 12/2999	1
90981-11018	AE10#,CE100,EE10# 12V 1.2W W/O SOCKET	05/1992 - 12/2999	1
99132-12034	AE10#,CE100,EE10# 12V 3.4W	05/1992 - 12/2999	1
83119-24430	AE102;AE101,EE101..RHD 12V 1.4W BLUE CAP	05/1992 - 05/1995	1
83100B - BULB, COMBINATION METER, NO.1
83109-12030	AE10#,CE100,EE10# 12V 3.4W,BLUE CAP	05/1992 - 12/2999	1
90981-11018	AE10#,CE100,EE10# 12V 1.2W W/O SOCKET	05/1992 - 12/2999	1
99132-12034	AE10#,CE100,EE10# 12V 3.4W	05/1992 - 12/2999	1
83119-24430	AE102;AE101,EE101..RHD 12V 1.4W BLUE CAP	05/1992 - 05/1995	1
83100B - BULB, COMBINATION METER, NO.1
83109-12030	AE10#,CE100,EE10# 12V 3.4W,BLUE CAP	05/1992 - 12/2999	1
90981-11018	AE10#,CE100,EE10# 12V 1.2W W/O SOCKET	05/1992 - 12/2999	1
99132-12034	AE10#,CE100,EE10# 12V 3.4W	05/1992 - 12/2999	1
83119-24430	AE102;AE101,EE101..RHD 12V 1.4W BLUE CAP	05/1992 - 05/1995	1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040	EE101..3D;EE101..LB;AE101..LB..GLI;EE101..HB..5D..5F;EE101..5D..LHD..3FC;AE101..HB..LHD..5F..GLI;AE10#,CE100,EE100..GTI,SI,STD,XL,XLI 12V 1.4W	05/1992 - 04/1997	1
83101-14030	EE101..3D;EE101..LB;AE101..LB..GLI;EE101..HB..5D..5F;EE101..5D..LHD..3FC;AE101..HB..LHD..5F..GLI;AE10#,CE100,EE100..GTI,SI,STD,XL,XLI 12V 3.4W	05/1992 - 04/1997	1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040	EE101..3D;EE101..LB;AE101..LB..GLI;EE101..HB..5D..5F;EE101..5D..LHD..3FC;AE101..HB..LHD..5F..GLI;AE10#,CE100,EE100..GTI,SI,STD,XL,XLI 12V 1.4W	05/1992 - 04/1997	1
83101-14030	EE101..3D;EE101..LB;AE101..LB..GLI;EE101..HB..5D..5F;EE101..5D..LHD..3FC;AE101..HB..LHD..5F..GLI;AE10#,CE100,EE100..GTI,SI,STD,XL,XLI 12V 3.4W	05/1992 - 04/1997	1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040	EE101..3D;EE101..LB;AE101..LB..GLI;EE101..HB..5D..5F;EE101..5D..LHD..3FC;AE101..HB..LHD..5F..GLI;AE10#,CE100,EE100..GTI,SI,STD,XL,XLI 12V 1.4W	05/1992 - 04/1997	1
83101-14030	EE101..3D;EE101..LB;AE101..LB..GLI;EE101..HB..5D..5F;EE101..5D..LHD..3FC;AE101..HB..LHD..5F..GLI;AE10#,CE100,EE100..GTI,SI,STD,XL,XLI 12V 3.4W	05/1992 - 04/1997	1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040	EE101..3D;EE101..LB;AE101..LB..GLI;EE101..HB..5D..5F;EE101..5D..LHD..3FC;AE101..HB..LHD..5F..GLI;AE10#,CE100,EE100..GTI,SI,STD,XL,XLI 12V 1.4W	05/1992 - 04/1997	1
83101-14030	EE101..3D;EE101..LB;AE101..LB..GLI;EE101..HB..5D..5F;EE101..5D..LHD..3FC;AE101..HB..LHD..5F..GLI;AE10#,CE100,EE100..GTI,SI,STD,XL,XLI 12V 3.4W	05/1992 - 04/1997	1
83110 - SPEEDOMETER ASSY
83110-1E861	EE101..RHD..GLI	05/1994 - 12/2999	1
83110-1E860	EE101..RHD..GLI	05/1992 - 05/1994	1
83132 - CASE, COMBINATION METER
83132-1A530	AE101,EE101..RHD..(GLI,SI)	05/1992 - 05/1995	1
83133 - PLATE, COMBINATION METER, NO.1
83133-1H030	AE101,EE101..RHD	05/1992 - 05/1995	1
83138 - GLASS, SPEEDOMETER
83138-1A110	AE101,EE101..RHD	05/1992 - 05/1995	1
83181A - SENSOR, SPEEDOMETER
83181-12020	AE10#,EE10#..4FC,5F	05/1992 - 12/2999	1
83243A - GAUGE SUB-ASSY, FUEL RECEIVER
83243-1H470	AE101,EE101..RHD..(GLI,SI)	05/1992 - 05/1993	1
83243-1H471	AE101,EE101..RHD..(GLI,SI)	05/1993 - 05/1995	1
83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
83244-1A890	AE101,EE101..RHD..(GLI,SI)	05/1992 - 05/1995	1
83247 - PLATE, METER CIRCUIT
83149-12150	EE101..RHD..GLI	05/1992 - 12/2999	1
83270 - TACHOMETER ASSY, ENGINE
83242-1E710	AE101,EE101..RHD	05/1992 - 05/1995	1
83910 - CLOCK ASSY
83910-12460	AE10#,CE100,EE101..RHD JECO	05/1992 - 12/2999	1
83910-12480	AE10#,CE100,EE101..RHD RHYTHM	05/1992 - 12/2999	1
Common parts
83133-28250
90099-00225
93540-14020
93567-55016
96711-24018
96711-24030

EE101R-ALMNKW (1992)

(9205- )AE101,EE101..RHD
