EE101R-ALHNKW (1992)

Toyota Corolla Hb/Lb

Production May 1992 - May 1995
Engine 4EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9205- )LB

Click highlighted areas on diagram

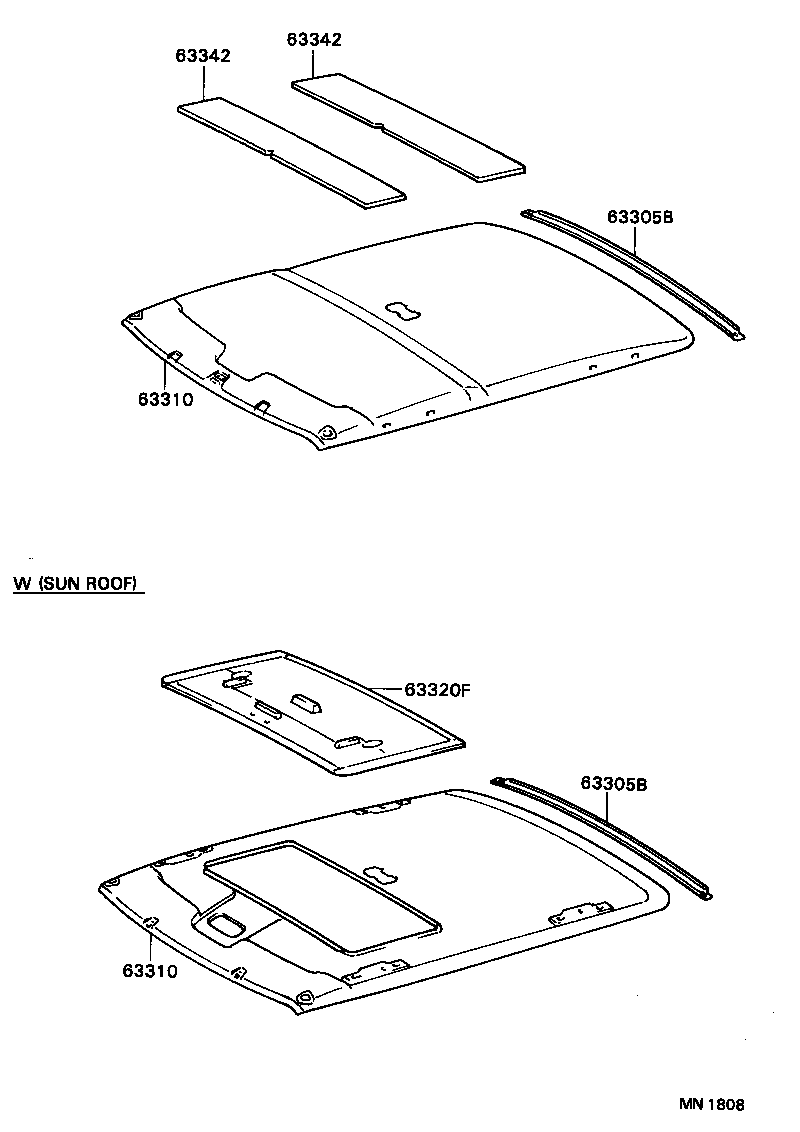

diagram 63305B 63305B 63310 63310 63320F 63342 63342
Part # Description Qty Price
63305B - TRIM SUB-ASSY, ROOF HEADLINING, REAR
63305-12170B0

AE10#,CE100,EE10#..LB

SHADOW GRAY,TRIM1#

 1
63305-12170J0

AE101,CE100,EE10#..LB

DARK BLUE,TRIM8#

 1
63305B - TRIM SUB-ASSY, ROOF HEADLINING, REAR
63305-12170B0

AE10#,CE100,EE10#..LB

SHADOW GRAY,TRIM1#

 1
63305-12170J0

AE101,CE100,EE10#..LB

DARK BLUE,TRIM8#

 1
63310 - HEADLINING ASSY, ROOF
63310-1A410J0

AE101,CE100,EE10#..LB

LIGHT BLUE,TRIM8#

 1
63310-1A410B0

AE10#,CE100,EE10#..LB

LIGHT GRAY,TRIM1#

 1
63310-1A420B0

AE10#,CE100,EE101..LB..RHD

W(SUN ROOF),LIGHT GRAY,TRIM1#

 1
63310-1A420J0

AE101,CE100,EE101..LB..RHD

W(SUN ROOF),LIGHT BLUE,TRIM8#

 1
63310 - HEADLINING ASSY, ROOF
63310-1A410J0

AE101,CE100,EE10#..LB

LIGHT BLUE,TRIM8#

 1
63310-1A410B0

AE10#,CE100,EE10#..LB

LIGHT GRAY,TRIM1#

 1
63310-1A420B0

AE10#,CE100,EE101..LB..RHD

W(SUN ROOF),LIGHT GRAY,TRIM1#

 1
63310-1A420J0

AE101,CE100,EE101..LB..RHD

W(SUN ROOF),LIGHT BLUE,TRIM8#

 1
63320F - HEADLINING ASSY, SUN ROOF
63320-12110S3

AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI

LIGHT GRAY,TRIM1#

 1
63320-12110W5

AE101,CE100,EE10#..GLI,XL,XLI

LIGHT BLUE,TRIM8#

 1
63342 - PAD, ROOF SILENCER, NO.2
63342-12060

AE10#,CE100,EE10#..LB

 2
63342 - PAD, ROOF SILENCER, NO.2
63342-12060

AE10#,CE100,EE10#..LB

 2
