EE101R-ALHNKW (1992)
Toyota Corolla Hb/Lb
Production
May 1992
-
May 1995
Engine
4EFE
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9205-9505)LB

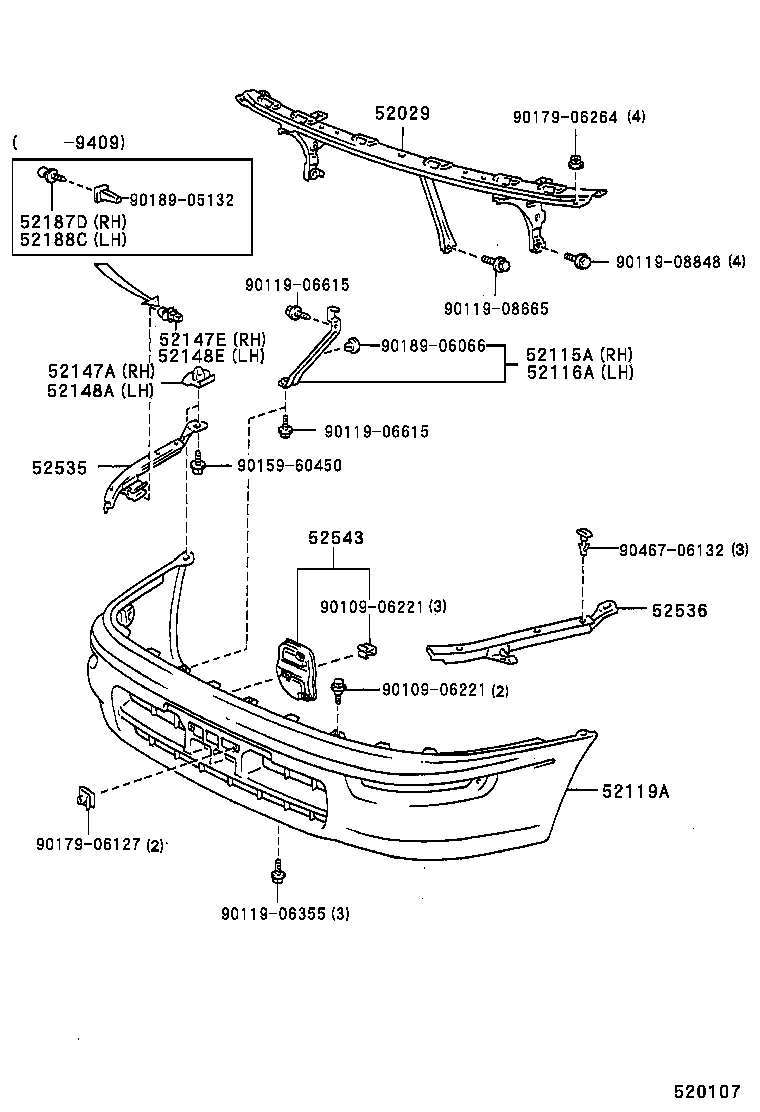

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER | ||||
| 52029-12020 |
AE10#,CE100,EE10#..LB |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-12350 |
AE10#,CE100,EE10#..LB |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-12280 |
AE10#,CE100,EE10#..LB |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-1E190 |
AE10#,CE100,EE10#..LB |
1 | ||
| 52147A - BRACKET, FRONT BUMPER STAY, RH | ||||
| 52147-12170 |
AE10#,CE100,EE10# |
1 | ||
| 52147E - BRACKET, FRONT BUMPER MOUNTING, RH | ||||
| 52148-12130 |
AE10#,CE100,EE10# |
1 | ||
| 52148A - BRACKET, FRONT BUMPER STAY, LH | ||||
| 52147-12170 |
AE10#,CE100,EE10# |
1 | ||
| 52148E - BRACKET, FRONT BUMPER MOUNTING, LH | ||||
| 52148-12130 |
AE10#,CE100,EE10# |
1 | ||
| 52187D - GUIDE, FRONT BUMPER LOCATION, RH | ||||
| 52187-12140 |
AE10#,CE100,EE10# |
1 | ||
| 52188C - GUIDE, FRONT BUMPER LOCATION, LH | ||||
| 52187-12140 |
AE10#,CE100,EE10# |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52503-12010 |
AE10#,CE100,EE10#..LB |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52504-12010 |
AE10#,CE100,EE10#..LB |
1 | ||
| Common parts | ||||
| 90109-06221 | ||||
| 90119-06355 | ||||
| 90119-06615 | ||||
| 90119-08665 | ||||
| 90119-08848 | ||||
| 90159-60450 | ||||
| 90179-06127 | ||||
| 90179-06264 | ||||
| 90189-05132 | ||||
| 90189-06066 | ||||
| 90467-06132 | ||||
