EE101R-ALHNKW (1992)

Toyota Corolla Hb/Lb

Production May 1992 - May 1995
Engine 4EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9205- )

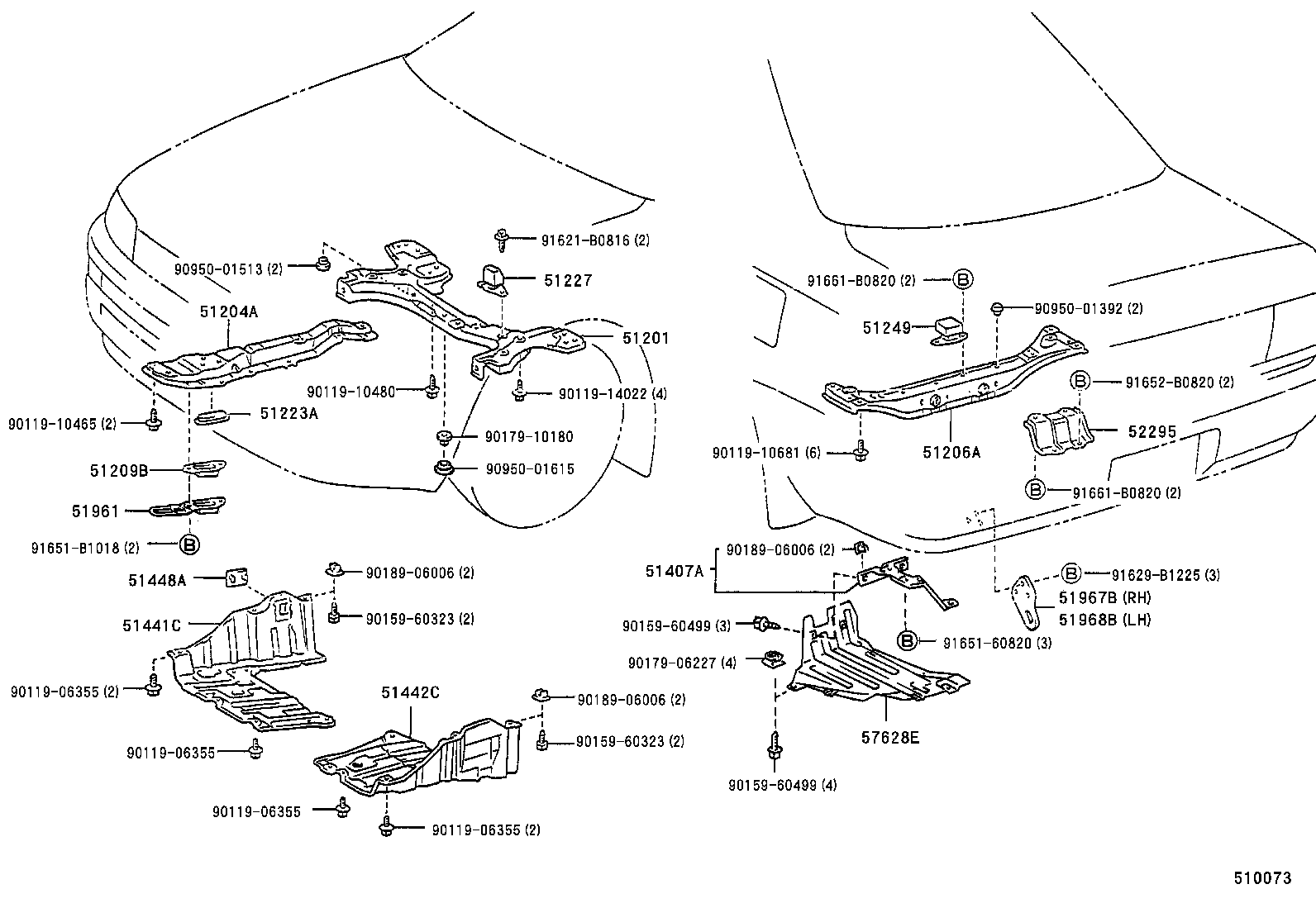

Click highlighted areas on diagram

diagram 51201 51204A 51206A 51209B 51223A 51227 51249 51407A 51441C 51442C 51448A 51961 51967B 51968B 52295 57628E 9011906355 9011906355 9011906355 9011906355 9011910465 9011910480 9011910681 9011914022 9015960323 9015960323 9015960499 9015960499 9017906227 9017910180 9018906006 9018906006 9018906006 9095001392 9095001513 9095001615 91621B0816 91629B1225 9165160820 91651B1018 91652B0820 91661B0820 91661B0820
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-12320

AE101,CE100,EE10#

 1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-12080

AE10#,CE100,EE10#

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-12060

AE10#,CE100,EE10#

 1
51206-12040

AE10#,CE100,EE10#

 1
51209B - PROTECTOR SUB-ASSY, CENTER MEMBER, FRONT
51209-12010

AE101,CE100,EE10#

 1
51223A - COVER, ENGINE MOUNTING HOLE
51223-12010

AE10#,CE100,EE10#

 1
51227 - WEIGHT, FRONT SUSPENSION MEMBER DAMPER
51227-12040

AE10#,CE100,EE10#

 1
51249 - DAMPER, REAR SUSPENSION MEMBER
51249-12060

AE101,CE100,EE10#..LB

 1
51441C - COVER, ENGINE UNDER, RH
51441-12140

AE10#,CE100,EE10#

 1
51442C - COVER, ENGINE UNDER, LH
51442-12090

AE101,EE101..ATM

 1
51448A - COVER, ENGINE SIDE UNDER, RH
51448-20010

AE10#,CE100,EE10#

 1
51967B - HOOK, TRANSPORT, REAR RH
51967-12220

AE10#,CE100,EE10#..LB

 1
51968B - HOOK, TRANSPORT, REAR LH
51968-12110

AE10#,CE100,EE10#..LB

 1
52295 - BRACE, REAR SUSPENSION MEMBER, RH
52295-12010

AE10#,CE100,EE10#

 1
Common parts
90119-06355
90119-10465
90119-10480
90119-10681
90119-14022
90159-60323
90159-60499
90179-06227
90179-10180
90189-06006
90950-01392
90950-01513
90950-01615
91621-B0816
91629-B1225
91651-60820
91651-B1018
91652-B0820
91661-B0820
