EE101R-AGMNKW (1992)

Toyota Corolla Hb/Lb

Production May 1992 - Apr 1997
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9205- )HB

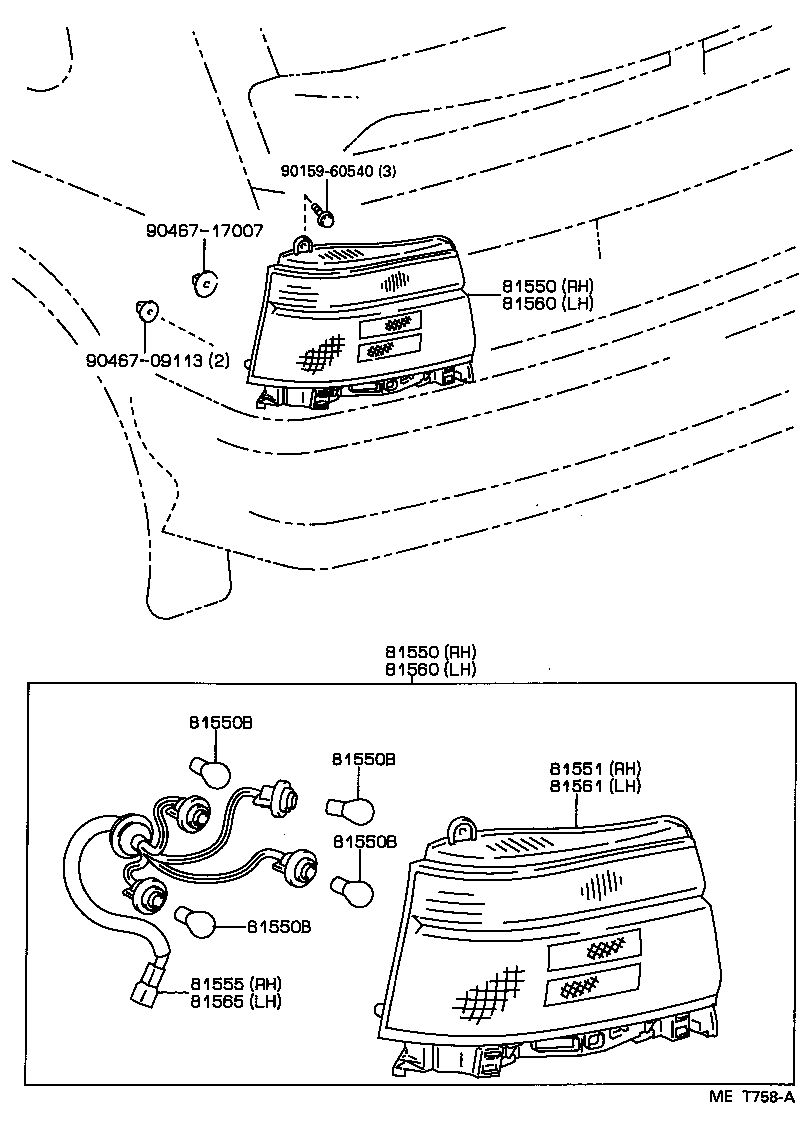

Click highlighted areas on diagram

diagram 81550 81550 81550B 81550B 81550B 81550B 81551 81555 81560 81560 81561 81565 9015960540 9046709113 9046717007
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-1A740

AE10#,CE100,EE101..HB..RHD

 1
81550-1A741

AE10#,CE100,EE101..HB..RHD

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-1A740

AE10#,CE100,EE101..HB..RHD

 1
81550-1A741

AE10#,CE100,EE101..HB..RHD

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

AE10#,CE100,EE10#..HB

12V 21W,TURN,BACK OR RR FOG

 5
99132-21210

AE10#,CE100,EE10#

12V 21/5W,TAIL & STOP

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

AE10#,CE100,EE10#..HB

12V 21W,TURN,BACK OR RR FOG

 5
99132-21210

AE10#,CE100,EE10#

12V 21/5W,TAIL & STOP

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

AE10#,CE100,EE10#..HB

12V 21W,TURN,BACK OR RR FOG

 5
99132-21210

AE10#,CE100,EE10#

12V 21/5W,TAIL & STOP

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

AE10#,CE100,EE10#..HB

12V 21W,TURN,BACK OR RR FOG

 5
99132-21210

AE10#,CE100,EE10#

12V 21/5W,TAIL & STOP

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-1A740

AE10#,CE100,EE101..HB..RHD

 1
81551-1A741

AE10#,CE100,EE101..HB..RHD

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-1A740

AE10#,CE100,EE101..HB..RHD

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-1A681

AE10#,CE100,EE101..HB..RHD

 1
81560-1A680

AE10#,CE100,EE101..HB..RHD

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-1A681

AE10#,CE100,EE101..HB..RHD

 1
81560-1A680

AE10#,CE100,EE101..HB..RHD

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-1A681

AE10#,CE100,EE101..HB..RHD

 1
81561-1A680

AE10#,CE100,EE101..HB..RHD

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-1A680

AE10#,CE100,EE101..HB..RHD

 1
Common parts
90159-60540
90467-09113
90467-17007
