EE101R-AGMDKW (1992)

Toyota Corolla Hb/Lb

Production May 1992 - Apr 1997
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9205- )HB

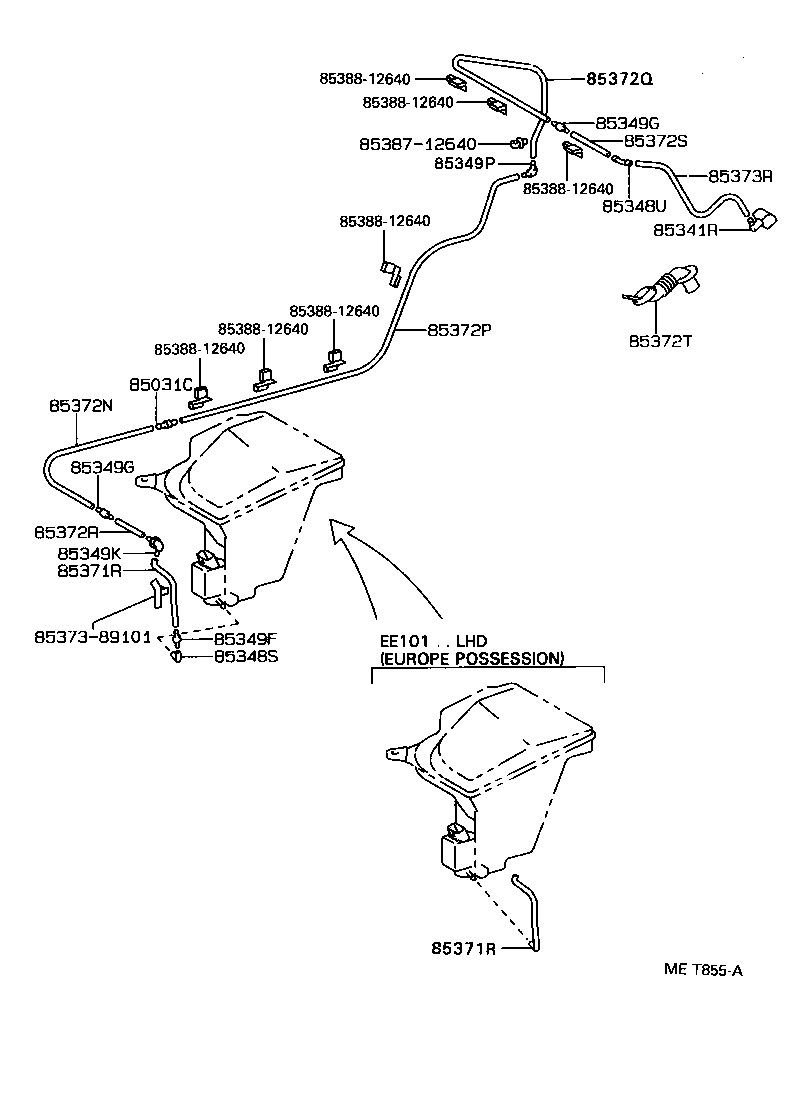

Click highlighted areas on diagram

diagram 85031C 85341R 85348S 85348U 85349F 85349G 85349G 85349K 85349P 85371R 85371R 85372N 85372P 85372Q 85372R 85372S 85372T 8537389101 85373R 8538712640 8538812640 8538812640 8538812640 8538812640 8538812640 8538812640 8538812640
Part # Description Qty Price
85031C - VALVE SUB-ASSY, WASHER
85375-12520

AE101,CE100,EE101

 1
85031-30010

AE10#,CE100,EE10#

 1
85341R - NOZZLE ASSY, WASHER
85395-12020

AE10#,CE100,EE10#..HB

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85336-12230

AE10#,CE100,EE101

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85349-89122

AE10#,CE100,EE10#..HB

 1
85355-20080

AE10#,CE100,EE10#

 1
85349F - JOINT, REAR WASHER HOSE, NO.1
85375-10260

AE10#,CE100,EE101

 1
85349G - JOINT, REAR WASHER HOSE, NO.2
85349-89122

AE10#,CE100,EE10#

 2
85349G - JOINT, REAR WASHER HOSE, NO.2
85349-89122

AE10#,CE100,EE10#

 2
85349K - JOINT, REAR WASHER ELBOW, NO.2
85317-12230

AE10#,CE100,EE10#

 1
85349P - JOINT, REAR WASHER ELBOW, NO.3
85355-20200

AE10#,CE100,EE10#..HB

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-07001

AE10#,CE100,EE101

*H,L=130

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-07001

AE10#,CE100,EE101

*H,L=130

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90446-07001

AE10#,CE100,EE10#..HB

*H,L=1440

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90099-33589

AE10#,CE100,EE10#..HB

L=2350

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90446-07001

AE10#,CE100,EE10#..HB

*H,L=940

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33080

AE10#,CE100,EE10#

*H,L=70

 1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
90099-33299

AE10#,CE100,EE10#..HB

*H,L=90

 1
85372T - GROMMET, WASHER
85373-13010

AE10#,CE100,EE10#..HB

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33299

AE10#,CE100,EE10#..HB

*H,L=250

 1
Common parts
85373-89101
85387-12640
85388-12640
