EE101R-AGMDKW (1992)
Toyota Corolla Hb/Lb
Production
May 1992
-
Apr 1997
Engine
4EFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9205- )RHD

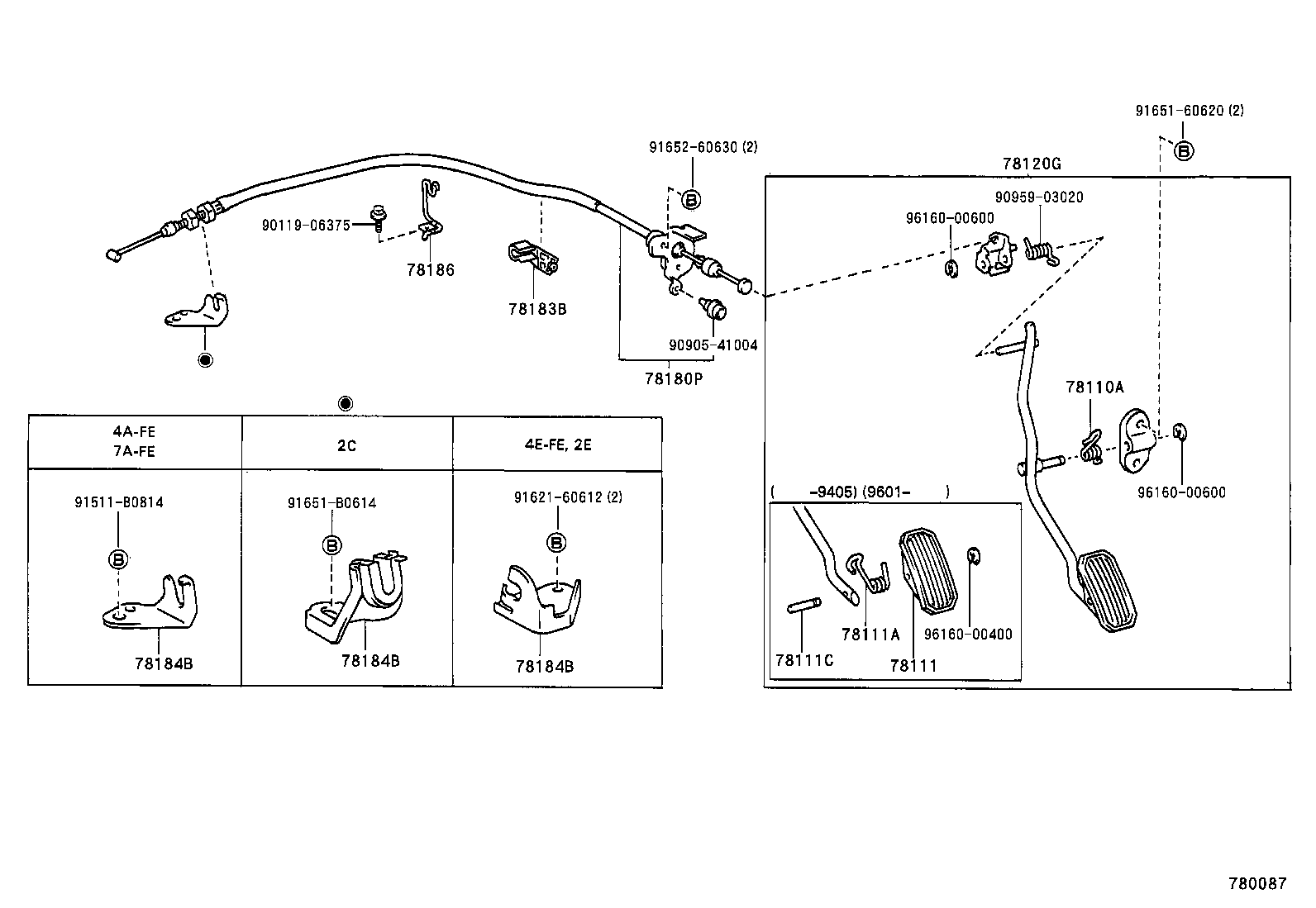

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-26036 |
CE100,EE101..5F |
1 | ||
| 90508-26036 |
CE100,EE101..5F |
1 | ||
| 90508-26036 |
CE100,EE101..RHD..5F |
1 | ||
| 90508-26036 |
EE101..5F |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-32010 |
AE10#,CE100,EE10# |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-18050 |
AE10#,CE100,EE10# |
1 | ||
| 90508-18050 |
AE10#,CE100,EE101..RHD |
1 | ||
| 90508-18050 |
AE101,CE100,EE101..RHD |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
AE10#,CE100,EE10# |
1 | ||
| 90249-05001 |
AE101,CE100,EE101..RHD |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-12150 |
CE100,EE101..RHD..5F |
1 | ||
| 78120-12150 |
CE100,EE101..RHD..5F |
1 | ||
| 78120-12151 |
CE100,EE101..RHD..5F |
1 | ||
| 78120-12150 |
EE101..RHD..5F |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-1A440 |
EE101..RHD |
1 | ||
| 78180-1A660 |
EE101..RHD |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-12160 |
AE10#,CE100,EE101..RHD |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-16070 |
EE101 |
1 | ||
| 78184-10080 |
EE101 |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-16070 |
EE101 |
1 | ||
| 78184-10080 |
EE101 |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-16070 |
EE101 |
1 | ||
| 78184-10080 |
EE101 |
1 | ||
| Common parts | ||||
| 90119-06375 | ||||
| 90905-41004 | ||||
| 90959-03020 | ||||
| 91511-B0814 | ||||
| 91621-60612 | ||||
| 91651-60620 | ||||
| 91651-B0614 | ||||
| 91652-60630 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
