EE101R-AGMDKW (1992)

Toyota Corolla Hb/Lb

Production May 1992 - Apr 1997
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9205- )HB

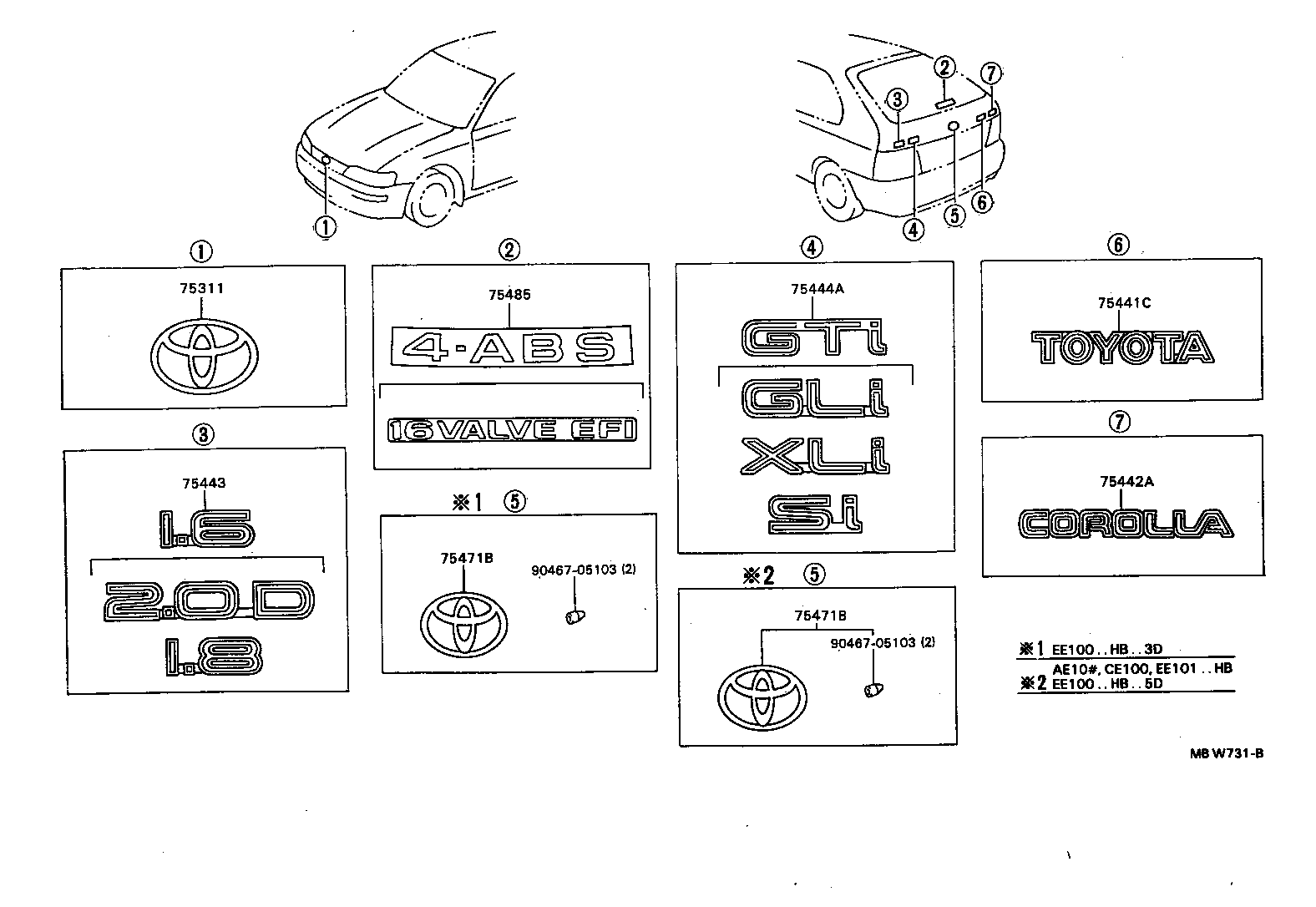

Click highlighted areas on diagram

diagram 75311 75441C 75442A 75443 75444A 75471B 75471B 75485 9046705103 9046705103
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-1A740

AE10#,CE100,EE10#..HB

 1
75441C - PLATE, BACK DOOR NAME
75441-12720

AE10#,CE100,EE10#..HB

TOYOTA

 1
75442A - PLATE, BACK DOOR NAME, NO.2
75442-1A270

AE10#,CE100,EE10#..HB

COROLLA

 1
75444A - PLATE, BACK DOOR NAME, NO.4
75444-1A050

AE101,EE101..HB..XLI

XLI

 1
75471B - PLATE, REAR BODY NAME, NO.1
75471-12030

EE100..HB..5D;AE10#,CE100,EE101..HB

 1
75471B - PLATE, REAR BODY NAME, NO.1
75471-12030

EE100..HB..5D;AE10#,CE100,EE101..HB

 1
75485 - PLATE, BACK WINDOW NAME
75485-12260

AE10#,EE101

16 VALVE EF1

 1
75485-12210

AE10#,EE101

4-ABS,W(*66)

 1
75485-12310

AE101,EE101

16 VALVE EFI

 1
Common parts
90467-05103
