EE101R-AGMDKW (1992)

Toyota Corolla Hb/Lb

Production May 1992 - Apr 1997
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9205- )

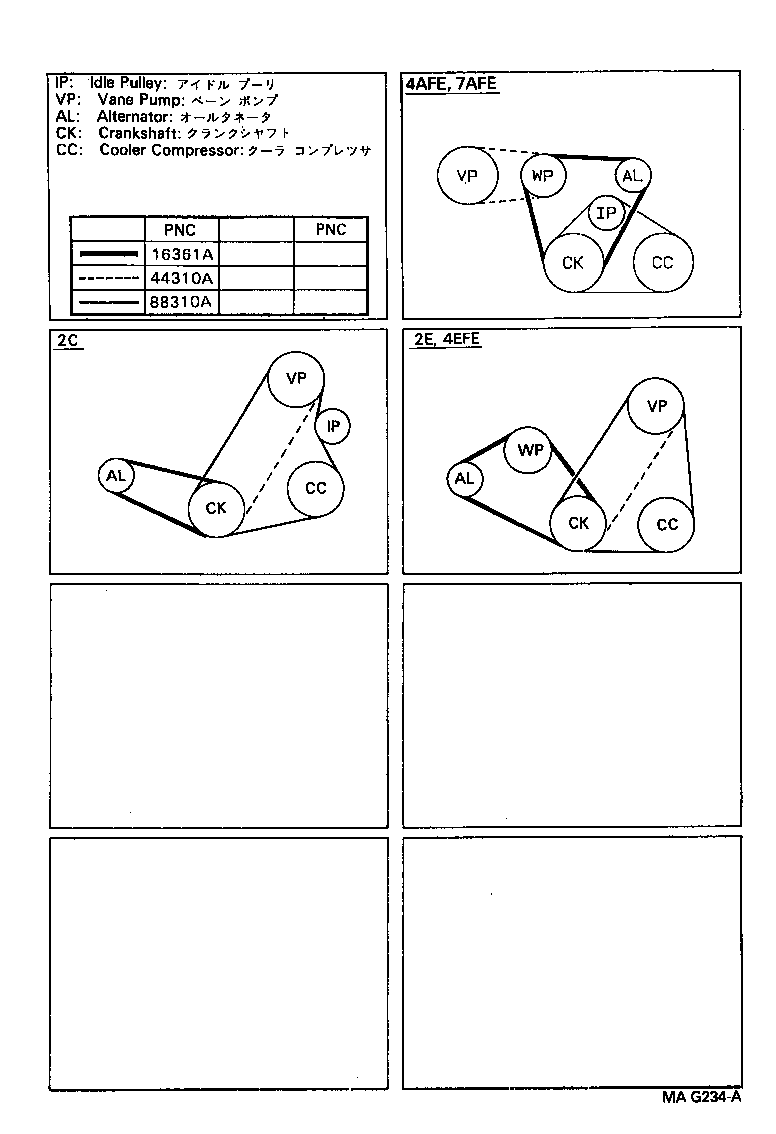

Click highlighted areas on diagram

diagram 16361A 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99364-20820

2E,4EFE..EE10#

 1
44310A - BELT, V(FOR VANE PUMP)
99365-50920

EE10#

 1
99365-90910

EE101..RHD

 1
99365-80920

EE10#

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99365-21070

EE100;EE101..RHD

W(POEWR STEERING)

 1
99365-21070

EE101..RHD

W(POEWR STEERING)

 1
99365-20880

EE10#

 1
99365-21070

EE101..RHD

 1
99365-80890

EE10#

 1
