EE101L-ALMNKW (1992)

Toyota Corolla Hb/Lb

Production May 1992 - May 1995
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9205- )LB

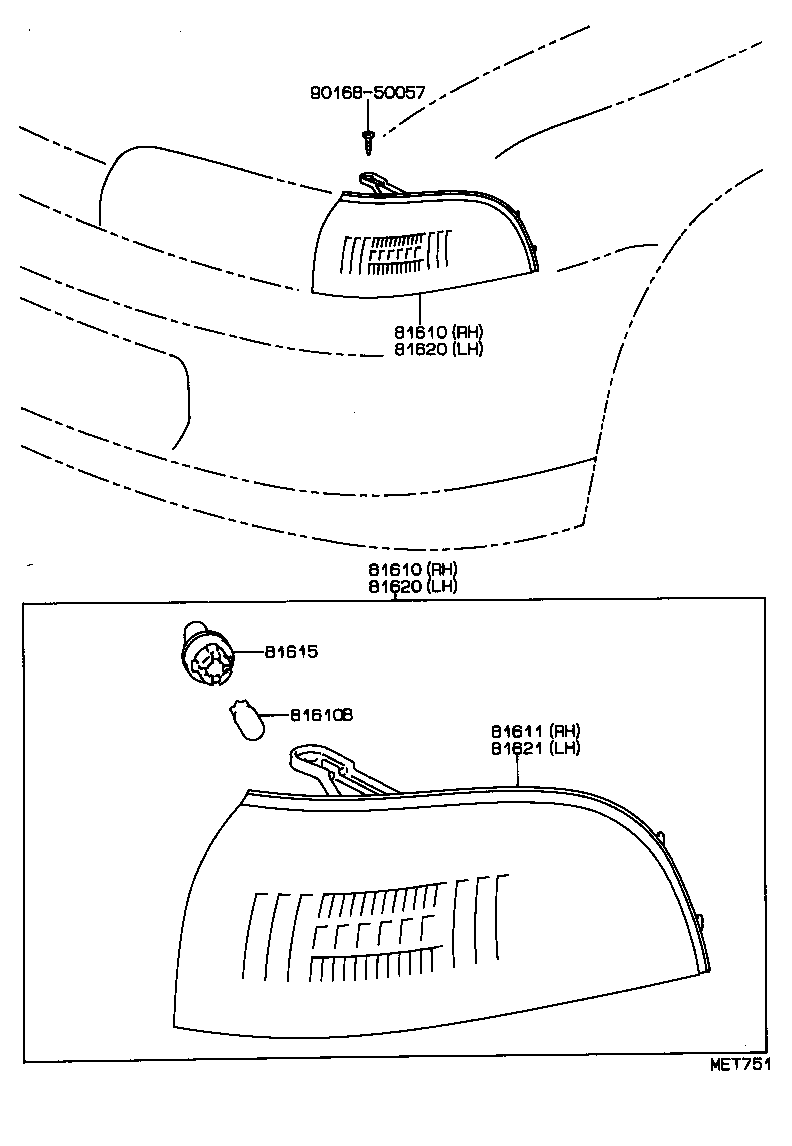

Click highlighted areas on diagram

diagram 81610 81610 81610B 81611 81615 81620 81620 81621 9016850057
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-12570

AE10#,CE100,EE10#..LB

 1
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-12570

AE10#,CE100,EE10#..LB

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

AE10#,CE100,EE10#

12V 5W

 2
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-12570

AE10#,CE100,EE10#..LB

 1
81615 - SOCKET AND WIRE, CLEARANCE LAMP
90075-99079

EE100;AE10#,CE100,EE101..LB;AE10#,CE100,EE101..HB..LHD

 2
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-12560

AE10#,CE100,EE10#..LB

 1
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-12560

AE10#,CE100,EE10#..LB

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-12560

AE10#,CE100,EE10#..LB

 1
Common parts
90168-50057
