EE101L-ALMNKW (1992)

Toyota Corolla Hb/Lb

Production May 1992 - May 1995
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

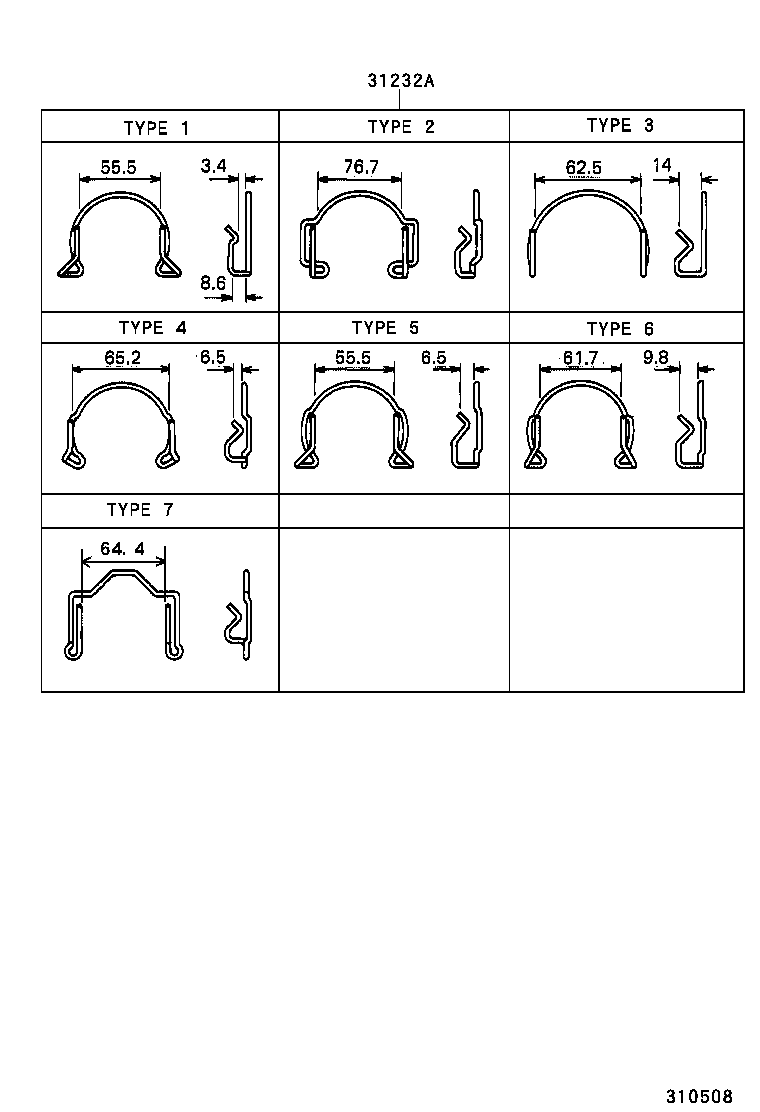

ILLUST NO. 2 OF 2(9205- )5F

Click highlighted areas on diagram

diagram 31232A
Part # Description Qty Price
31232A - CLIP, RELEASE BEARING HUB
31232-12040

EE10#..5F

TYPE 1

 1
31232-16031

EE10#..5F

TYPE 5

 1

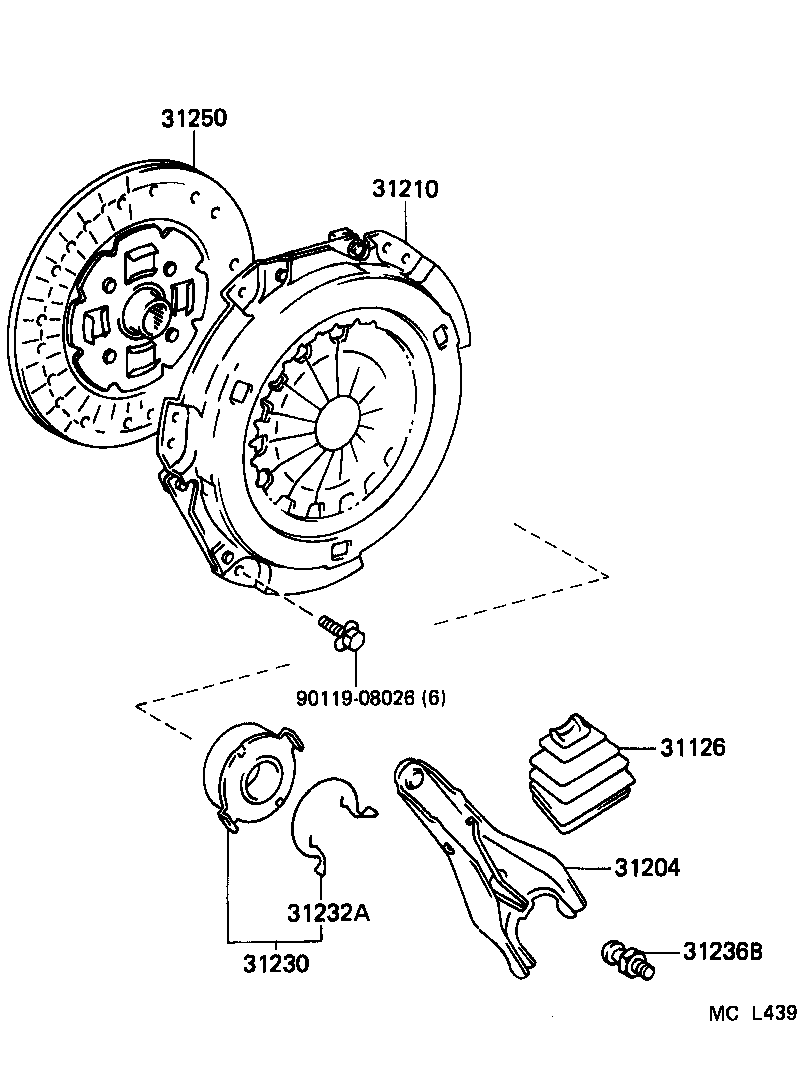

ILLUST NO. 1 OF 2(9205- )5F

Click highlighted areas on diagram

diagram 31126 31204 31210 31230 31232A 31236B 31250 9011908026
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-12051

AE10#,EE10#..5F

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-12050

EE10#..5F

 1
31210 - COVER ASSY, CLUTCH
31210-12180

EE10#..5F

 1
31210-0W010

EE101..5F

F & S

 1
31210-12180

EE101..5F

AISIN

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-12140

EE10#..5F

 1
31232A - CLIP, RELEASE BEARING HUB
31232-12040

EE10#..5F

TYPE 1

 1
31232-16031

EE10#..5F

TYPE 5

 1
31236B - SUPPORT, RELEASE FORK
31236-12011

EE10#..5F

 1
31250 - DISC ASSY, CLUTCH
31250-10120

EE10#..5F

 1
Common parts
90119-08026
