EE101L-ALMDKW (1992)

Toyota Corolla Hb/Lb

Production May 1992 - May 1995
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9205-9505)LB

Click highlighted areas on diagram

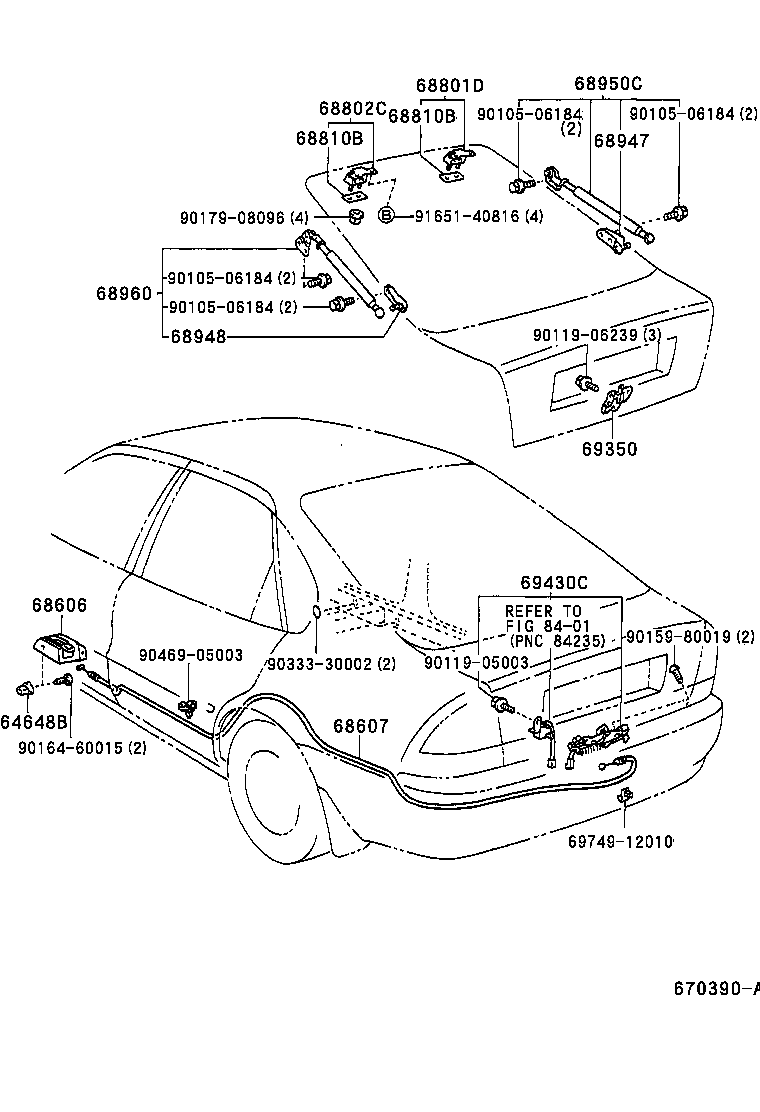

diagram 64648B 68606 68607 68801D 68802C 68810B 68810B 68947 68948 68950C 68960 69350 69430C 6974912010 8401 9010506184 9010506184 9010506184 9010506184 9011905003 9011906239 9015980019 9016460015 9017908096 9033330002 9046905003 9165140816
Part # Description Qty Price
64648B - GROMMET, BACK DOOR LOCK OPENER
64648-12010

AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI

 2
68606 - LEVER SUB-ASSY, BACK DOOR LOCK OPEN
64640-12100J0

AE101,CE100,EE10#..LHD..(GLI,XL,XLI)

DARK BLUE,TRIM8#

 1
64640-12100B0

AE10#,CE100,EE10#..LHD..(GLI,GTI,SI,XL,XLI)

SHADOW GRAY,TRIM1#

 1
64640-12101J0

AE101,CE100,EE10#..LHD..(GLI,XL,XLI)

DARK BLUE,TRIM8#

 1
68607 - CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
64607-12710

AE10#,CE100,EE10#..LB..LHD

 1
68801D - HINGE SUB-ASSY, BACK DOOR, RH
68801-12080

AE10#,CE100,EE10#..LB

 1
68802C - HINGE SUB-ASSY, BACK DOOR, LH
68801-12080

AE10#,CE100,EE10#..LB

 1
68810B - PAD, BACK DOOR HINGE
68838-12020

AE10#,CE100,EE10#..LB

 2
68810B - PAD, BACK DOOR HINGE
68838-12020

AE10#,CE100,EE10#..LB

 2
68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68947-12040

AE10#,CE100,EE10#..LB

 1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68948-12040

AE10#,CE100,EE10#..LB

 1
68950C - STAY ASSY, BACK DOOR, RH
68950-80046

AE10#,CE100,EE10#..LB

W(*RS)

 1
68950-80045

AE10#,CE100,EE10#..LB

 1
68950-80047

AE10#,CE100,EE10#..LB

 1
68950-80048

AE10#,CE100,EE10#..LB

W(*RS)

 1
68960 - STAY ASSY, BACK DOOR, LH
68960-19615

AE10#,CE100,EE10#..LB

 1
68960-19626

AE10#,CE100,EE10#..LB

W(*RS)

 1
68960-19616

AE10#,CE100,EE10#..LB

 1
68960-19625

AE10#,CE100,EE10#..LB

W(*RS)

 1
69350 - LOCK ASSY, BACK DOOR
69350-12190

AE10#,CE100,EE10#..LB

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-12301

AE10#,CE100,EE10#..LB

 1
69430-12300

AE10#,CE100,EE10#..LB

 1
Common parts
69749-12010
90105-06184
90119-05003
90119-06239
90159-80019
90164-60015
90179-08096
90333-30002
90469-05003
91651-40816
Linked diagrams
8401
