EE101L-ALMDKW (1992)

Toyota Corolla Hb/Lb

Production May 1992 - May 1995
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9205- )4EFE..5F

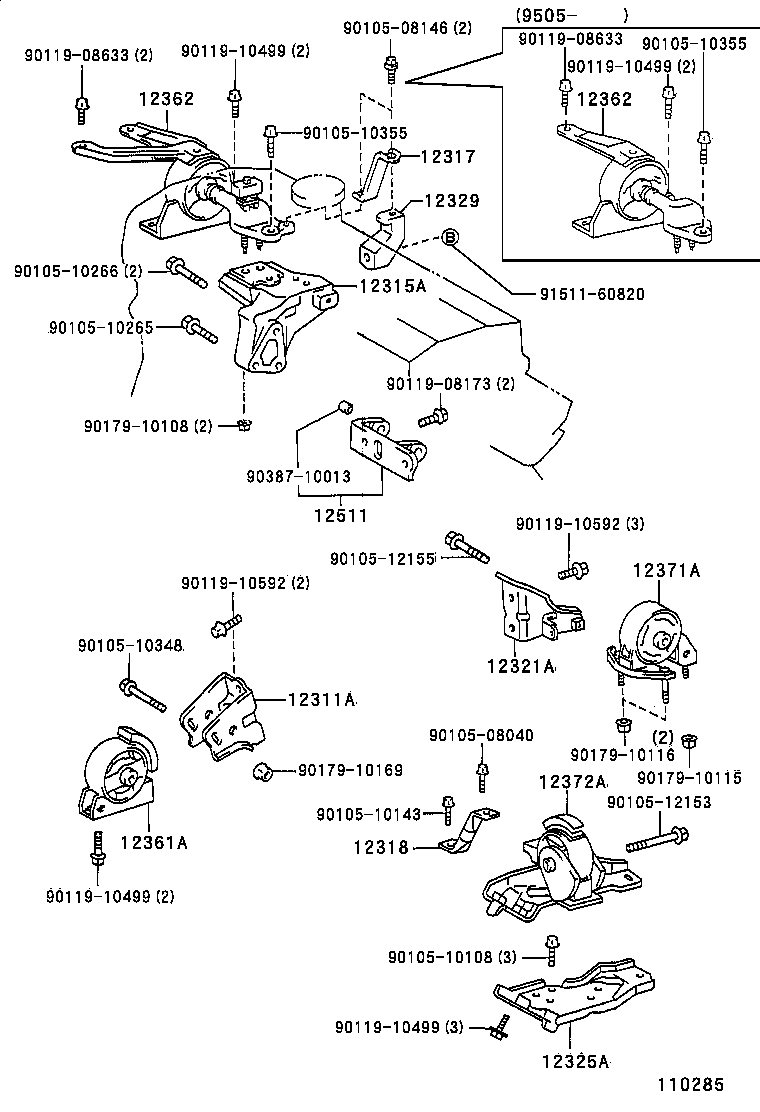

Click highlighted areas on diagram

diagram 12311A 12315A 12317 12318 12321A 12325A 12329 12361A 12362 12362 12371A 12372A 12511 9010508040 9010508146 9010510108 9010510143 9010510265 9010510266 9010510348 9010510355 9010510355 9010512153 9010512155 9011908173 9011908633 9011908633 9011910499 9011910499 9011910499 9011910499 9011910592 9011910592 9017910108 9017910115 9017910116 9017910169 9038710013 9151160820
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-11090

2E,4EFE..EE10#

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-11050

2E,4EFE..EE10#

 1
12317 - STAY, ENGINE MOUNTING, RH
12317-11040

4EFE..EE101

 1
12318 - STAY, ENGINE MOUNTING, LH
12318-11010

2E,4EFE..EE10#..5F

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-11190

2E..EE100;4EFE..EE101..3D..5F;4EFE..EE101..LB..5F

 1
12321-11191

2E,4EFE..EE10#..5F

 1
12321-11190

2E,4EFE..EE10#..5F

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-11120

2E,4EFE..EE10#..5F

 1
12329 - SUPPORT, ENGINE MOUNTING STAY
12329-11030

4EFE..EE101

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-11160

2E,4EFE..EE10#..5F

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12305-11030

4EFE..EE101

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12305-11030

4EFE..EE101

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-11430

4EFE..EE101..3D..5F;4EFE..EE101..LB..5F

 1
12371-11461

2E,4EFE..EE10#..5F

 1
12371-11462

2E,4EFE..EE10#..5F

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-11230

2E,4EFE..EE10#..5F

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-11020

2E,4EFE..EE10#

 1
Common parts
90105-08040
90105-08146
90105-10108
90105-10143
90105-10265
90105-10266
90105-10348
90105-10355
90105-12153
90105-12155
90119-08173
90119-08633
90119-10499
90119-10592
90179-10108
90179-10115
90179-10116
90179-10169
90387-10013
91511-60820
