EE101L-AHHDKW (1992)
Toyota Corolla Hb/Lb

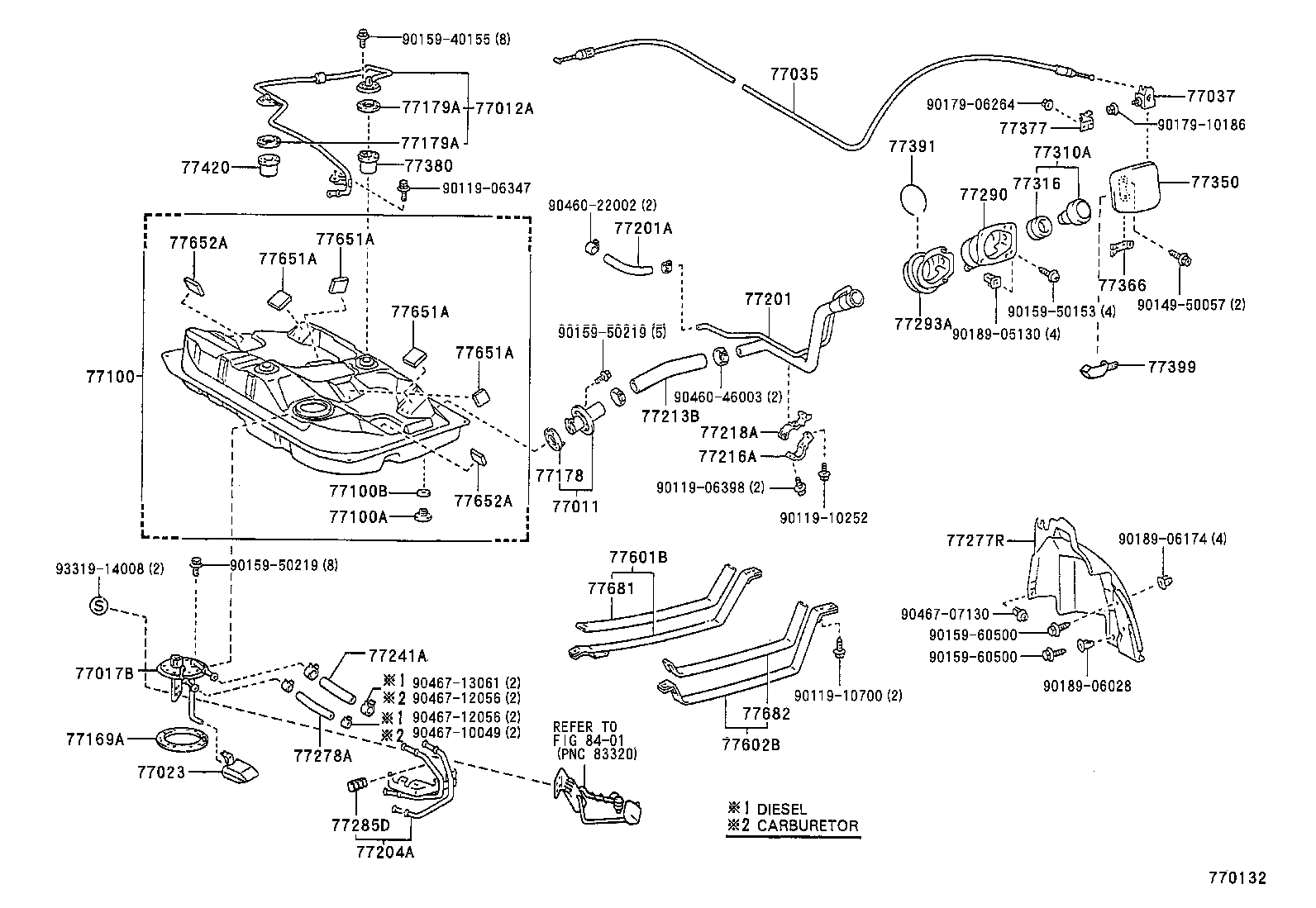

ILLUST NO. 1 OF 2(9205-9505)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-12090 |
AE10#,CE100,EE10# |
1 | ||
| 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 | ||||
| 77012-12080 |
AE10#,CE100,EE10# |
1 | ||
| 77012-12140 |
AE101,CE100,EE101 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-12211 |
AE101,CE100,EE101..LHD..(GLI,SI,XL,XLI) |
1 | ||
| 77035-12210 |
AE10#,CE100,EE10#..LHD..(GLI,GTI,SI,XL,XLI) |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-12050 |
AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-12931 |
AE10#,CE100,EE10# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
AE101,EE101..LHD |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
AE101,EE101..LHD |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
AE10#,CE100,EE10# |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
AE10#,CE100,EE10# |
2 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
AE10#,CE100,EE10# |
2 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-12500 |
AE10#,EE101 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 95311-13022 |
AE10#,CE100,EE10# L=220 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-12160 |
AE10#,CE100,EE10# |
1 | ||
| 77213-12160 |
AE101,EE101 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-12070 |
AE10#,CE100,EE10# |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-12030 |
AE10#,CE100,EE10# |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-12130 |
AE10#,CE100,EE10# |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-12090 |
AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-12060 |
AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-16011 |
AE10#,EE10# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
AE10#,CE100,EE10# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-12330 |
AE10#,CE100,EE10#..HB..(GLI,GTI,SI,XL,XLI) |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-12040 |
AE10#,CE100,EE10#..HB |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20050 |
AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
AE10#,CE100,EE10# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
AE10#,CE100,EE10# |
1 | ||
| 77399 - HANGER, FUEL TANK CAP | ||||
| 77399-12010 |
AE10#,CE100,EE10# |
1 | ||
| 77420 - VALVE ASSY, FUEL CUT OFF, NO.2 | ||||
| 77420-26010 |
AE10#,CE100,EE10# |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-12180 |
AE10#,CE100,EE10# |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-12130 |
AE10#,CE100,EE10# |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-12100 |
AE10#,CE100,EE10# 100X60 |
1 | ||
| 77651-20090 |
AE101,CE100,EE101 60 X 60 |
3 | ||
| 77652-12100 |
AE101,CE100,EE101 60 X 100 |
1 | ||
| 77651-20090 |
AE10#,CE100,EE10# 60X60 |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-12100 |
AE10#,CE100,EE10# 100X60 |
1 | ||
| 77651-20090 |
AE101,CE100,EE101 60 X 60 |
3 | ||
| 77652-12100 |
AE101,CE100,EE101 60 X 100 |
1 | ||
| 77651-20090 |
AE10#,CE100,EE10# 60X60 |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-12100 |
AE10#,CE100,EE10# 100X60 |
1 | ||
| 77651-20090 |
AE101,CE100,EE101 60 X 60 |
3 | ||
| 77652-12100 |
AE101,CE100,EE101 60 X 100 |
1 | ||
| 77651-20090 |
AE10#,CE100,EE10# 60X60 |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-12100 |
AE10#,CE100,EE10# 100X60 |
1 | ||
| 77651-20090 |
AE101,CE100,EE101 60 X 60 |
3 | ||
| 77652-12100 |
AE101,CE100,EE101 60 X 100 |
1 | ||
| 77651-20090 |
AE10#,CE100,EE10# 60X60 |
3 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-12100 |
AE10#,CE100,EE10# |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-12100 |
AE10#,CE100,EE10# |
2 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-12030 |
AE10#,CE100,EE10# |
1 | ||
| 77682-12030 |
AE10#,CE100,EE10# |
1 | ||
| 77681-32060 |
AE10#,CE100,EE10# |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-12030 |
AE10#,CE100,EE10# |
1 | ||
| 77681-32070 |
AE10#,CE100,EE10# |
1 | ||
| 77681-32060 |
AE10#,CE100,EE10# |
1 | ||
| Common parts | ||||
| 90119-06347 | ||||
| 90119-06398 | ||||
| 90119-10252 | ||||
| 90119-10700 | ||||
| 90149-50057 | ||||
| 90159-40155 | ||||
| 90159-50153 | ||||
| 90159-50219 | ||||
| 90159-60500 | ||||
| 90179-06264 | ||||
| 90179-10186 | ||||
| 90189-05130 | ||||
| 90189-06028 | ||||
| 90189-06174 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90467-07130 | ||||
| 90467-10049 | ||||
| 90467-12056 | ||||
| 90467-13061 | ||||
| 93319-14008 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-12090 |
AE10#,CE100,EE10# |
1 | ||
| 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 | ||||
| 77012-12080 |
AE10#,CE100,EE10# |
1 | ||
| 77012-12140 |
AE101,CE100,EE101 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-12211 |
AE101,CE100,EE101..LHD..(GLI,SI,XL,XLI) |
1 | ||
| 77035-12210 |
AE10#,CE100,EE10#..LHD..(GLI,GTI,SI,XL,XLI) |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-12050 |
AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-12931 |
AE10#,CE100,EE10# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
AE101,EE101..LHD |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
AE101,EE101..LHD |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
AE10#,CE100,EE10# |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
AE10#,CE100,EE10# |
2 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
AE10#,CE100,EE10# |
2 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-12500 |
AE10#,EE101 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 95311-13022 |
AE10#,CE100,EE10# L=220 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-12160 |
AE10#,CE100,EE10# |
1 | ||
| 77213-12160 |
AE101,EE101 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-12070 |
AE10#,CE100,EE10# |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-12030 |
AE10#,CE100,EE10# |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-12130 |
AE10#,CE100,EE10# |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-12090 |
AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-12060 |
AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-16011 |
AE10#,EE10# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
AE10#,CE100,EE10# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-12330 |
AE10#,CE100,EE10#..HB..(GLI,GTI,SI,XL,XLI) |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-12040 |
AE10#,CE100,EE10#..HB |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20050 |
AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
AE10#,CE100,EE10# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
AE10#,CE100,EE10# |
1 | ||
| 77399 - HANGER, FUEL TANK CAP | ||||
| 77399-12010 |
AE10#,CE100,EE10# |
1 | ||
| 77420 - VALVE ASSY, FUEL CUT OFF, NO.2 | ||||
| 77420-26010 |
AE10#,CE100,EE10# |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-12180 |
AE10#,CE100,EE10# |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-12130 |
AE10#,CE100,EE10# |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-12100 |
AE10#,CE100,EE10# 100X60 |
1 | ||
| 77651-20090 |
AE101,CE100,EE101 60 X 60 |
3 | ||
| 77652-12100 |
AE101,CE100,EE101 60 X 100 |
1 | ||
| 77651-20090 |
AE10#,CE100,EE10# 60X60 |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-12100 |
AE10#,CE100,EE10# 100X60 |
1 | ||
| 77651-20090 |
AE101,CE100,EE101 60 X 60 |
3 | ||
| 77652-12100 |
AE101,CE100,EE101 60 X 100 |
1 | ||
| 77651-20090 |
AE10#,CE100,EE10# 60X60 |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-12100 |
AE10#,CE100,EE10# 100X60 |
1 | ||
| 77651-20090 |
AE101,CE100,EE101 60 X 60 |
3 | ||
| 77652-12100 |
AE101,CE100,EE101 60 X 100 |
1 | ||
| 77651-20090 |
AE10#,CE100,EE10# 60X60 |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-12100 |
AE10#,CE100,EE10# 100X60 |
1 | ||
| 77651-20090 |
AE101,CE100,EE101 60 X 60 |
3 | ||
| 77652-12100 |
AE101,CE100,EE101 60 X 100 |
1 | ||
| 77651-20090 |
AE10#,CE100,EE10# 60X60 |
3 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-12100 |
AE10#,CE100,EE10# |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-12100 |
AE10#,CE100,EE10# |
2 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-12030 |
AE10#,CE100,EE10# |
1 | ||
| 77682-12030 |
AE10#,CE100,EE10# |
1 | ||
| 77681-32060 |
AE10#,CE100,EE10# |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-12030 |
AE10#,CE100,EE10# |
1 | ||
| 77681-32070 |
AE10#,CE100,EE10# |
1 | ||
| 77681-32060 |
AE10#,CE100,EE10# |
1 | ||
| Common parts | ||||
| 90119-06347 | ||||
| 90119-06398 | ||||
| 90119-10252 | ||||
| 90119-10700 | ||||
| 90149-50057 | ||||
| 90159-40155 | ||||
| 90159-50153 | ||||
| 90159-50219 | ||||
| 90159-60500 | ||||
| 90179-06264 | ||||
| 90179-10186 | ||||
| 90189-05130 | ||||
| 90189-06028 | ||||
| 90189-06174 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90467-07130 | ||||
| 90467-10049 | ||||
| 90467-12056 | ||||
| 90467-13061 | ||||
| 93319-14008 | ||||
| Linked diagrams | ||||
| 8401 | ||||
