Toyota Corolla hb/lb EE101 RADIATOR GRILLE

EE101L-AHHDKW (1992)

Toyota Corolla Hb/Lb

Production Jun 1992 - Apr 1997

Engine 4EFE

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

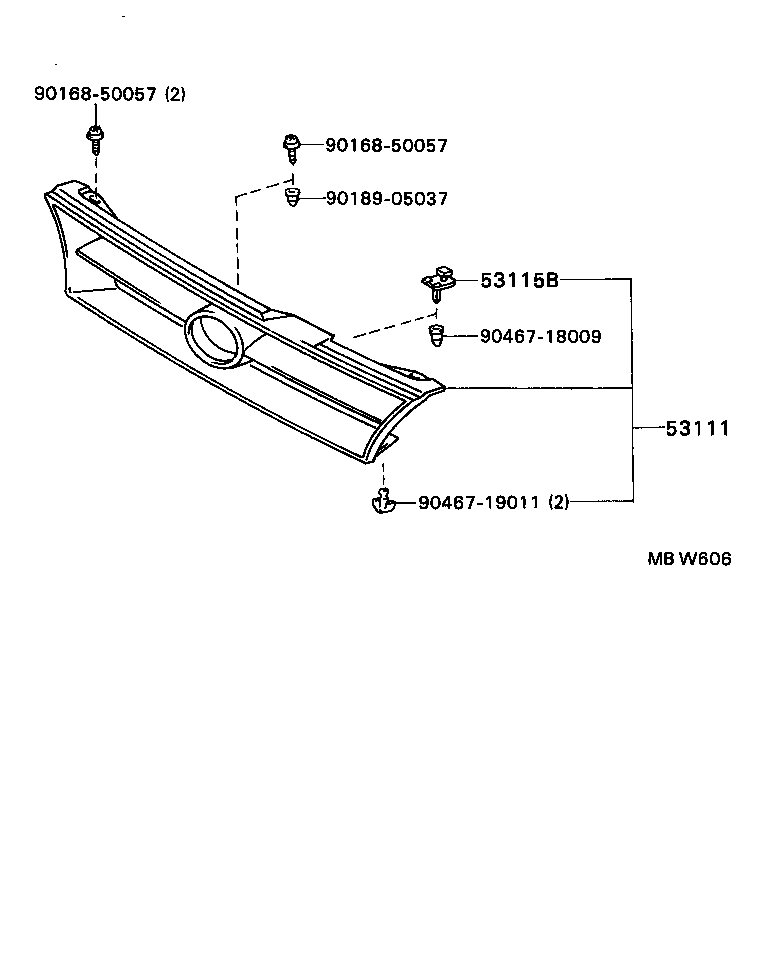

(9205-9505)HB

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53101-1A030K0	AE10#,CE100,EE10#..HB LAVENDER MICA ME,925	05/1992 - 05/1993	1
53101-1A030K0	AE10#,CE100,EE10#..HB LAVENDER MICA ME,925	11/1993 - 05/1994	1
53101-1A030G1	AE101,CE100,EE101..HB..(XL,XLI) 95 SPRING CAMPAIGN,DK. GREEN MICA,6M1	12/1994 - 04/1995	1
53101-1A030B0	AE10#,CE100,EE10#..HB SILVER MICA ME,192	05/1992 - 05/1995	1
53101-1A030D2	AE101,CE100,EE101..HB..(XL,XLI) 95 SPRING CAMPAIGN,RED M.M.,3K4	12/1994 - 04/1995	1
53101-1A030A0	AE10#,CE100,EE10#..HB SUPER WHITE 2,040	05/1992 - 05/1995	1
53101-1A030H1	AE101,CE100,EE101..HB..(XL,XLI) 95 SPRING CAMPAIGN,TURQUOISE M.M.,746	12/1994 - 04/1995	1
53101-1A030C0	AE10#,CE100,EE10#..HB BLACK ME,205	05/1992 - 05/1995	1
53101-1A030D0	AE10#,CE100,EE10#..HB SUPER RED 2,3E5	05/1992 - 05/1995	1
53101-1A030G0	AE10#,CE100,EE10#..HB GRAYISH GREEN ME,6M3	05/1992 - 05/1995	1
53101-1A030J0	AE10#,CE100,EE10#..HB DARK BLUE MICA M,8G5	05/1993 - 05/1995	1
53101-1A030D1	AE10#,CE100,EE10#..HB ORANGE MICA ME,3L1	05/1992 - 01/1994	1
53101-1A120B0	EE101..LHD..XLI;AE101,CE100..LHD..(SI,XL) '96 SPRING CAMPAIGN(AUSTRIA,GREECE),BLUISH GRAY,182	11/1995 - 04/1996	1
53101-1A120C0	EE101..LHD..XLI;AE101,CE100..LHD..(SI,XL) '96 SPRING CAMPAIGN(AUSTRIA,GREECE),BLACK,205	11/1995 - 04/1996	1
53101-1A120B2	EE101..5D..LHD '96 SPRING CAMPAIGN(ICELAND),SILVER PEARL M,1A7	11/1995 - 04/1996	1
53101-1A120A0	EE101..LHD..XLI;AE101,CE100..LHD..(SI,XL) '96 SPRING CAMPAIGN(AUSTRIA,GREECE),SUPER WHITE,040	11/1995 - 04/1996	1
53101-1A120B2	EE101..LHD..XLI;AE101,CE100..LHD..(SI,XL) '96 SPRING CAMPAIGN(AUSTRIA,GREECE),SILVER PEARL M,1A7	11/1995 - 04/1996	1
53101-1A120G0	EE101..LHD..XLI;AE101,CE100..LHD..(SI,XL) '96 SPRING CAMPAIGN(AUSTRIA,GREECE),MD.GREEN M.M.,6P0	11/1995 - 04/1996	1
53101-1A030J1	AE10#,CE100,EE10#..HB LT PURPLISH BLUE M.M,8K1	05/1994 - 05/1995	1
53101-1A120B2	CE100,EE101..LHD..(XL,XLI) '96 SPRING CAMPAIGN(GERMANY,BELGUIM),SILVER PEARL M,1A7	11/1995 - 04/1996	1
53101-1A120D0	EE101..LHD..XLI;AE101,CE100..LHD..(SI,XL) '96 SPRING CAMPAIGN(AUSTRIA,GREECE),SUPER RED 2,3E5	11/1995 - 04/1996	1
53101-1A120D0	EE101..5D..LHD '96 SPRING CAMPAIGN(ICELAND),SUPER RED 2,3E5	11/1995 - 04/1996	1
53101-1A120H0	EE101..LHD..XLI;AE101,CE100..LHD..(SI,XL) '96 SPRING CAMPAIGN(AUSTRIA,GREECE),TURQUOISE M.M.,746	11/1995 - 04/1996	1
53101-1A120J1	EE101..5D..LHD '96 SPRING CAMPAIGN(ICELAND),DK.BLUE MC.,8K8	11/1995 - 04/1996	1
53101-1A120H0	EE101..5D..LHD '96 SPRING CAMPAIGN(ICELAND),TURQUOISE M.M.,746	11/1995 - 04/1996	1
53101-1A120G0	EE101..5D..LHD '96 SPRING CAMPAIGN(ICELAND),MD.GREEN M.M,6P0	11/1995 - 04/1996	1
53101-1A120J0	AE101,CE100,EE101 LT. PURPLISH BLUE M.,8K1	05/1995 - 05/1996	1
53101-1A120J1	EE101..LHD..XLI;AE101,CE100..LHD..(SI,XL) '96 SPRING CAMPAIGN(AUSTRIA,GREECE),DK.BLUE MC.,8K8	11/1995 - 04/1996	1
53101-1A120G0	AE101,CE100,EE101 MD. GREEN M.M.,6P0	05/1995 - 11/1996	1
53101-1A120A0	AE101,CE100,EE101 SUPER WHITE 2,040	05/1995 - 04/1997	1
53101-1A120J0	EE101..LHD..XLI;AE101,CE100..LHD..(SI,XL) '96 SPRING CAMPAIGN(AUSTRIA,GREECE),LT PURPLISH BLUE M.M,8K1	11/1995 - 04/1996	1
53101-1A120D0	AE101,CE100,EE101 SUPER RED 2,3E5	05/1995 - 04/1997	1
53101-1A120G3	AE101,CE100,EE101 GREEN MC.,6P6	11/1996 - 04/1997	1
53101-1A120J3	AE101,CE100,EE101 STRONG BLUE M,8B6	05/1996 - 04/1997	1
53101-1A120B0	AE101,CE100,EE101 BLUEISH GRAY M.,182	05/1995 - 04/1997	1
53101-1A120B3	AE101,CE100,EE101 SILVER ME,199	05/1996 - 04/1997	1
53101-1A120H0	AE101,CE100,EE101 TURQUOISE M.M.,746	05/1995 - 04/1997	1
53101-1A120J1	AE101,CE100,EE101 DK BLUE MICA,8K8	05/1995 - 04/1997	1
53101-1A120C0	AE101,CE100,EE101 BLACK ME,205	05/1995 - 04/1997	1
53115B - BRACKET, RADIATOR GRILLE
53115-16010	AE10#,CE100,EE10#..HB	05/1992 - 12/2999	1
Common parts
90168-50057
90189-05037
90467-18009
90467-19011

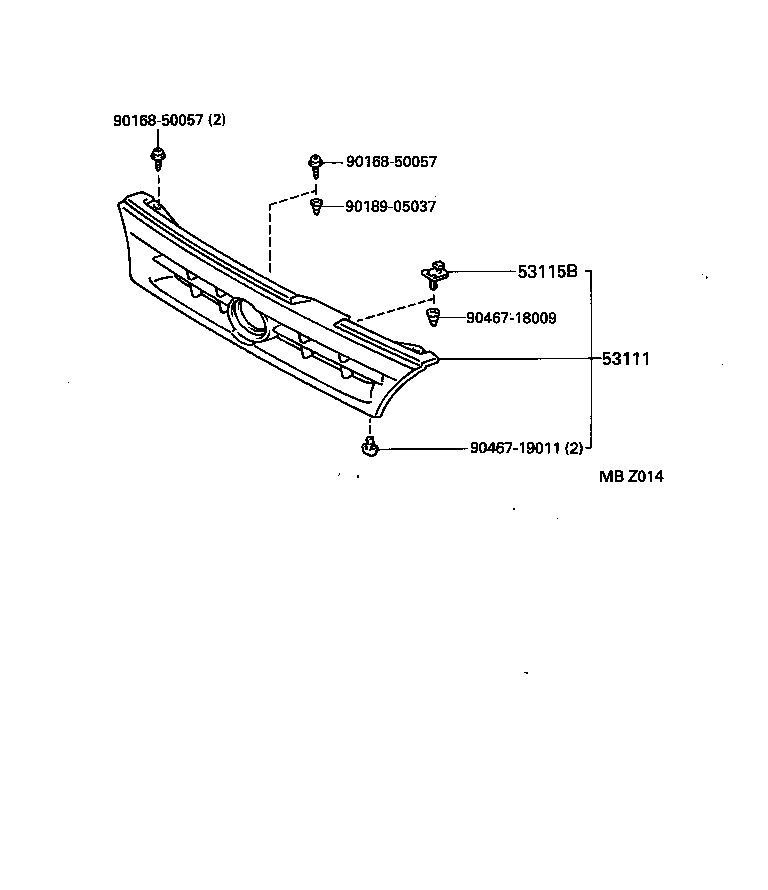

(9505- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53101-1A030K0	AE10#,CE100,EE10#..HB LAVENDER MICA ME,925	05/1992 - 05/1993	1
53101-1A030K0	AE10#,CE100,EE10#..HB LAVENDER MICA ME,925	11/1993 - 05/1994	1
53101-1A030G1	AE101,CE100,EE101..HB..(XL,XLI) 95 SPRING CAMPAIGN,DK. GREEN MICA,6M1	12/1994 - 04/1995	1
53101-1A030B0	AE10#,CE100,EE10#..HB SILVER MICA ME,192	05/1992 - 05/1995	1
53101-1A030D2	AE101,CE100,EE101..HB..(XL,XLI) 95 SPRING CAMPAIGN,RED M.M.,3K4	12/1994 - 04/1995	1
53101-1A030A0	AE10#,CE100,EE10#..HB SUPER WHITE 2,040	05/1992 - 05/1995	1
53101-1A030H1	AE101,CE100,EE101..HB..(XL,XLI) 95 SPRING CAMPAIGN,TURQUOISE M.M.,746	12/1994 - 04/1995	1
53101-1A030C0	AE10#,CE100,EE10#..HB BLACK ME,205	05/1992 - 05/1995	1
53101-1A030D0	AE10#,CE100,EE10#..HB SUPER RED 2,3E5	05/1992 - 05/1995	1
53101-1A030G0	AE10#,CE100,EE10#..HB GRAYISH GREEN ME,6M3	05/1992 - 05/1995	1
53101-1A030J0	AE10#,CE100,EE10#..HB DARK BLUE MICA M,8G5	05/1993 - 05/1995	1
53101-1A030D1	AE10#,CE100,EE10#..HB ORANGE MICA ME,3L1	05/1992 - 01/1994	1
53101-1A120B0	EE101..LHD..XLI;AE101,CE100..LHD..(SI,XL) '96 SPRING CAMPAIGN(AUSTRIA,GREECE),BLUISH GRAY,182	11/1995 - 04/1996	1
53101-1A120C0	EE101..LHD..XLI;AE101,CE100..LHD..(SI,XL) '96 SPRING CAMPAIGN(AUSTRIA,GREECE),BLACK,205	11/1995 - 04/1996	1
53101-1A120B2	EE101..5D..LHD '96 SPRING CAMPAIGN(ICELAND),SILVER PEARL M,1A7	11/1995 - 04/1996	1
53101-1A120A0	EE101..LHD..XLI;AE101,CE100..LHD..(SI,XL) '96 SPRING CAMPAIGN(AUSTRIA,GREECE),SUPER WHITE,040	11/1995 - 04/1996	1
53101-1A120B2	EE101..LHD..XLI;AE101,CE100..LHD..(SI,XL) '96 SPRING CAMPAIGN(AUSTRIA,GREECE),SILVER PEARL M,1A7	11/1995 - 04/1996	1
53101-1A120G0	EE101..LHD..XLI;AE101,CE100..LHD..(SI,XL) '96 SPRING CAMPAIGN(AUSTRIA,GREECE),MD.GREEN M.M.,6P0	11/1995 - 04/1996	1
53101-1A030J1	AE10#,CE100,EE10#..HB LT PURPLISH BLUE M.M,8K1	05/1994 - 05/1995	1
53101-1A120B2	CE100,EE101..LHD..(XL,XLI) '96 SPRING CAMPAIGN(GERMANY,BELGUIM),SILVER PEARL M,1A7	11/1995 - 04/1996	1
53101-1A120D0	EE101..LHD..XLI;AE101,CE100..LHD..(SI,XL) '96 SPRING CAMPAIGN(AUSTRIA,GREECE),SUPER RED 2,3E5	11/1995 - 04/1996	1
53101-1A120D0	EE101..5D..LHD '96 SPRING CAMPAIGN(ICELAND),SUPER RED 2,3E5	11/1995 - 04/1996	1
53101-1A120H0	EE101..LHD..XLI;AE101,CE100..LHD..(SI,XL) '96 SPRING CAMPAIGN(AUSTRIA,GREECE),TURQUOISE M.M.,746	11/1995 - 04/1996	1
53101-1A120J1	EE101..5D..LHD '96 SPRING CAMPAIGN(ICELAND),DK.BLUE MC.,8K8	11/1995 - 04/1996	1
53101-1A120H0	EE101..5D..LHD '96 SPRING CAMPAIGN(ICELAND),TURQUOISE M.M.,746	11/1995 - 04/1996	1
53101-1A120G0	EE101..5D..LHD '96 SPRING CAMPAIGN(ICELAND),MD.GREEN M.M,6P0	11/1995 - 04/1996	1
53101-1A120J0	AE101,CE100,EE101 LT. PURPLISH BLUE M.,8K1	05/1995 - 05/1996	1
53101-1A120J1	EE101..LHD..XLI;AE101,CE100..LHD..(SI,XL) '96 SPRING CAMPAIGN(AUSTRIA,GREECE),DK.BLUE MC.,8K8	11/1995 - 04/1996	1
53101-1A120G0	AE101,CE100,EE101 MD. GREEN M.M.,6P0	05/1995 - 11/1996	1
53101-1A120A0	AE101,CE100,EE101 SUPER WHITE 2,040	05/1995 - 04/1997	1
53101-1A120J0	EE101..LHD..XLI;AE101,CE100..LHD..(SI,XL) '96 SPRING CAMPAIGN(AUSTRIA,GREECE),LT PURPLISH BLUE M.M,8K1	11/1995 - 04/1996	1
53101-1A120D0	AE101,CE100,EE101 SUPER RED 2,3E5	05/1995 - 04/1997	1
53101-1A120G3	AE101,CE100,EE101 GREEN MC.,6P6	11/1996 - 04/1997	1
53101-1A120J3	AE101,CE100,EE101 STRONG BLUE M,8B6	05/1996 - 04/1997	1
53101-1A120B0	AE101,CE100,EE101 BLUEISH GRAY M.,182	05/1995 - 04/1997	1
53101-1A120B3	AE101,CE100,EE101 SILVER ME,199	05/1996 - 04/1997	1
53101-1A120H0	AE101,CE100,EE101 TURQUOISE M.M.,746	05/1995 - 04/1997	1
53101-1A120J1	AE101,CE100,EE101 DK BLUE MICA,8K8	05/1995 - 04/1997	1
53101-1A120C0	AE101,CE100,EE101 BLACK ME,205	05/1995 - 04/1997	1
53115B - BRACKET, RADIATOR GRILLE
53115-16010	AE10#,CE100,EE10#..HB	05/1992 - 12/2999	1
Common parts
90168-50057
90189-05037
90467-18009
90467-19011
