EE101L-AGHDKW (1992)

Toyota Corolla Hb/Lb

Production May 1992 - Apr 1997
Engine 4EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9205- )2E,4EFE

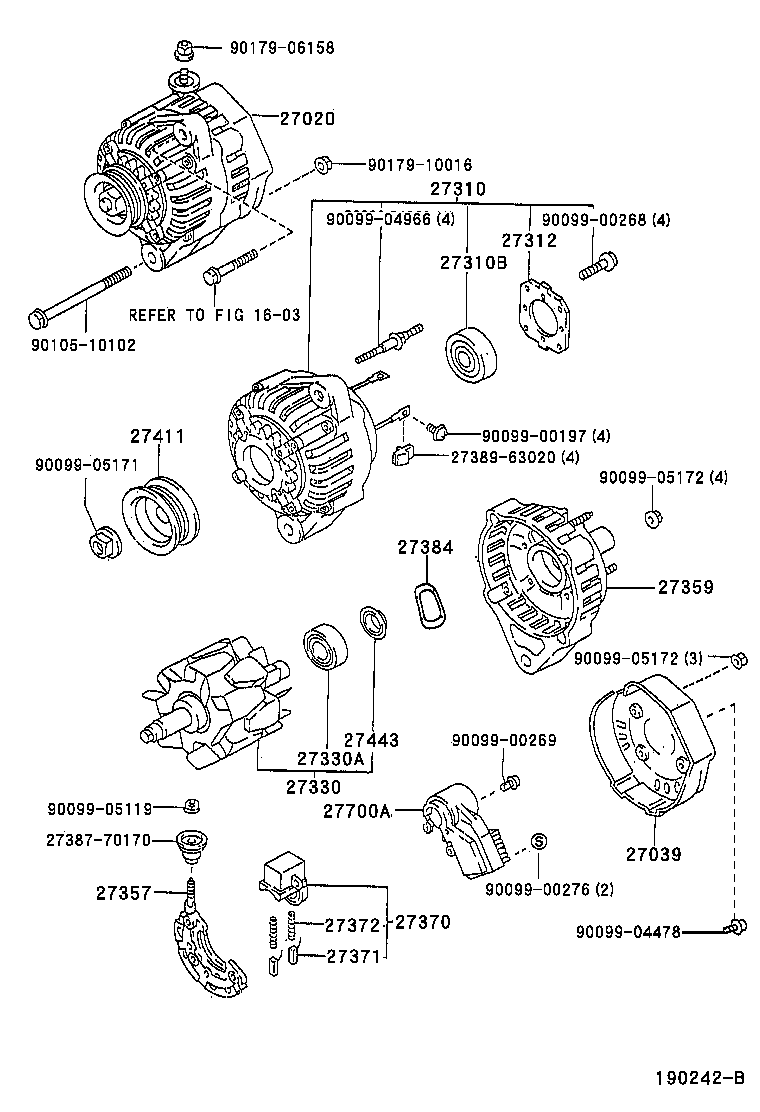

Click highlighted areas on diagram

12V 70A

diagram 1603 27020 27039 27310 27310B 27312 27330 27330A 27357 27359 27370 27371 27372 27384 2738770170 2738963020 27411 27443 27700A 9009900197 9009900268 9009900269 9009900276 9009904478 9009904966 9009905119 9009905171 9009905172 9009905172 9010510102 9017906158 9017910016
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-11270

2E,4EFE..EE10#

12V 70A

 1
27039 - COVER, ALTERNATOR REAR END
27039-73020

4AFE,7AFE,2E,4EFE..AE10#,EE10#..3FC,5F

 1
27039-16380

4AFE,4EFE..AE101,EE101..3FC,5F

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-16103

2E,4EFE..EE10#

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10178

4AFE,7AFE,2E,4EFE..AE10#,EE10#..3FC,5F

 1
27312 - PLATE, RETAINER
27312-70200

4AFE,7AFE,2E,4EFE..AE10#,EE10#..3FC,5F

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-72101

4AFE,7AFE,2E,4EFE..AE10#,EE10#..3FC,5F

 1
27330-64570

4AFE,4EFE..AE101,EE101..3FC,5F

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

4AFE,7AFE,2C,2E,4EFE..AE10#,CE100,EE10#

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63020

4AFE,7AFE,2E,4EFE..AE10#,EE10#..3FC,5F

 1
27357-16380

4AFE,4EFE..AE101,EE101..3FC,5F

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-16180

2E,4EFE..EE10#

 1
27359-16182

4EFE..EE101

 1
27359-16181

4EFE..EE101

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-54450

2E,4EFE..EE10#

 1
27370-58320

4EFE..EE101

 1
27371 - BRUSH, ALTERNATOR
27371-70300

4AFE,7AFE,2E,4EFE..AE10#,EE10#..3FC,5F

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020

4AFE,7AFE,2E,4EFE..AE10#,EE10#..3FC,5F

 2
27384 - WASHER
27384-16380

4AFE,4EFE..AE101,EE101..3FC,5F

 1
27411 - PULLEY, ALTERNATOR
27411-65010

2E,4EFE..EE10#

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

4AFE,7AFE,2C,2E,4EFE..AE10#,CE100,EE10#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-11070

2E,4EFE..EE10#

 1
Common parts
27387-70170
27389-63020
90099-00197
90099-00268
90099-00269
90099-00276
90099-04478
90099-04966
90099-05119
90099-05171
90099-05172
90105-10102
90179-06158
90179-10016
