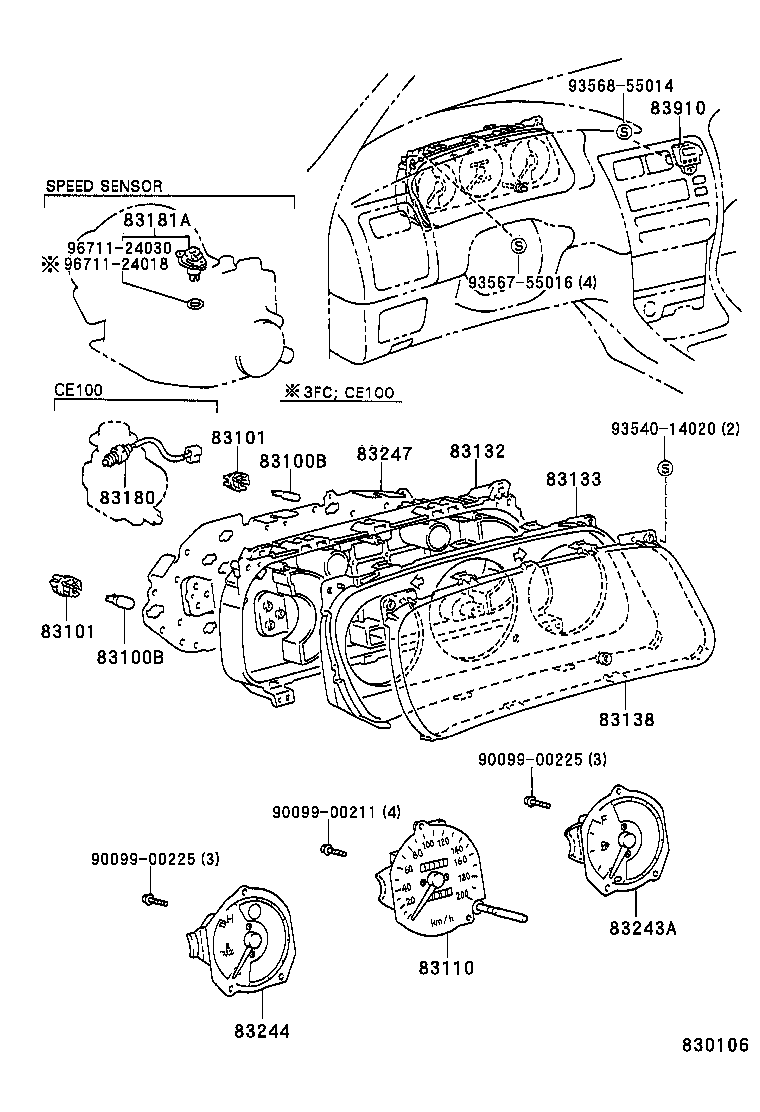

EE100L-ALMDSW (1992)
Toyota Corolla Hb/Lb
(9205- )LHD..STD,XL,XLI
W/O(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-12030 |
AE10#,CE100,EE10# 12V 3.4W,BLUE CAP |
1 | ||
| 90981-11018 |
AE10#,CE100,EE10# 12V 1.2W W/O SOCKET |
1 | ||
| 99132-12034 |
AE10#,CE100,EE10# 12V 3.4W |
1 | ||
| 83119-32010 |
AE10#,EE100..GTI,XL,XLI;CE100,EE101..LHD..(STD,XL,XLI) 14V 3.0W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-12030 |
AE10#,CE100,EE10# 12V 3.4W,BLUE CAP |
1 | ||
| 90981-11018 |
AE10#,CE100,EE10# 12V 1.2W W/O SOCKET |
1 | ||
| 99132-12034 |
AE10#,CE100,EE10# 12V 3.4W |
1 | ||
| 83119-32010 |
AE10#,EE100..GTI,XL,XLI;CE100,EE101..LHD..(STD,XL,XLI) 14V 3.0W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EE101..3D;EE101..LB;AE101..LB..GLI;EE101..HB..5D..5F;EE101..5D..LHD..3FC;AE101..HB..LHD..5F..GLI;AE10#,CE100,EE100..GTI,SI,STD,XL,XLI 12V 1.4W |
1 | ||
| 83101-32020 |
AE101,CE100,EE10#..LHD..(STD,XL,XLI) 14V 3.0W |
1 | ||
| 83101-14030 |
EE101..3D;EE101..LB;AE101..LB..GLI;EE101..HB..5D..5F;EE101..5D..LHD..3FC;AE101..HB..LHD..5F..GLI;AE10#,CE100,EE100..GTI,SI,STD,XL,XLI 12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EE101..3D;EE101..LB;AE101..LB..GLI;EE101..HB..5D..5F;EE101..5D..LHD..3FC;AE101..HB..LHD..5F..GLI;AE10#,CE100,EE100..GTI,SI,STD,XL,XLI 12V 1.4W |
1 | ||
| 83101-32020 |
AE101,CE100,EE10#..LHD..(STD,XL,XLI) 14V 3.0W |
1 | ||
| 83101-14030 |
EE101..3D;EE101..LB;AE101..LB..GLI;EE101..HB..5D..5F;EE101..5D..LHD..3FC;AE101..HB..LHD..5F..GLI;AE10#,CE100,EE100..GTI,SI,STD,XL,XLI 12V 3.4W |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1H120 |
EE100 W(TACHOMETER) |
1 | ||
| 83110-1H050 |
CE100,EE100..LHD |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1A630 |
AE101,EE10#..LHD..(STD,XL,XLI) W(TACHOMETER) |
1 | ||
| 83132-1A610 |
AE101,CE100,EE10#..LHD..(STD,XL,XLI) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1H170 |
AE101,EE10#..LHD..(STD,XL,XLI) W(TACHOMETER) |
1 | ||
| 83133-1H150 |
AE101,CE100,EE10#..LHD..(STD,XL,XLI) |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-1A150 |
AE101,CE100,EE10#..LHD..(STD,XL,XLI) |
1 | ||
| 83138-1A170 |
AE101,EE10#..LHD..(STD,XL,XLI) W(TACHOMETER) |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
AE10#,EE10#..4FC,5F |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-1H170 |
EE10#..LHD..(STD,XL,XLI) W(TACHOMETER) |
1 | ||
| 83243-1H510 |
EE100 |
1 | ||
| 83243-1H511 |
EE100 |
1 | ||
| 83243-1H171 |
EE10#..LHD..(STD,XL,XLI) W(TACHOMETER) |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1E150 |
AE101,EE10#..LHD..(STD,XL,XLI) |
1 | ||
| 83244-1E050 |
EE100 W(TACHOMETER) |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83149-12050 |
AE101,EE10#..LHD..(STD,XL,XLI) |
1 | ||
| 83247-1H690 |
AE101,EE10#..LHD..(STD,XL,XLI) W(TACHOMETER) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12470 |
AE10#,CE100,EE10#..LHD |
1 | ||
| Common parts | ||||
| 90099-00211 | ||||
| 90099-00225 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||
| 96711-24018 | ||||
| 96711-24030 | ||||

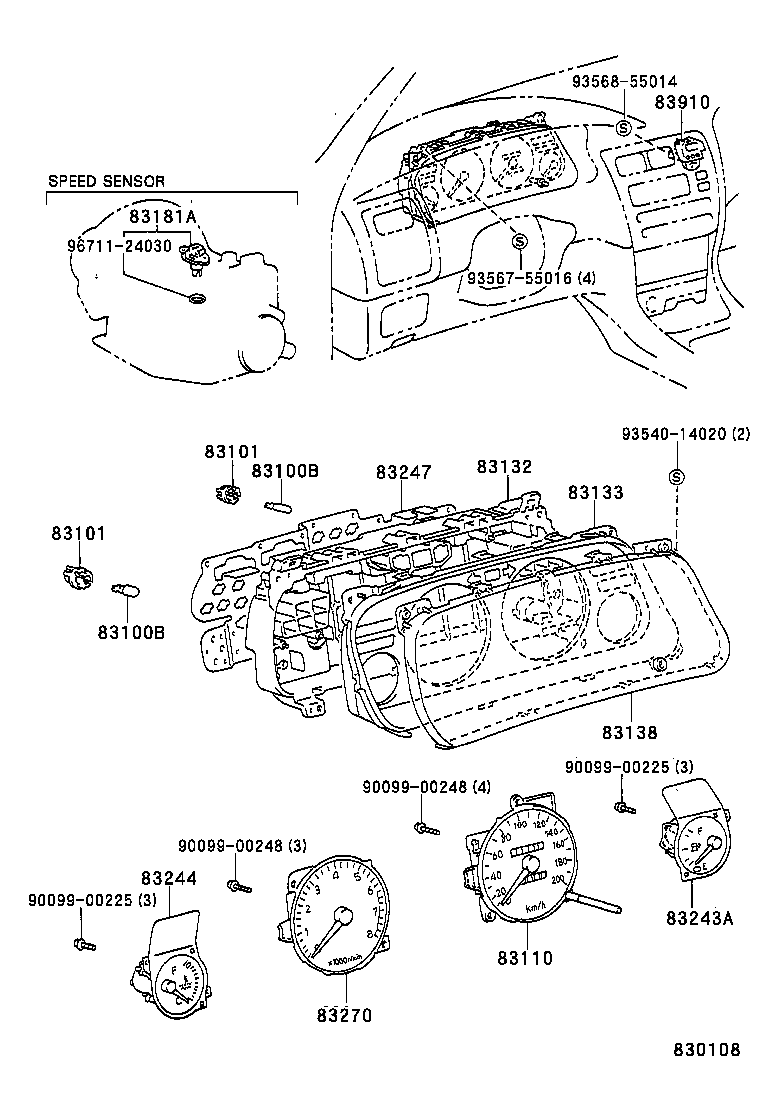

(9205- )AE101,EE10#..LHD
W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-12030 |
AE10#,CE100,EE10# 12V 3.4W,BLUE CAP |
1 | ||
| 90981-11018 |
AE10#,CE100,EE10# 12V 1.2W W/O SOCKET |
1 | ||
| 99132-12034 |
AE10#,CE100,EE10# 12V 3.4W |
1 | ||
| 83119-32010 |
AE10#,EE100..GTI,XL,XLI;CE100,EE101..LHD..(STD,XL,XLI) 14V 3.0W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-12030 |
AE10#,CE100,EE10# 12V 3.4W,BLUE CAP |
1 | ||
| 90981-11018 |
AE10#,CE100,EE10# 12V 1.2W W/O SOCKET |
1 | ||
| 99132-12034 |
AE10#,CE100,EE10# 12V 3.4W |
1 | ||
| 83119-32010 |
AE10#,EE100..GTI,XL,XLI;CE100,EE101..LHD..(STD,XL,XLI) 14V 3.0W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EE101..3D;EE101..LB;AE101..LB..GLI;EE101..HB..5D..5F;EE101..5D..LHD..3FC;AE101..HB..LHD..5F..GLI;AE10#,CE100,EE100..GTI,SI,STD,XL,XLI 12V 1.4W |
1 | ||
| 83101-32020 |
AE101,CE100,EE10#..LHD..(STD,XL,XLI) 14V 3.0W |
1 | ||
| 83101-14030 |
EE101..3D;EE101..LB;AE101..LB..GLI;EE101..HB..5D..5F;EE101..5D..LHD..3FC;AE101..HB..LHD..5F..GLI;AE10#,CE100,EE100..GTI,SI,STD,XL,XLI 12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EE101..3D;EE101..LB;AE101..LB..GLI;EE101..HB..5D..5F;EE101..5D..LHD..3FC;AE101..HB..LHD..5F..GLI;AE10#,CE100,EE100..GTI,SI,STD,XL,XLI 12V 1.4W |
1 | ||
| 83101-32020 |
AE101,CE100,EE10#..LHD..(STD,XL,XLI) 14V 3.0W |
1 | ||
| 83101-14030 |
EE101..3D;EE101..LB;AE101..LB..GLI;EE101..HB..5D..5F;EE101..5D..LHD..3FC;AE101..HB..LHD..5F..GLI;AE10#,CE100,EE100..GTI,SI,STD,XL,XLI 12V 3.4W |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1H120 |
EE100 W(TACHOMETER) |
1 | ||
| 83110-1H050 |
CE100,EE100..LHD |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1A630 |
AE101,EE10#..LHD..(STD,XL,XLI) W(TACHOMETER) |
1 | ||
| 83132-1A610 |
AE101,CE100,EE10#..LHD..(STD,XL,XLI) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1H170 |
AE101,EE10#..LHD..(STD,XL,XLI) W(TACHOMETER) |
1 | ||
| 83133-1H150 |
AE101,CE100,EE10#..LHD..(STD,XL,XLI) |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-1A150 |
AE101,CE100,EE10#..LHD..(STD,XL,XLI) |
1 | ||
| 83138-1A170 |
AE101,EE10#..LHD..(STD,XL,XLI) W(TACHOMETER) |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
AE10#,EE10#..4FC,5F |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-1H170 |
EE10#..LHD..(STD,XL,XLI) W(TACHOMETER) |
1 | ||
| 83243-1H510 |
EE100 |
1 | ||
| 83243-1H511 |
EE100 |
1 | ||
| 83243-1H171 |
EE10#..LHD..(STD,XL,XLI) W(TACHOMETER) |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1E150 |
AE101,EE10#..LHD..(STD,XL,XLI) |
1 | ||
| 83244-1E050 |
EE100 W(TACHOMETER) |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83149-12050 |
AE101,EE10#..LHD..(STD,XL,XLI) |
1 | ||
| 83247-1H690 |
AE101,EE10#..LHD..(STD,XL,XLI) W(TACHOMETER) |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-1E870 |
EE100 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12470 |
AE10#,CE100,EE10#..LHD |
1 | ||
| Common parts | ||||
| 90099-00225 | ||||
| 90099-00248 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||
| 96711-24030 | ||||
