EE100L-ALMDSW (1992)

Toyota Corolla Hb/Lb

Production May 1992 - May 1995
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9205-9505)LB

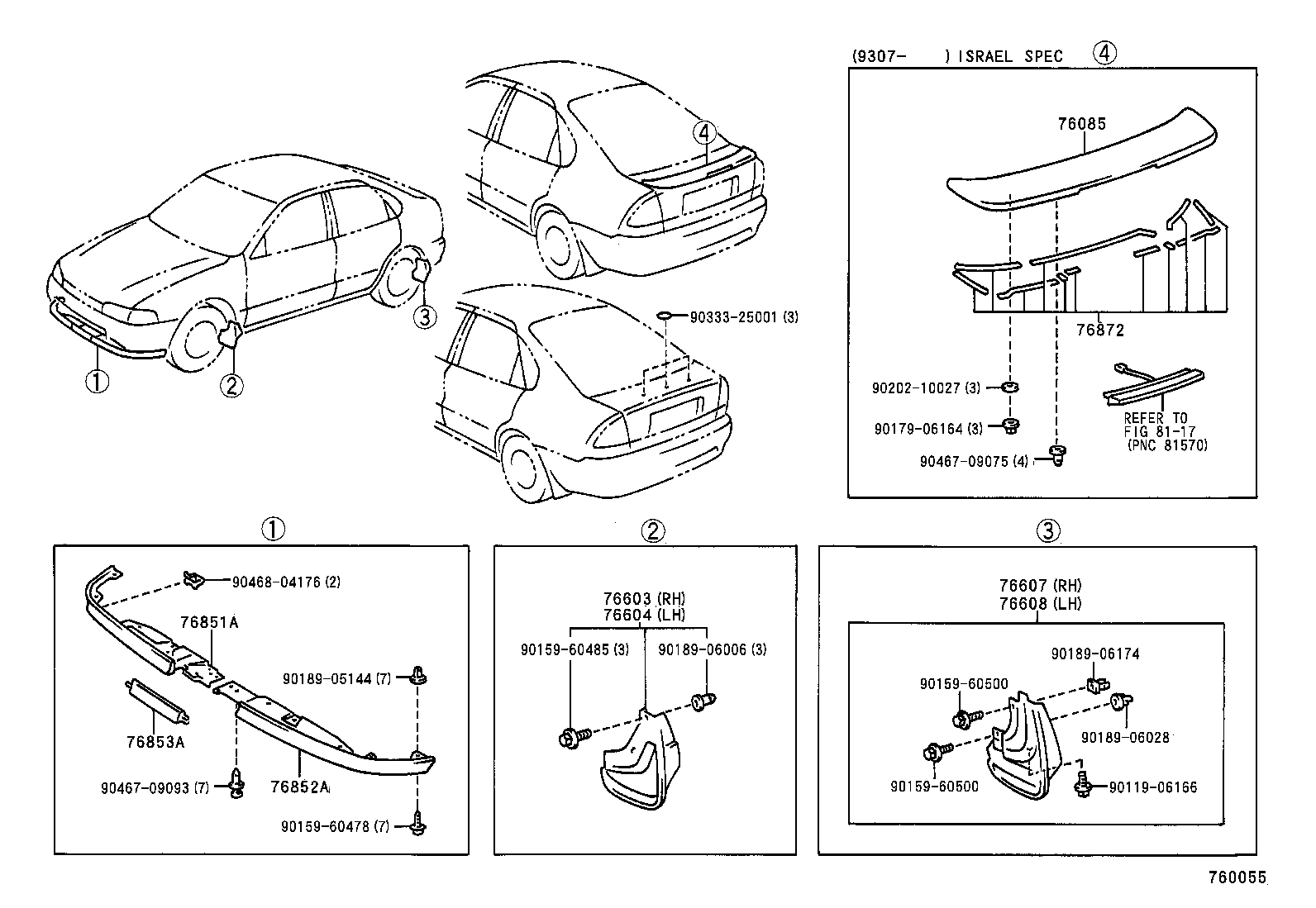

Click highlighted areas on diagram

diagram 76085 76603 76604 76607 76608 76851A 76852A 76853A 76872 8117 9011906166 9015960478 9015960485 9015960500 9015960500 9017906164 9018905144 9018906006 9018906028 9018906174 9020210027 9033325001 9046709075 9046709093 9046804176
Part # Description Qty Price
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-19215

AE101,CE100,EE10#

BLACK TYPE

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-19215

AE101,CE100,EE10#

BLACK TYPE

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-19465

AE101,CE100,EE10#..LB

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-19465

AE101,CE100,EE10#..LB

 1
Common parts
90119-06166
90159-60478
90159-60485
90159-60500
90179-06164
90189-05144
90189-06006
90189-06028
90189-06174
90202-10027
90333-25001
90467-09075
90467-09093
90468-04176
Linked diagrams
8117
