EE100L-ALMDSW (1992)
Toyota Corolla Hb/Lb
(9205- )

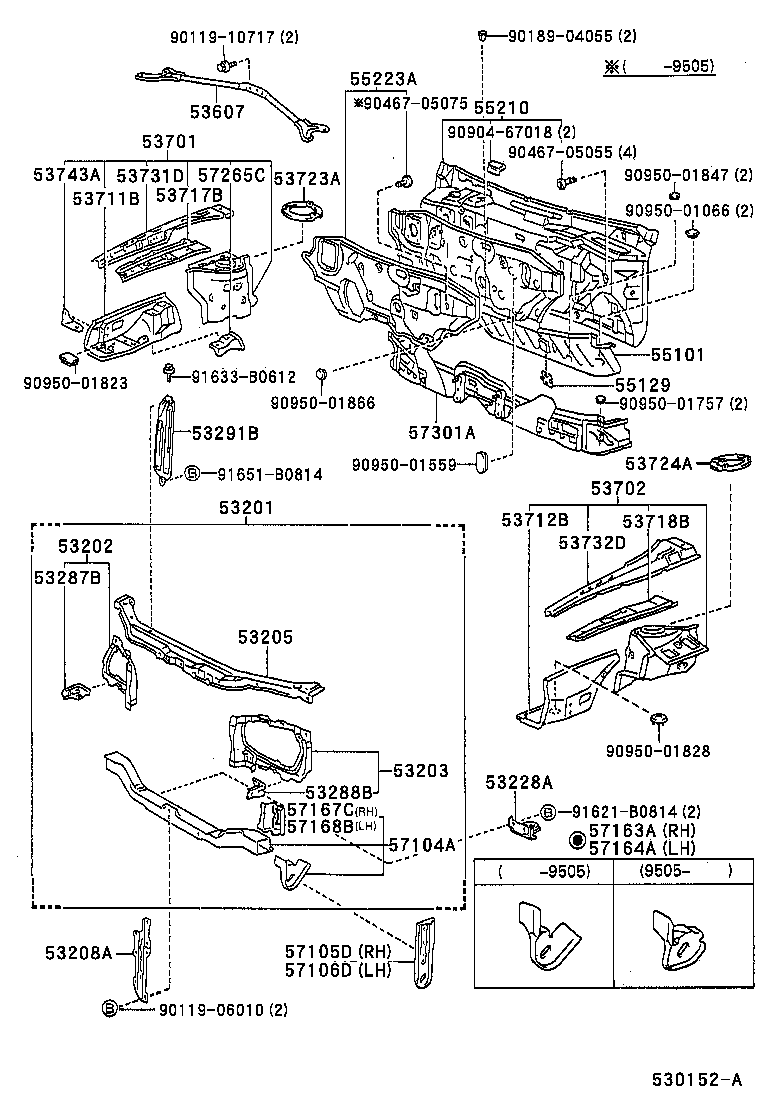

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-1A040 |
AE101,EE10#..5F |
1 | ||
| 53201-1A030 |
CE100,EE100;AE101,EE101..ATM |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-12320 |
AE10#,CE100,EE10# |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-12280 |
AE10#,CE100,EE10# |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-12100 |
AE10#,CE100,EE10# |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53215-12200 |
AE10#,CE100,EE10# |
1 | ||
| 53228A - BRACKET, RADIATOR MOUNTING, LOWER NO.1 | ||||
| 53228-12130 |
AE10#,CE100,EE10# |
1 | ||
| 53287B - EXTENSION, RADIATOR SUPPORT, RH | ||||
| 53287-12030 |
AE10#,CE100,EE10# |
1 | ||
| 53288B - EXTENSION, RADIATOR SUPPORT, LH | ||||
| 53288-12030 |
AE10#,CE100,EE10# |
1 | ||
| 53291B - PLATE, RADIATOR COVER | ||||
| 53291-12100 |
EE100;AE101,EE101..ATM |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-1A041 |
AE10#,CE100,EE10# |
1 | ||
| 53701-1A040 |
AE10#,CE100,EE10# |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-1A041 |
AE10#,CE100,EE10# |
1 | ||
| 53702-1A040 |
AE10#,CE100,EE10# |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-12220 |
AE10#,CE100,EE10# |
1 | ||
| 53711-12221 |
AE10#,CE100,EE10# |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-12181 |
AE10#,CE100,EE10# |
1 | ||
| 53712-12180 |
AE10#,CE100,EE10# |
1 | ||
| 53717B - GUSSET, FENDER APRON, RH | ||||
| 53717-12050 |
AE10#,CE100,EE10# |
1 | ||
| 53717-12051 |
AE10#,CE100,EE10# |
1 | ||
| 53718B - GUSSET, FENDER APRON, LH | ||||
| 53718-12050 |
AE10#,CE100,EE10# |
1 | ||
| 53718-12051 |
AE10#,CE100,EE10# |
1 | ||
| 53723A - REINFORCEMENT, FRONT SPRING SUPPORT, RH | ||||
| 53723-12070 |
EE100 W(ROUGH ROAD PACKAGE) |
1 | ||
| 53724A - REINFORCEMENT, FRONT SPRING SUPPORT, LH | ||||
| 53723-12070 |
EE100 W(ROUGH ROAD PACKAGE) |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-12150 |
AE10#,CE100,EE10# |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-12130 |
AE10#,CE100,EE10# |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-1E020 |
EE100 |
1 | ||
| 55129 - COVER, DASH PANEL HOLE | ||||
| 55129-12030 |
AE10#,CE100,EE10# |
2 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-12410 |
AE10#,CE100,EE10#..LHD |
1 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-12010 |
CE100,EE100;AE101,EE101..ATM PLANT M12 |
1 | ||
| 57104-12020 |
CE100,EE100;AE101,EE101..ATM PLANT A31,32,B11,K21 |
1 | ||
| 57104-12010 |
AE10#,CE100,EE10# |
1 | ||
| 57105D - PLATE SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57105-12050 |
AE10#,CE100,EE10# |
1 | ||
| 57106D - PLATE SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57106-12050 |
AE10#,CE100,EE10# |
1 | ||
| 57163A - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH | ||||
| 57163-12110 |
AE10#,CE100,EE10# |
1 | ||
| 57164A - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH | ||||
| 57164-12060 |
AE10#,CE100,EE10# |
1 | ||
| 57167C - GUSSET, FRONT CROSSMEMBER SIDE, RH | ||||
| 57167-12100 |
AE10#,CE100,EE10# |
1 | ||
| 57168B - GUSSET, FRONT CROSSMEMBER SIDE, LH | ||||
| 57168-12100 |
AE10#,CE100,EE10# |
1 | ||
| 57265C - BRACKET, ENGINE MOUNTING, RH | ||||
| 57265-12050 |
AE10#,CE100,EE10# |
1 | ||
| 57301A - MEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT | ||||
| 57301-12140 |
AE10#,CE100,EE10#..LHD |
1 | ||
| Common parts | ||||
| 90119-06010 | ||||
| 90119-10717 | ||||
| 90189-04055 | ||||
| 90467-05055 | ||||
| 90467-05075 | ||||
| 90904-67018 | ||||
| 90950-01066 | ||||
| 90950-01559 | ||||
| 90950-01757 | ||||
| 90950-01823 | ||||
| 90950-01828 | ||||
| 90950-01847 | ||||
| 90950-01866 | ||||
| 91621-B0814 | ||||
| 91633-B0612 | ||||
| 91651-B0814 | ||||
