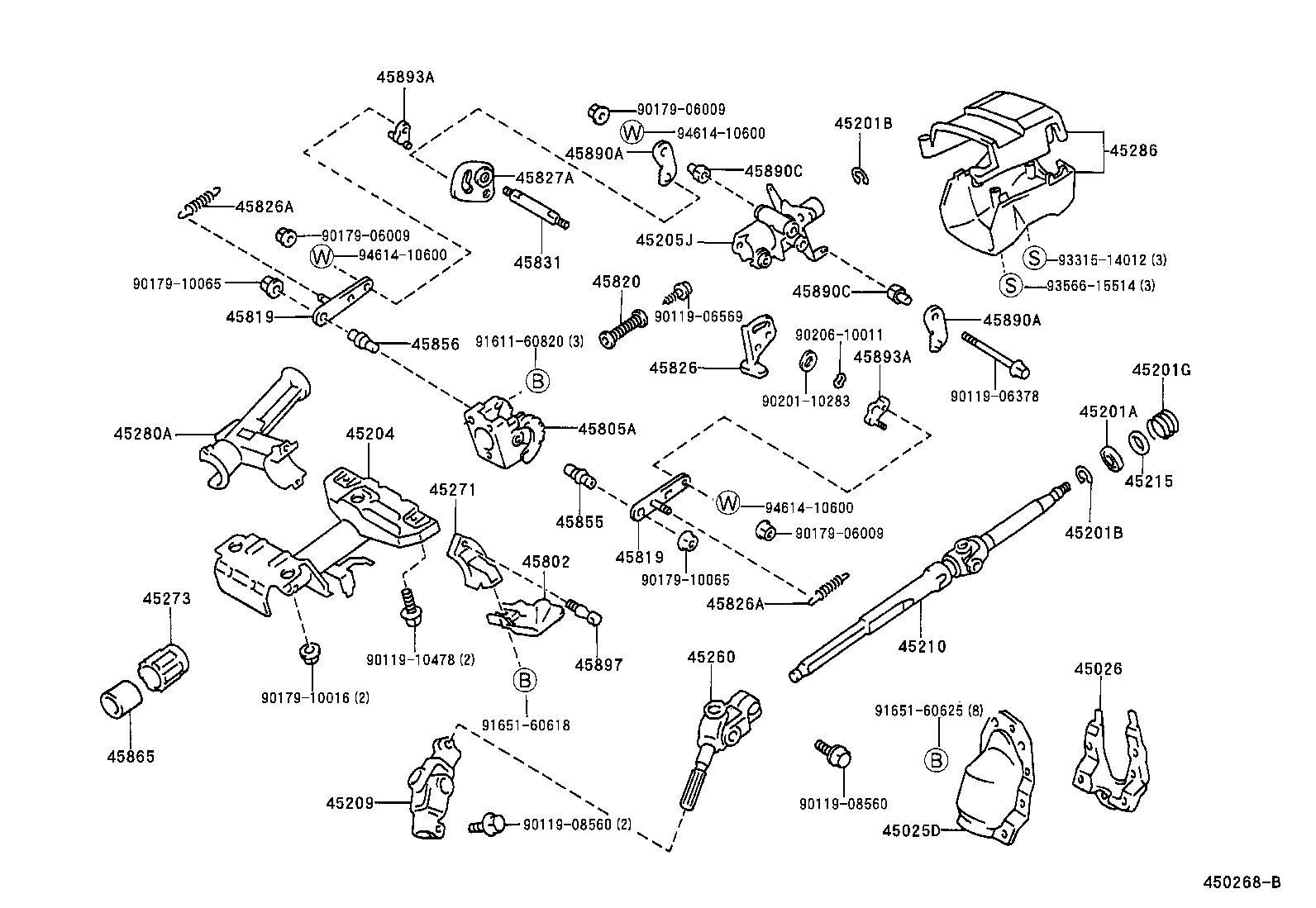

EE100L-ALMDSW (1992)
Toyota Corolla Hb/Lb
(9205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-12190 |
AE101,CE100,EE10#..LHD |
1 | ||
| 45025-12200 |
AE101,CE100,EE10#..LHD W(POWER STEERING) |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-12030 |
AE101,CE100,EE10#..LHD |
1 | ||
| 45026-12040 |
AE101,CE100,EE10#..LHD W(POWER STEERING) |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE10#,CE100,EE10# T=1.20 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE10#,CE100,EE10# T=1.20 |
2 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-12060 |
EE101..3D;EE101..LB;AE101..LB..GLI;EE101..HB..5D..5F;AE101..HB..LHD..GLI;EE101..5D..LHD..3FC;AE101,CE100,EE100..SI,STD,XL,XLI |
1 | ||
| 45209-12080 |
EE101..LB;AE101..LB..GLI;EE101..HB..5D..5F;AE101..HB..LHD..GLI;EE101..5D..LHD..3FC;EE101..3D..(GLI,XLI);AE101,CE100,EE100..SI,XL,XLI W(TILT STEERING & POWER STEERING) |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-12400 |
EE101..LB;AE101..LB..GLI;EE101..HB..5D..5F;EE101..5D..LHD..3FC;EE101..3D..(GLI,XLI);AE101..HB..LHD..5F..GLI;AE101,CE100,EE100..SI,XL,XLI W(TILT STEERING) |
1 | ||
| 45210-12460 |
AE101,CE100,EE10#..LHD |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12070 |
EE101..3D;EE101..LB;AE101..LB..GLI;EE101..HB..5D..5F;AE101..HB..LHD..GLI;EE101..5D..LHD..3FC;AE101,CE100,EE100..SI,STD,XL,XLI |
1 | ||
| 45271-12080 |
EE101..LB;AE101..LB..GLI;EE101..HB..5D..5F;EE101..5D..LHD..3FC;EE101..3D..(GLI,XLI);AE101..HB..LHD..5F..GLI;AE101,CE100,EE100..SI,XL,XLI W(TILT STEERING) |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-22020 |
AE101,CE100,EE10#..GLI,SI,XL,XLI W(TILT STEERING) |
1 | ||
| 45273-16010 |
AE101,CE100,EE10# |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-12290 |
AE101..LB..LHD;AE101..HB..LHD..5F..GLI;AE101..HB..LHD..(SI,XLI);CE100,EE10#..LHD..(GLI,XL,XLI) W(TILT STEERING) |
1 | ||
| 45280-12280 |
AE101,CE100,EE10#..LHD |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-12948P0 |
AE101,CE100,EE10#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 45286-12949W3 |
AE101,CE100,EE10#..LHD..(GLI,XL,XLI) W(TILT STEERING),DARK BLUE,TRIM8# |
1 | ||
| 45286-12949P0 |
AE101,CE100,EE10#..LHD..(GLI,SI,XL,XLI) W(TILT STEERING),SHADOW GRAY,TRIM1# |
1 | ||
| 45286-12948W3 |
AE101,CE100,EE10#..LHD..(GLI,STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 45802 - PROTECTOR SUB-ASSY, STEERING COLUMN, NO.1 | ||||
| 45874-12060 |
AE10#,CE100,EE10# |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-12310 |
AE101,CE100,EE10#..LHD |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AE10#,CE100,EE10# |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-10478 | ||||
| 90179-10016 | ||||
| 91651-60618 | ||||
| 91651-60625 | ||||
| 93315-14012 | ||||
| 93566-15514 | ||||
(9205- )
W(TILT STEERING)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-12190 |
AE101,CE100,EE10#..LHD |
1 | ||
| 45025-12200 |
AE101,CE100,EE10#..LHD W(POWER STEERING) |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-12030 |
AE101,CE100,EE10#..LHD |
1 | ||
| 45026-12040 |
AE101,CE100,EE10#..LHD W(POWER STEERING) |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18005 |
AE10#,CE100,EE10# |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE10#,CE100,EE10# T=1.20 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE10#,CE100,EE10# T=1.20 |
2 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-40017 |
AE10#,CE100,EE10# |
1 | ||
| 45204 - TUBE ASSY, STEERING COLUMN, LOWER | ||||
| 45204-12092 |
AE10#,CE100,EE10# |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-12340 |
AE101..LB..LHD;AE102,CE100,EE10#..LHD;AE101..HB..LHD..5F..GLI;AE101..HB..LHD..(SI,XLI) |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-12060 |
EE101..3D;EE101..LB;AE101..LB..GLI;EE101..HB..5D..5F;AE101..HB..LHD..GLI;EE101..5D..LHD..3FC;AE101,CE100,EE100..SI,STD,XL,XLI |
1 | ||
| 45209-12080 |
EE101..LB;AE101..LB..GLI;EE101..HB..5D..5F;AE101..HB..LHD..GLI;EE101..5D..LHD..3FC;EE101..3D..(GLI,XLI);AE101,CE100,EE100..SI,XL,XLI W(TILT STEERING & POWER STEERING) |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-12400 |
EE101..LB;AE101..LB..GLI;EE101..HB..5D..5F;EE101..5D..LHD..3FC;EE101..3D..(GLI,XLI);AE101..HB..LHD..5F..GLI;AE101,CE100,EE100..SI,XL,XLI W(TILT STEERING) |
1 | ||
| 45210-12460 |
AE101,CE100,EE10#..LHD |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-12010 |
AE10#,CE100,EE10# |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-12400 |
AE101,CE100,EE10#..LHD..(GLI,SI,XL,XLI) W(TILT STEERING) |
1 | ||
| 45260-12410 |
AE101,CE100,EE10#..LHD..(GLI,SI,XL,XLI) W(TILT STEERING & POWER STEERING) |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12070 |
EE101..3D;EE101..LB;AE101..LB..GLI;EE101..HB..5D..5F;AE101..HB..LHD..GLI;EE101..5D..LHD..3FC;AE101,CE100,EE100..SI,STD,XL,XLI |
1 | ||
| 45271-12080 |
EE101..LB;AE101..LB..GLI;EE101..HB..5D..5F;EE101..5D..LHD..3FC;EE101..3D..(GLI,XLI);AE101..HB..LHD..5F..GLI;AE101,CE100,EE100..SI,XL,XLI W(TILT STEERING) |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-22020 |
AE101,CE100,EE10#..GLI,SI,XL,XLI W(TILT STEERING) |
1 | ||
| 45273-16010 |
AE101,CE100,EE10# |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-12290 |
AE101..LB..LHD;AE101..HB..LHD..5F..GLI;AE101..HB..LHD..(SI,XLI);CE100,EE10#..LHD..(GLI,XL,XLI) W(TILT STEERING) |
1 | ||
| 45280-12280 |
AE101,CE100,EE10#..LHD |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-12948P0 |
AE101,CE100,EE10#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 45286-12949W3 |
AE101,CE100,EE10#..LHD..(GLI,XL,XLI) W(TILT STEERING),DARK BLUE,TRIM8# |
1 | ||
| 45286-12949P0 |
AE101,CE100,EE10#..LHD..(GLI,SI,XL,XLI) W(TILT STEERING),SHADOW GRAY,TRIM1# |
1 | ||
| 45286-12948W3 |
AE101,CE100,EE10#..LHD..(GLI,STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 45802 - PROTECTOR SUB-ASSY, STEERING COLUMN, NO.1 | ||||
| 45874-12060 |
AE10#,CE100,EE10# |
1 | ||
| 45805A - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45805-12010 |
AE10#,CE100,EE10# |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-12020 |
AE10#,CE100,EE10# |
2 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-12020 |
AE10#,CE100,EE10# |
2 | ||
| 45820 - SPRING ASSY, TILT STEERING SUPPORT | ||||
| 45820-12020 |
AE10#,CE100,EE10# |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-12021 |
AE101..LB..4FC;AE101..4FC..XLI;AE101..HB..RHD..4FC;AE10#,CE100,EE10#..3FC,5F |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-12029 |
AE10#,CE100,EE10# |
2 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-12029 |
AE10#,CE100,EE10# |
2 | ||
| 45827A - LEVER, STEERING TILT SUB | ||||
| 45827-12020 |
AE10#,CE100,EE10# |
1 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45831-12010 |
AE10#,CE100,EE10# |
1 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45855-12030 |
AE10#,CE100,EE10# OD=9.989-9.998 |
1 | ||
| 45855-12040 |
AE10#,CE100,EE10# OD=9.998-10.007 |
1 | ||
| 45856 - BOLT, TILT STEERING, NO.2 | ||||
| 45856-12030 |
AE10#,CE100,EE10# OD=9.989-9.998 |
1 | ||
| 45856-12040 |
AE10#,CE100,EE10# OD=9.998-10.007 |
1 | ||
| 45865 - COLLAR, STEERING MAIN SHAFT | ||||
| 45865-12060 |
AE10#,CE100,EE10# |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-12031 |
AE10#,CE100,EE10# RH |
1 | ||
| 45890-12021 |
AE10#,CE100,EE10# LH |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-12031 |
AE10#,CE100,EE10# RH |
1 | ||
| 45890-12021 |
AE10#,CE100,EE10# LH |
1 | ||
| 45890C - COLLAR(FOR TILT STEERING PAWL) | ||||
| 90389-07006 |
AE10#,CE100,EE10# MARK 3,LH |
1 | ||
| 90389-07010 |
AE10#,CE100,EE10# MARK 7,RH |
1 | ||
| 90389-07004 |
AE10#,CE100,EE10# MARK 0,LH |
1 | ||
| 90389-07005 |
AE10#,CE100,EE10# MARK 2,LH |
1 | ||
| 90389-07009 |
AE10#,CE100,EE10# MARK 6,RH |
1 | ||
| 90389-07007 |
AE10#,CE100,EE10# MARK 4,LH |
1 | ||
| 90389-07008 |
AE10#,CE100,EE10# MARK A,RH |
1 | ||
| 90389-07011 |
AE10#,CE100,EE10# MARK 8,RH |
1 | ||
| 45890C - COLLAR(FOR TILT STEERING PAWL) | ||||
| 90389-07006 |
AE10#,CE100,EE10# MARK 3,LH |
1 | ||
| 90389-07010 |
AE10#,CE100,EE10# MARK 7,RH |
1 | ||
| 90389-07004 |
AE10#,CE100,EE10# MARK 0,LH |
1 | ||
| 90389-07005 |
AE10#,CE100,EE10# MARK 2,LH |
1 | ||
| 90389-07009 |
AE10#,CE100,EE10# MARK 6,RH |
1 | ||
| 90389-07007 |
AE10#,CE100,EE10# MARK 4,LH |
1 | ||
| 90389-07008 |
AE10#,CE100,EE10# MARK A,RH |
1 | ||
| 90389-07011 |
AE10#,CE100,EE10# MARK 8,RH |
1 | ||
| 45893A - STOPPER, TILT STEERING PAWL | ||||
| 45893-12140 |
AE10#,CE100,EE10# MARK D,LH |
1 | ||
| 45893-12130 |
AE10#,CE100,EE10# MARK C,LH |
1 | ||
| 45893-12071 |
AE10#,CE100,EE10# MARK F OR 11,RH |
1 | ||
| 45893-12021 |
AE10#,CE100,EE10# MARK A,LH |
1 | ||
| 45893-12180 |
AE10#,CE100,EE10# MARK I OR 14,RH |
1 | ||
| 45893-12170 |
AE10#,CE100,EE10# MARK H OR 13,RH |
1 | ||
| 45893-12150 |
AE10#,CE100,EE10# MARK E,LH |
1 | ||
| 45893-12120 |
AE10#,CE100,EE10# MARK B,LH |
1 | ||
| 45893-12190 |
AE10#,CE100,EE10# MARK J OR 15,RH |
1 | ||
| 45893-12160 |
AE10#,CE100,EE10# MARK G OR 12,RH |
1 | ||
| 45893A - STOPPER, TILT STEERING PAWL | ||||
| 45893-12140 |
AE10#,CE100,EE10# MARK D,LH |
1 | ||
| 45893-12130 |
AE10#,CE100,EE10# MARK C,LH |
1 | ||
| 45893-12071 |
AE10#,CE100,EE10# MARK F OR 11,RH |
1 | ||
| 45893-12021 |
AE10#,CE100,EE10# MARK A,LH |
1 | ||
| 45893-12180 |
AE10#,CE100,EE10# MARK I OR 14,RH |
1 | ||
| 45893-12170 |
AE10#,CE100,EE10# MARK H OR 13,RH |
1 | ||
| 45893-12150 |
AE10#,CE100,EE10# MARK E,LH |
1 | ||
| 45893-12120 |
AE10#,CE100,EE10# MARK B,LH |
1 | ||
| 45893-12190 |
AE10#,CE100,EE10# MARK J OR 15,RH |
1 | ||
| 45893-12160 |
AE10#,CE100,EE10# MARK G OR 12,RH |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AE10#,CE100,EE10# |
2 | ||
| Common parts | ||||
| 90119-06378 | ||||
| 90119-06569 | ||||
| 90119-08560 | ||||
| 90119-10478 | ||||
| 90179-06009 | ||||
| 90179-10016 | ||||
| 90179-10065 | ||||
| 90201-10283 | ||||
| 90206-10011 | ||||
| 91611-60820 | ||||
| 91651-60618 | ||||
| 91651-60625 | ||||
| 93315-14012 | ||||
| 93566-15514 | ||||
| 94614-10600 | ||||
