EE100L-AGMDSW (1992)

Toyota Corolla Hb/Lb

Production May 1992 - May 1995
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9205- )

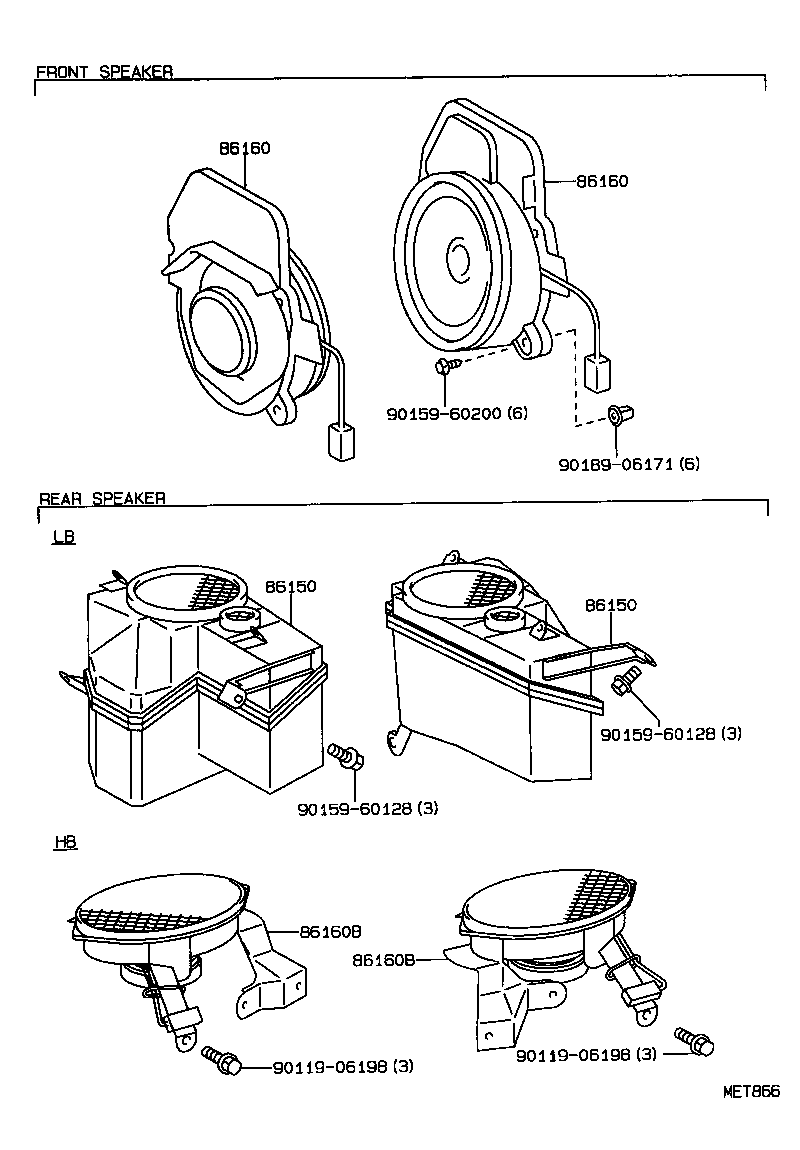

Click highlighted areas on diagram

diagram 86150 86150 86160 86160 86160B 86160B 9011906198 9011906198 9015960128 9015960128 9015960200 9018906171
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-12580

AE10#,CE100,EE10#..3D..(GLI,GTI,SI,XL,XLI)

LH

 1
86160-12570

AE10#,CE100,EE10#..3D..(GLI,GTI,SI,XL,XLI)

RH

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-12580

AE10#,CE100,EE10#..3D..(GLI,GTI,SI,XL,XLI)

LH

 1
86160-12570

AE10#,CE100,EE10#..3D..(GLI,GTI,SI,XL,XLI)

RH

 1
86160B - SPEAKER ASSY, REAR
86160-12650

AE10#,CE100,EE10#..HB..(GLI,GTI,SI,XL,XLI)

LH

 1
86160-12640

AE10#,CE100,EE10#..HB..(GLI,GTI,SI,XL,XLI)

RH

 1
86160B - SPEAKER ASSY, REAR
86160-12650

AE10#,CE100,EE10#..HB..(GLI,GTI,SI,XL,XLI)

LH

 1
86160-12640

AE10#,CE100,EE10#..HB..(GLI,GTI,SI,XL,XLI)

RH

 1
Common parts
90119-06198
90159-60128
90159-60200
90189-06171
