EE100L-AGMDSW (1992)

Toyota Corolla Hb/Lb

Production May 1992 - May 1995
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9205-9505)HB

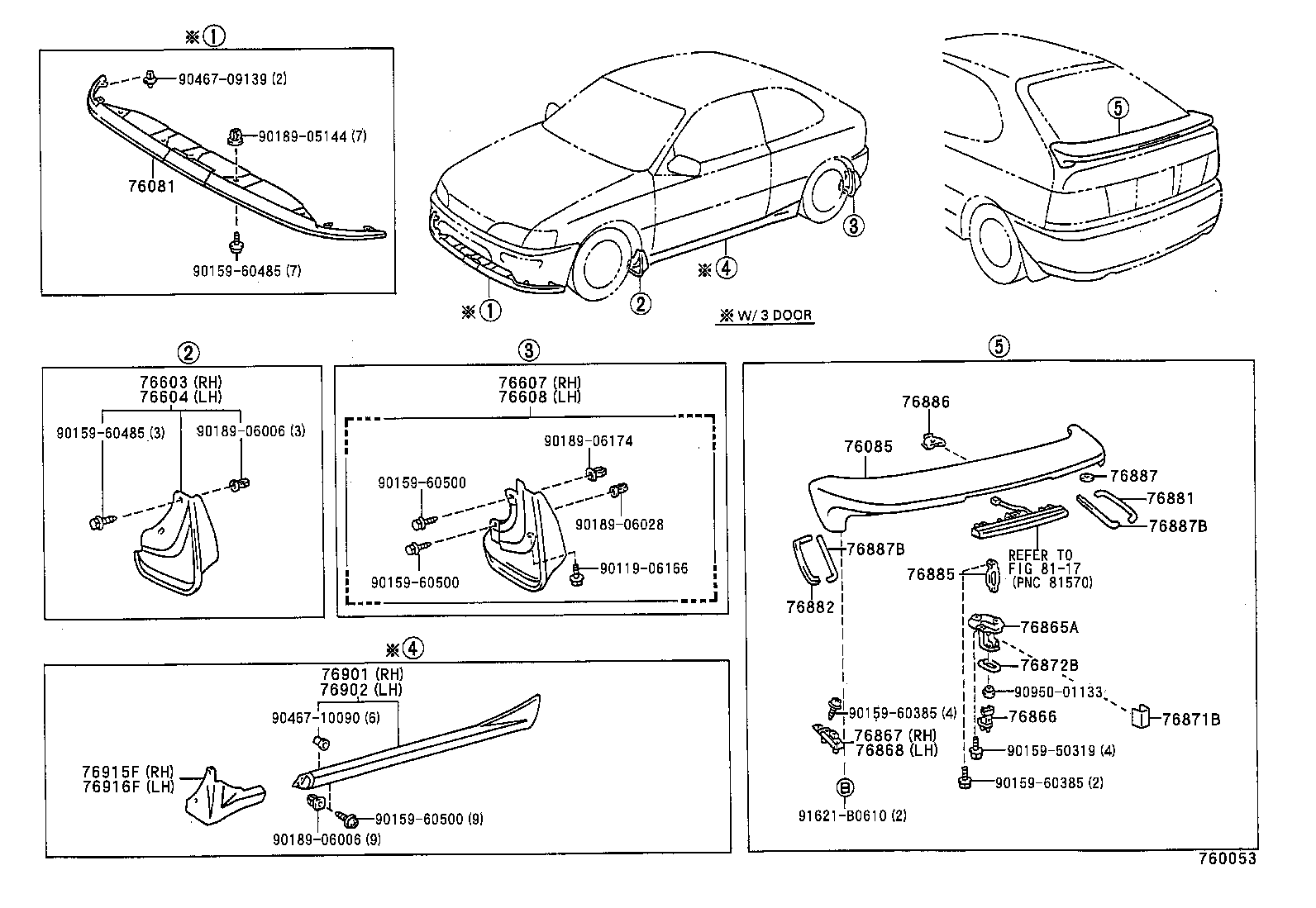

Click highlighted areas on diagram

diagram 76081 76085 76603 76604 76607 76608 76865A 76866 76867 76868 76871B 76872B 76881 76882 76885 76886 76887 76887B 76887B 76901 76902 76915F 76916F 8117 9011906166 9015950319 9015960385 9015960385 9015960485 9015960485 9015960500 9015960500 9015960500 9018905144 9018906006 9018906006 9018906028 9018906174 9046709139 9046710090 9095001133 91621B0610
Part # Description Qty Price
76085 - SPOILER SUB-ASSY, REAR
76085-12913

AE10#,CE100,EE10#..HB..(GLI,GTI,SI,XL,XLI)

 1
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-19215

AE101,CE100,EE10#

BLACK TYPE

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-19215

AE101,CE100,EE10#

BLACK TYPE

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-19445

AE101,CE100,EE10#..HB

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-19445

AE101,CE100,EE10#..HB

 1
76865A - RETAINER, SIDE MUDGUARD
76865-12900

AE10#,CE100,EE10#..HB..(GLI,GTI,SI,XL,XLI)

 1
76866 - RETAINER, REAR SPOILER, NO.2
76866-12100

AE10#,CE100,EE10#..HB..(GLI,GTI,SI,XL,XLI)

 1
76867 - RETAINER, REAR SPOILER SIDE, RH
76867-12110

AE10#,CE100,EE10#..HB..(GLI,GTI,SI,XL,XLI)

 1
76868 - RETAINER, REAR SPOILER SIDE, LH
76868-12090

AE10#,CE100,EE10#..HB..(GLI,GTI,SI,XL,XLI)

 1
76871B - COVER, REAR SPOILER
76871-12902

AE10#,CE100,EE10#..HB..(GLI,GTI,SI,XL,XLI)

 1
76872B - PROTECTOR, REAR SPOILER, CENTER
76872-12100

AE10#,CE100,EE10#..HB..(GLI,GTI,SI,XL,XLI)

 1
76881 - PROTECTOR, REAR SPOILER SIDE, NO.1 RH
76881-12030

AE10#,CE100,EE10#..HB..(GLI,GTI,SI,XL,XLI)

 1
76882 - PROTECTOR, REAR SPOILER SIDE, NO.1 LH
76882-12030

AE10#,CE100,EE10#..HB..(GLI,GTI,SI,XL,XLI)

 1
76885 - RETAINER, REAR SPOILER, NO.5
76885-12060

AE10#,CE100,EE10#..HB..(GLI,GTI,SI,XL,XLI)

 1
76886 - RETAINER, REAR SPOILER, NO.6
76886-12050

AE10#,CE100,EE10#..HB..(GLI,GTI,SI,XL,XLI)

 1
76887 - SEAL, REAR SPOILER
90540-12008

AE10#,CE100,EE10#..HB..(GLI,GTI,SI,XL,XLI)

 2
76887-21010

AE10#,CE100,EE10#..HB..(GLI,GTI,SI,XL,XLI)

 2
76887B - PROTECTOR, REAR SPOILER SIDE, NO.2
76887-12030

AE10#,CE100,EE10#..HB..(GLI,GTI,SI,XL,XLI)

 2
76887B - PROTECTOR, REAR SPOILER SIDE, NO.2
76887-12030

AE10#,CE100,EE10#..HB..(GLI,GTI,SI,XL,XLI)

 2
Common parts
90119-06166
90159-50319
90159-60385
90159-60485
90159-60500
90189-05144
90189-06006
90189-06028
90189-06174
90467-09139
90467-10090
90950-01133
91621-B0610
Linked diagrams
8117
