EE100L-AGMDSW (1992)

Toyota Corolla Hb/Lb

Production May 1992 - May 1995
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9205- )3D

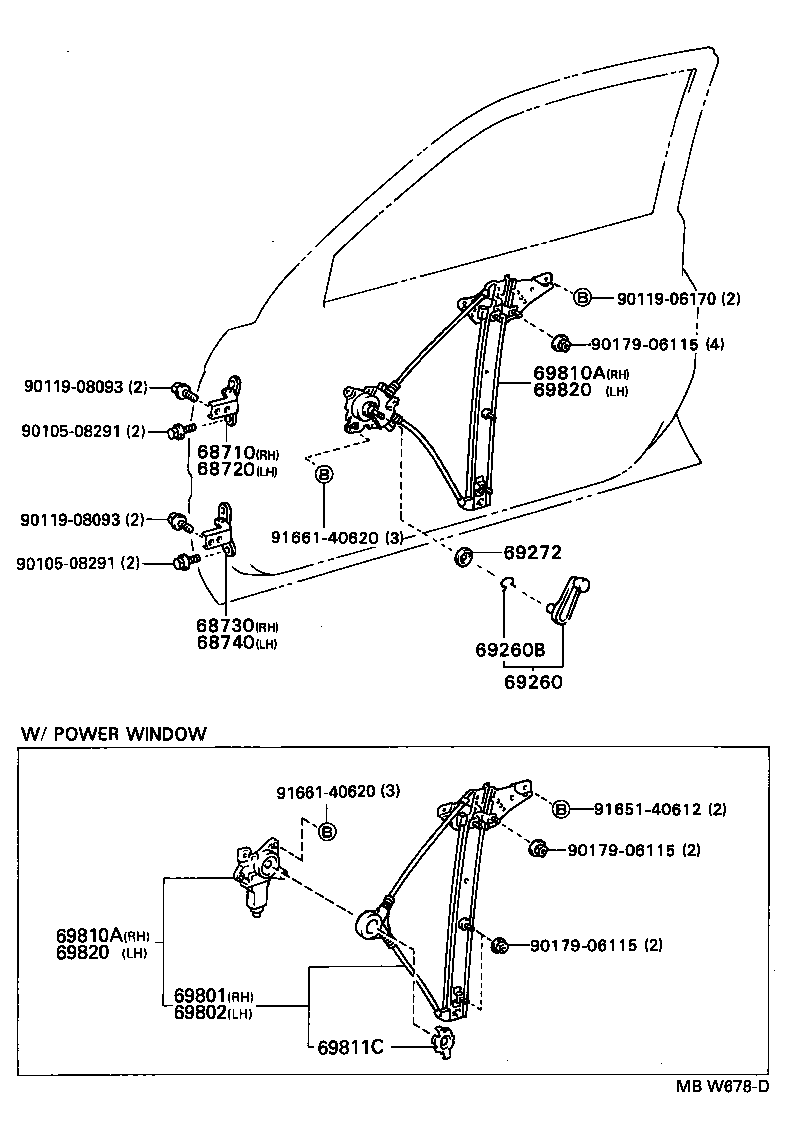

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260B 69272 69801 69802 69810A 69810A 69811C 69820 69820 9010508291 9010508291 9011906170 9011908093 9011908093 9017906115 9017906115 9017906115 9165140612 9166140620 9166140620
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-12130

AE10#,CE100,EE10#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-12130

AE10#,CE100,EE10#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-12090

AE10#,CE100,EE10#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-12090

AE10#,CE100,EE10#

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-14030J0

AE101,CE100,EE10#..3D..(GLI,STD,XL,XLI)

DARK BLUE,TRIM8#

 2
69260-1403053

AE10#,CE100,EE10#..3D

SHADOW GRAY,TRIM1#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01274

AE10#,CE100,EE10#..3D

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69268-20020

AE10#,CE100,EE10#..3D

 2
69810A - REGULATOR ASSY, FRONT DOOR WINDOW, RH
69810-12450

AE10#,CE100,EE10#..3D..(GLI,GTI,SI,XL,XLI)

 1
69810A - REGULATOR ASSY, FRONT DOOR WINDOW, RH
69810-12450

AE10#,CE100,EE10#..3D..(GLI,GTI,SI,XL,XLI)

 1
69820 - REGULATOR ASSY, FRONT DOOR WINDOW, LH
69820-12450

AE10#,CE100,EE10#..3D..(GLI,GTI,SI,XL,XLI)

 1
69820 - REGULATOR ASSY, FRONT DOOR WINDOW, LH
69820-12450

AE10#,CE100,EE10#..3D..(GLI,GTI,SI,XL,XLI)

 1
Common parts
90105-08291
90119-06170
90119-08093
90179-06115
91651-40612
91661-40620
